Rippa · Skid Steers

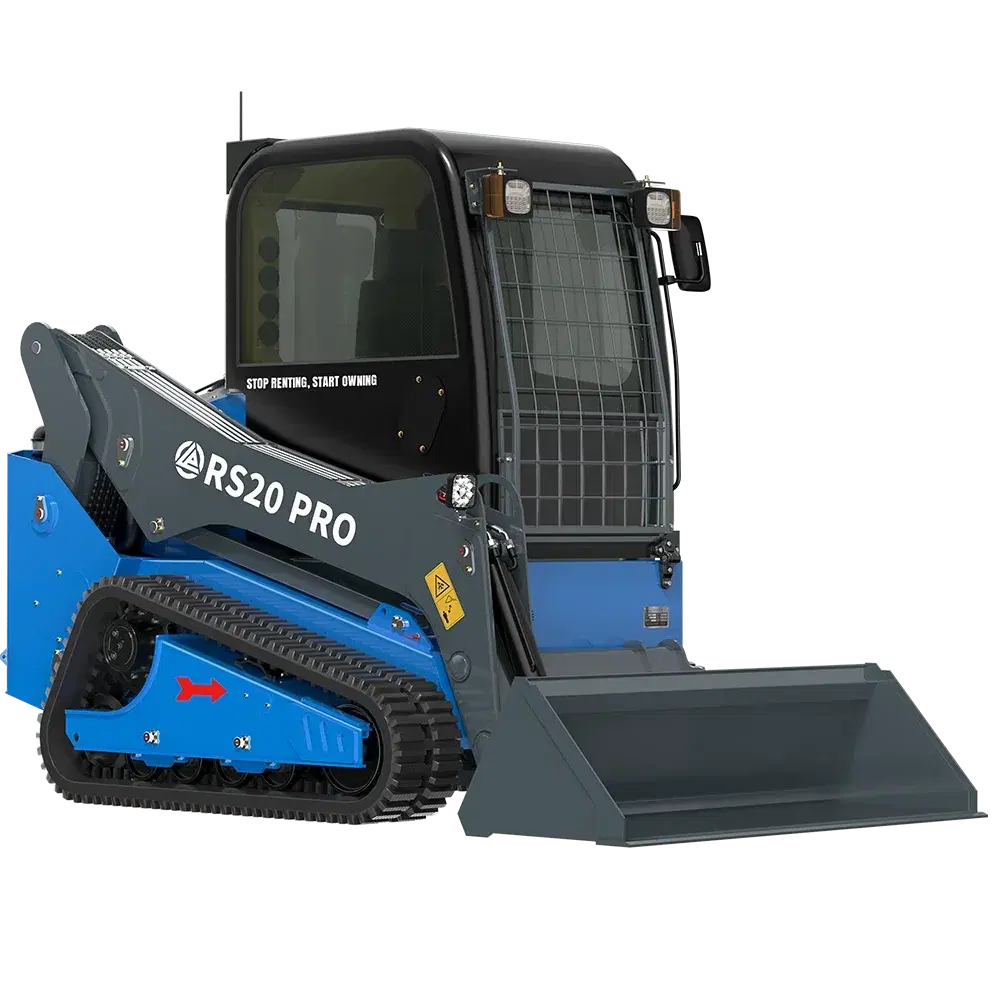

Skid Steer RS20
The advantages of RIPPA RS20 skid loader in performance, comfort, ease of use, versatility and brand advantages help attract potential customers in export trade.
All new units come with a Rippa 12-month parts warranty.
Specifications
Performance
- Machine working weight
- 4225kg / 9295lb
- Bucket capacity
- 0.4m³ / 14.1ft³
- Rated load mass(safe load)
- 1050kg / 2310lb
- Maximum load mass
- 2100kg / 4620lb
- Travel speed low/high speed
- 0-5/0-10km/h / 0-3.1/0-6.2mph
- Gradeability
- 25%
- Ground pressure
- 52.16kpa / 7.57psi
- Maximum unloading height
- 2250mm / 88.6in
- Maximum loading height
- 3750mm / 147.6in
- Maximum unloading distance
- 1360mm / 53.5in
- Minimum ground clearance
- 230mm / 9.1in
- Transport length-with bucket
- 3820mm / 150.4in
- Transport length-without bucket
- 3040mm / 119.7in
- Transport width
- 1850mm / 72.8in
- Transport height
- 2460mm / 96.9in
- Bucket width
- 1850mm / 72.8in
- Travel pump type
- double closed pump
- Fuel charge pump type
- closed pump with built-in gear pump
- Working pump type
- plunger pump
- Work Pressure
- 3045.8psi / 21MPa
Engine
- Engine brand
- Yanmar
- Engine model
- 4TNV98C-PLYS
- Maximum horsepower(ps/hp)
- 67.9/66.7
- Maximum power
- 49.9
- Maximum speed(rpm)
- 2400
- Displacement (L)
- 3.319
- Number of cylinders
- 4
- Cooling method
- Water cooling+air cooling
Features & Highlights

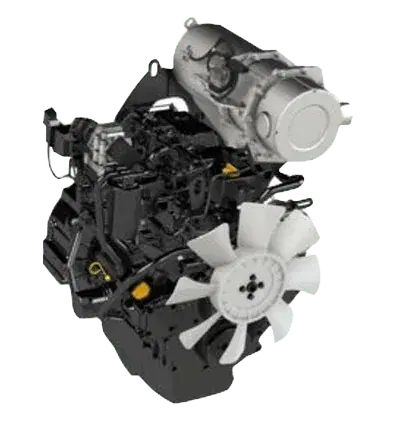

Energy-efficient engine
Equipped with a high-power engine, it increases the flow of the whole machine and meets various operational needs. The engine has ultra-low emissions and high fuel efficiency, which is energy-saving and efficient. The dual-speed motor can reach a maximum speed of 9km/h, which can quickly respond to emergency work needs.

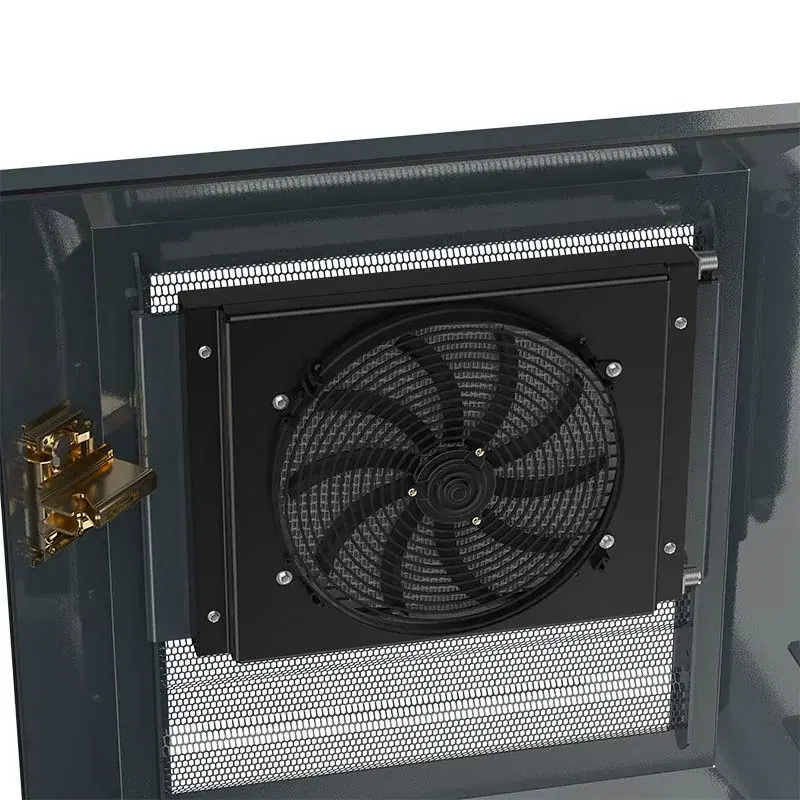

Double row fan
The RS20 skid loader double-row fan has core selling points such as efficient heat dissipation, energy saving and environmental protection, and intelligent control. Its double-row fan design increases the heat dissipation area, ensuring that the equipment remains low temperature during high-intensity work and prolongs its service life. The fan speed is adjustable to adapt to a variety of working environments, and the intelligent start-stop function is used to effectively reduce energy consumption.

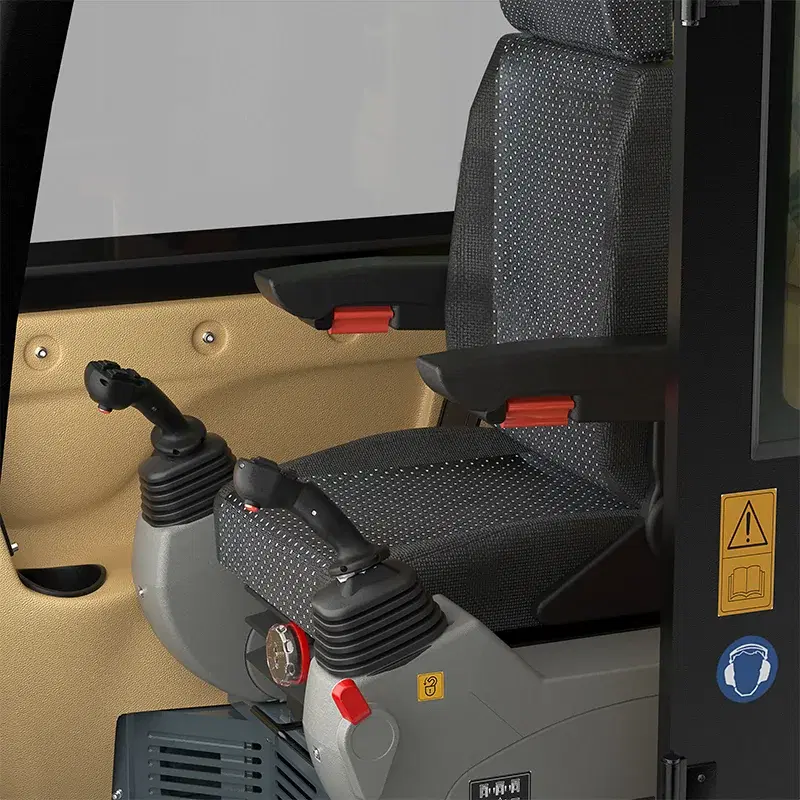

Comfortable opperating environment
RIPPA skid steer loader introduces the concept of "functional area" and isdesigned based on user operating comfort. Luxurious adjustable seats withshock absorption and seat belts, and ergonomically controlled electroniccontrol handles give drivers a different driving experience. The rockerswitch of the whole machine is integrated on the left column of the cab.Some commonly used hom and accessory control switches (such as planercylinder control switches) are integrated on the left and right joysticks(optional).
Multipurpose Tool Carrier
The advantages of the RIPPA RS20 skid steer loader in terms of performance, comfort, ease of maintenance, versatility and brand strength help attract potential customers in the export trade.
