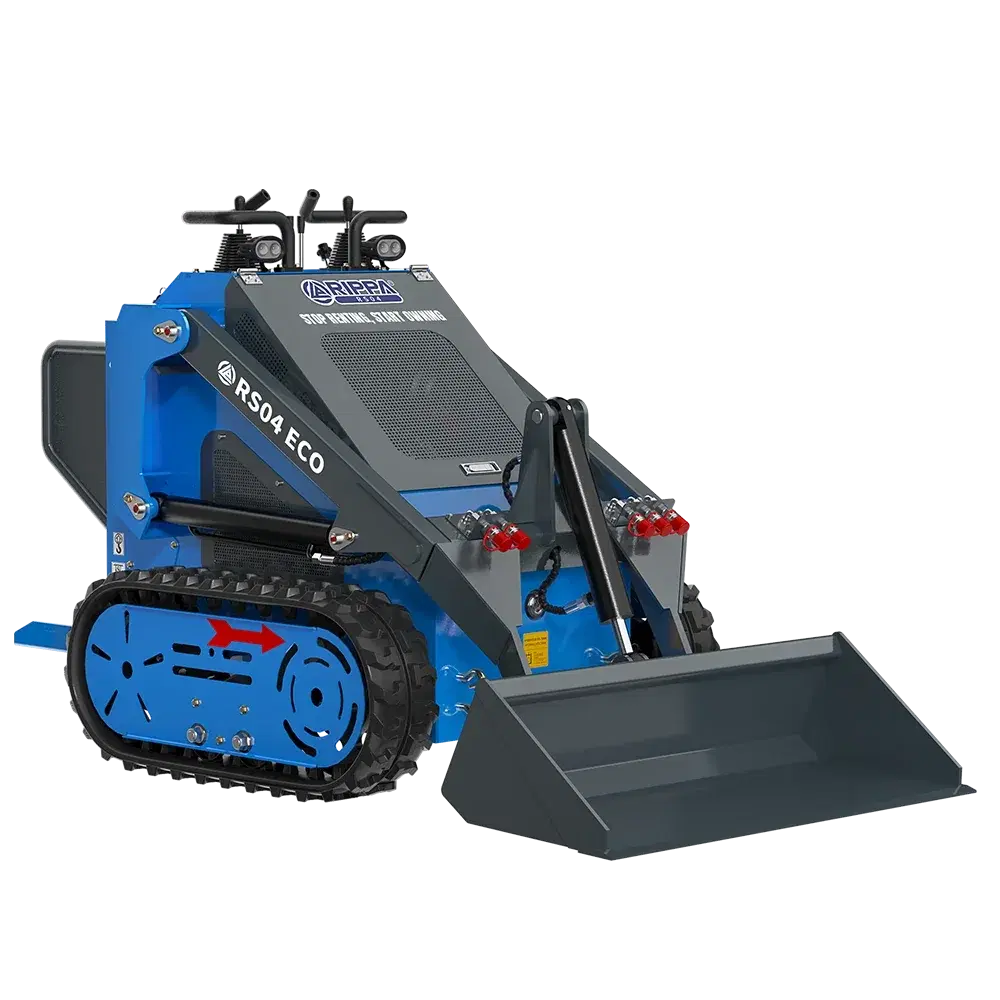

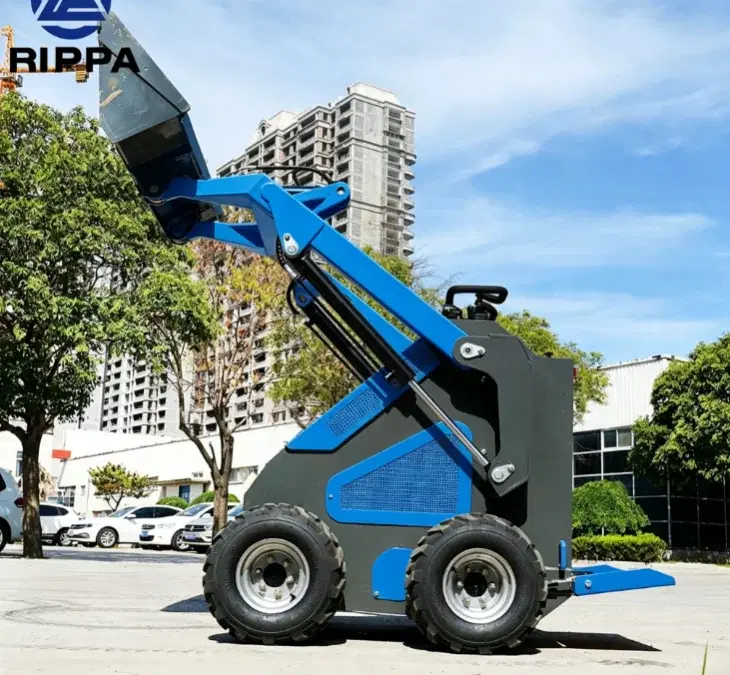

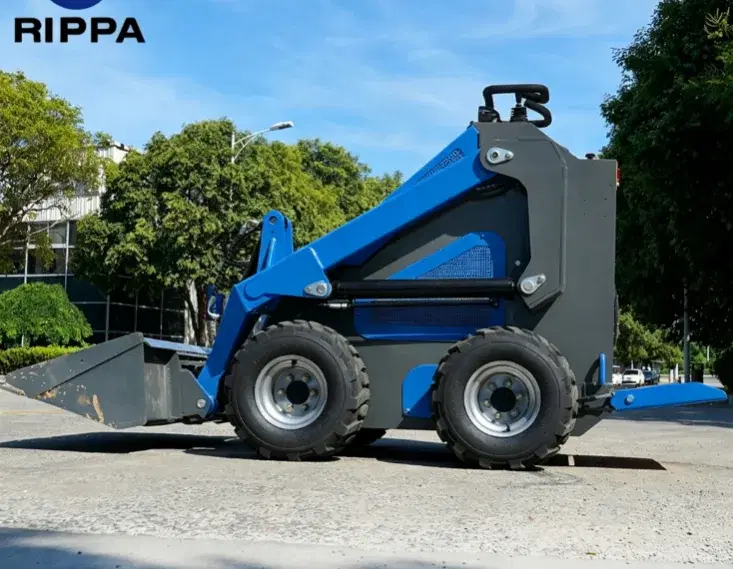

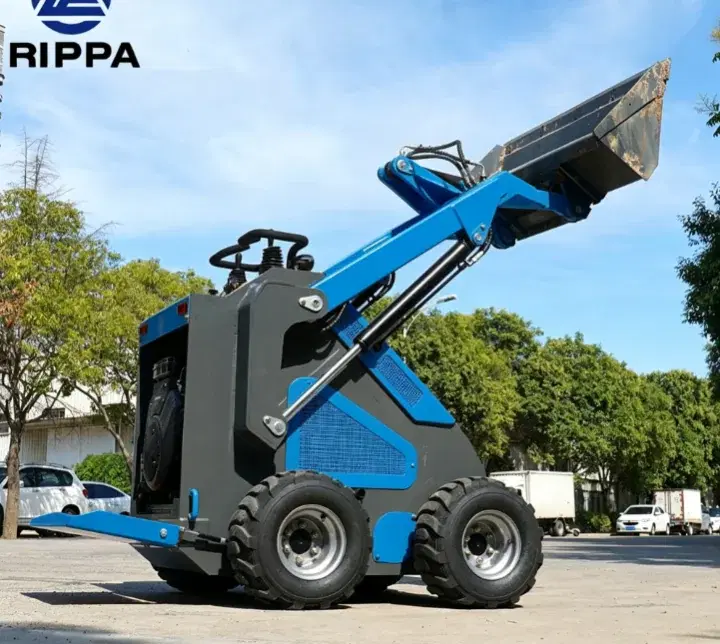

Skid Steer RS04
RS04 skid steer loader has significant advantages in the skid steer loader market with its core selling points such as versatility, compact design, strong power, safety design, efficient maintenance, and all-round operation, which can meet the needs of various projects and operations.
All new units come with a Rippa 12-month parts warranty.
Specifications
Engine
- Engine brand
- Kubota
- Engine model
- Z482
- Maximum horsepower
- 11.1hp / 11.29ps
- Maximum power
- 8.3kw
- Maximum speed
- 3600rpm
- Displacement
- 0.13gal / 0.479L
- Number of cylinders
- 2
- Cooling method
- water cooling
- Engine oil change amount
- 0.66gal / 2.5L
- Fuel form
- dieselfuel
- Theoretical fuel consumption
- 0.21-0.32gal / 0.8-1.2
Performance
- Machine working weight
- 890kg / 1958lb
- Bucket capacity
- 0.15m³ / 5.3ft³
- Rated load mass (safe load)
- 175kg / 385lb
- Maximum load mass
- 400kg / 8801b
- Travel speed low/high speed
- 0-2.5km/h / 0-1.86mph
- Gradeability
- 25%
- Ground pressure
- 25.17kpa / 3.7psi
- Maximum unloading height
- 1553mm / 61.1in
- Maximum loading height
- 2080mm / 81.9in
- Maximum unloading distance
- 550mm / 21.7in
- Minimum ground clearance
- 108mm / 4.3in
Dimensions
- Transport length-with bucket
- 1970mm / 77.6in
- Transport length-without bucket
- 1520mm / 59.8in
- Transport width
- 1150mm / 45.3in
- Transport height
- 1300mm / 51.2in
- Bucket width
- 1150mm / 45.3in
Hydraulic system
- Main pump type/model
- GearPumpPGP64422H92
- Main pump brand
- TianjinWalk
- Multi-way valve brand
- Tengfei
- Travel hydraulic motor type
- DestonBM5-315
- Travel motor brand
- Deston
Features & Highlights

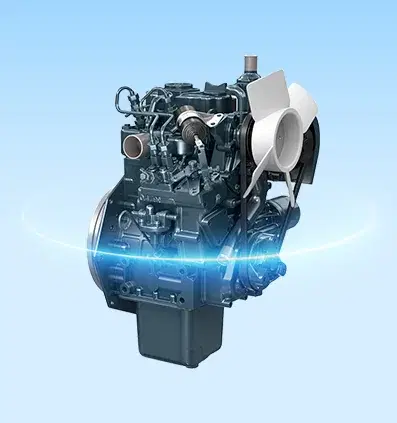

Energy-efficient engine
The engine adopts well-known brands such as Kubota, providing a compact and powerful power design, while maintaining low fuel consumption, low vibration and low noise, achieving a high level of environmental protection. The standard speed mode adjustment function can automatically adjust the engine speed according to the working mode through simple operation, improving the humanization and flexibility of the operation.

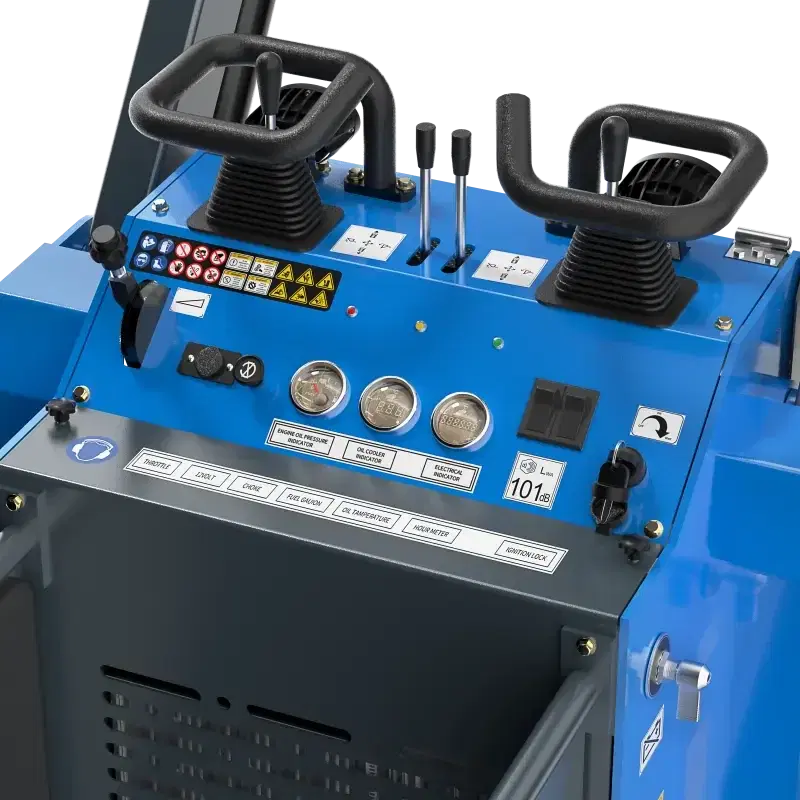

Convenient operation design
Equipped with a single-lever operating handle, it can easily achieve forward, backward, turn and other actions, with high and low speed functions, easy to operate. It provides a safe and all-round operating experience to ensure the safety of operators in different working scenarios.

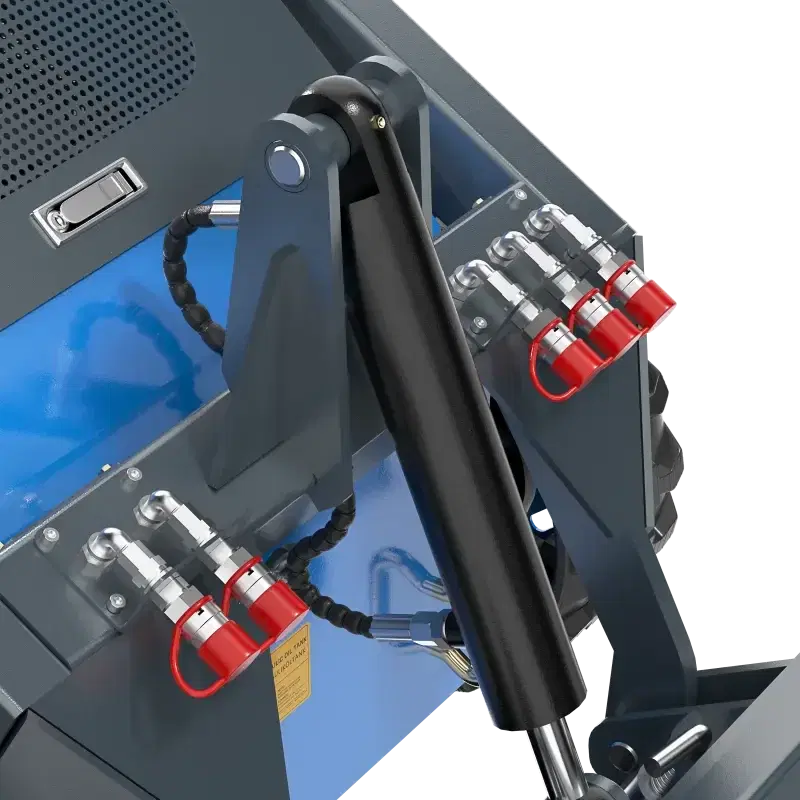

Quick change device
The skid steer loader is equipped with a quick-change device, which enables convenient and efficient replacement of auxiliary equipment, greatly improving operational flexibility and work efficiency.
Multipurpose Tool Carrier
The RS04 skid steer loader has significant advantages in the skid steer loader market with its core selling points such as versatility, compact design, powerful power, safety design, efficient maintenance and all-round operation, and can meet the needs of various projects and operations.
Contact Us Today
Interested in the Skid Steer RS04? Send us a message and we'll get back to you with pricing, availability and finance options.
