Rippa · Skid Steers

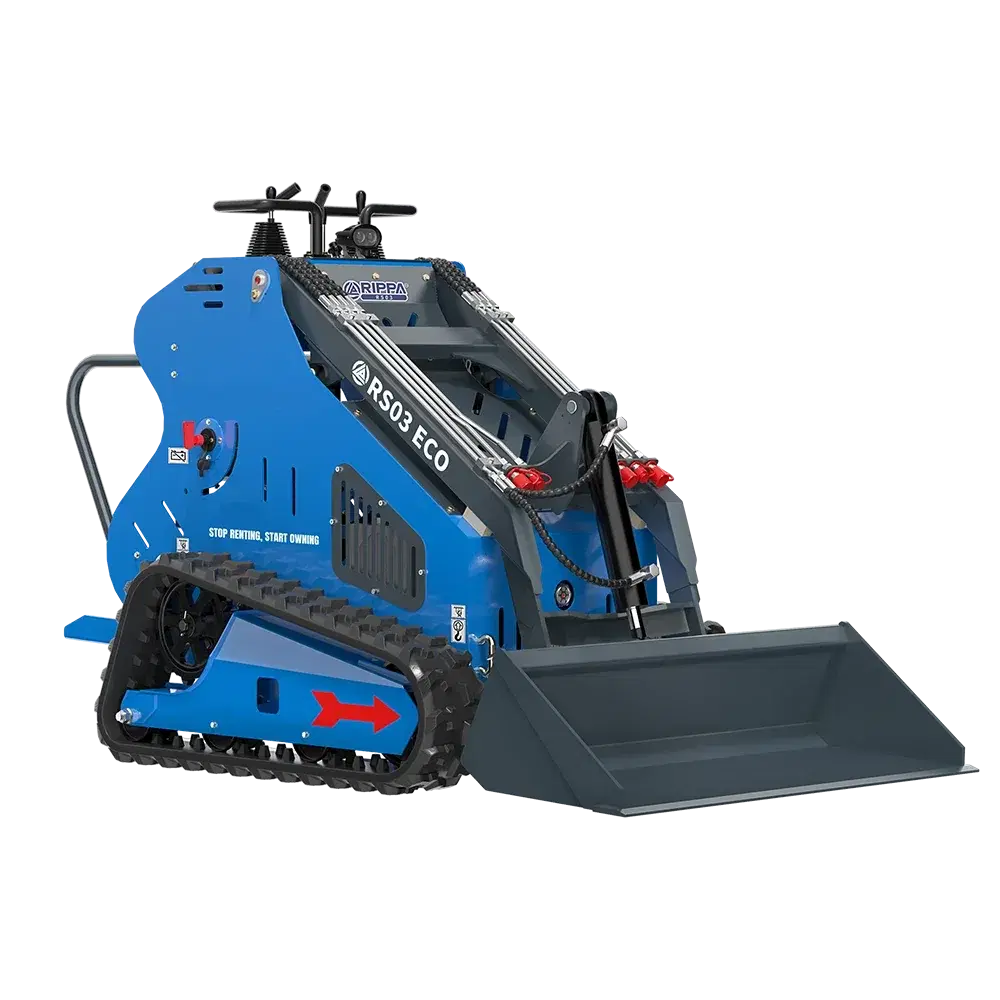

Skid Steer RS03
RIPPA RS03 skid loader has excellent performance, efficient design, diverse feature selection, and strong brand advantages, making it an ideal choice for export trade.
All new units come with a Rippa 12-month parts warranty.
Specifications
Engine
- Engine brand
- B&S
- Engine model
- XR2100
- Maximum horsepower
- 13.6ps / 13.4hp
- Maximum power
- 10kw
- Maximum speed
- 3600rpm
- Displacement
- 0.42L / 0.11gal
- Cooling method
- Air-cooled
- Engine oil change amount
- 1.2L / 0.317gal
- Fuel form
- Gasoline
- Fuel grade
- 92#
- Theoretical fuel consumption
- 0.8-1.2L/h / 0.211-0.317gal
Performance
- Machine working weight
- 725kg / 1595lb
- Bucket capacity
- 0.15m* / 5.3ft
- Rated load mass (safe load)
- 140kg / 308lb
- Maximum load mass
- 280kg / 616lb
- Travel speed low/high speed
- 0-2.5Km/h / 0-1.55mph
- Gradeability
- 25%
- Ground pressure
- 22.5Kpa / 5058psi
- Maximum unloading height
- 1553mm / 61.1in
- Maximum loading height
- 2259mm / 88.9in
- Maximum unloading distance
- 620mm / 24.4in
- Minimum ground clearance
- 129mm / 5.1in
Dimensions
- Transport length-with bucket
- 2100mm / 82.7in
- Transport length-without bucket
- 1638mm / 54.5in
- Transport width
- 1150mm / 45.3in
- Transport height
- 1361mm / 53.6in
- Bucket width
- 1150mm / 45.3in
Hydraulic system
- Main pump type/model
- GearpumpPGP51044SLP
- Main pump brand
- Tianjin Walking
- Multi-way valve brand
- Tengfei
- Travel hydraulic motor type
- LukoBM5-250
- Travel motor brand
- Luko
Features & Highlights

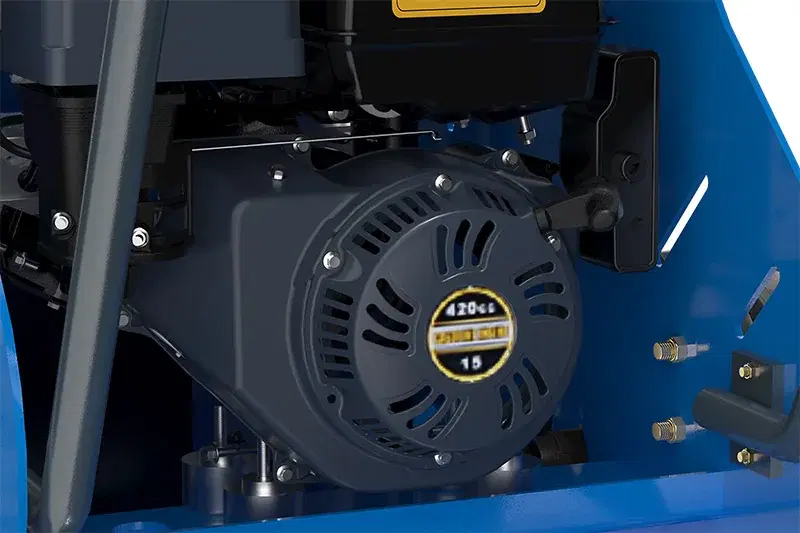

Energy-efficient engine
The design has a compact structureand powerful performance. Theengine adopts B&S XR2100, whichhas low fuel consumption, smal!vibration and low noise, and hasreached a high level of environmenta!consideration.

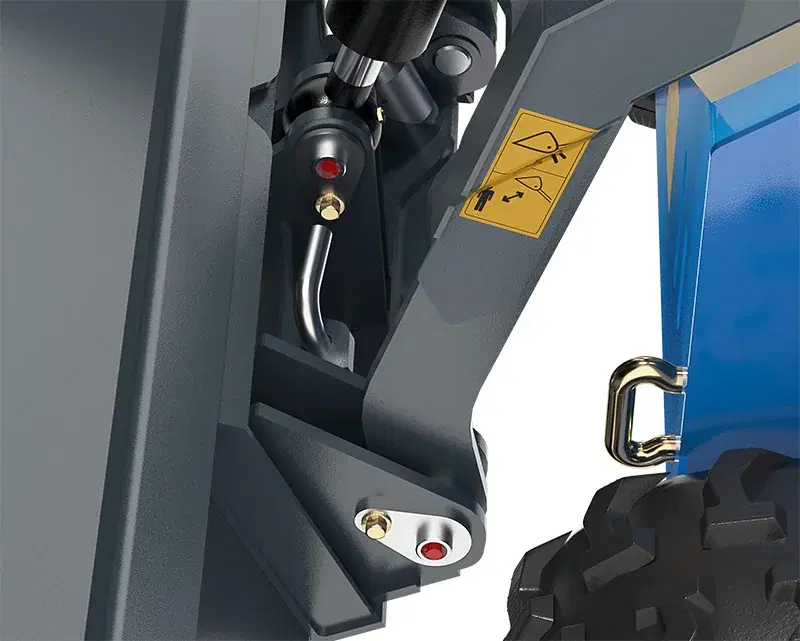

Quick change device
The RS03 quick-change device adopts an industry-wide interface design and is easy to operate. It can complete the replacement of various auxiliary equipment in a short time, significantly improving equipment adaptability and operating efficiency.

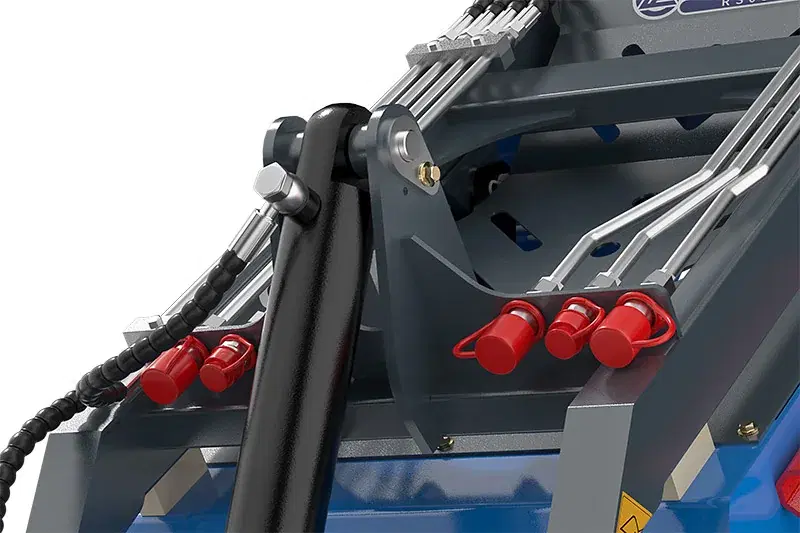

Oil pipe quick connector
The use of durable high-strength materials ensures its reliability and service life under extreme working conditions. The excellent sealing design prevents hydraulic oil leakage and has low maintenance costs. It is simple to install and easy to operate, suitable for a variety of working conditions. It can provide stable hydraulic power transmission, which is an important guarantee for construction efficiency and safety.
Multipurpose Tool Carrier
RIPPA RS03 skid steer loader is an ideal choice for export trade with its excellent performance, efficient operation design, diverse attachment selection and strong brand strength.
Contact Us Today
Interested in the Skid Steer RS03? Send us a message and we'll get back to you with pricing, availability and finance options.
