Rippa · Skid Steers

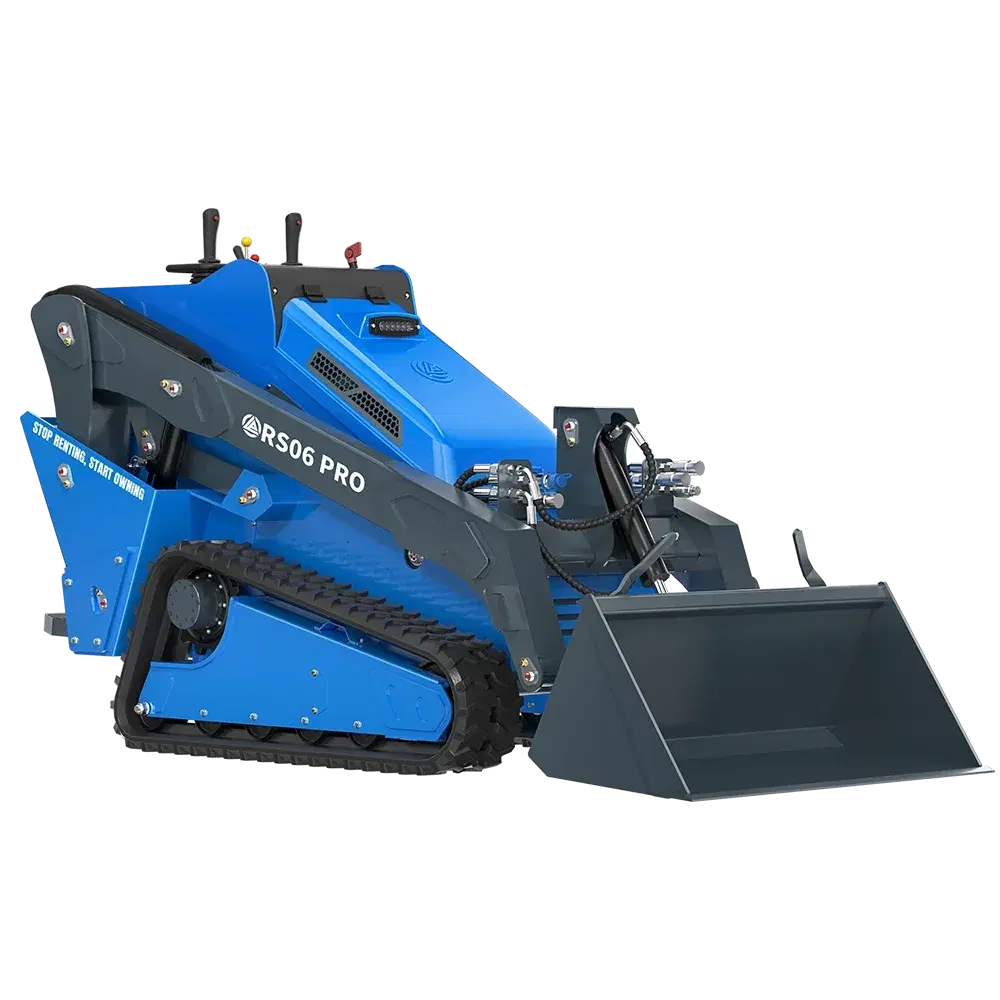

Skid Steer RS06
RS06 skid loader adopts intelligent speed control system, and the pilot operating handle improves accuracy and efficiency; supports multi-functional plug-in quick replacement, adapts to various working conditions; compact and flexible structure, durable and reliable, suitable for small space operation, and maintenance in the international market.
All new units come with a Rippa 12-month parts warranty.
Specifications
Engine
- Engine brand
- Kubota
- Engine model
- D1105
- Maximum horsepower
- 25ps / 24.7hp
- Maximum power
- 18.4kw
- Maximum speed
- 3000rpm
- Displacement
- 1.123L / 0.297gal
- Number of cylinders
- 3
- Cooling method
- Water-cooled
- Engine oil change amount
- 4L / 1.057gal
- Fuel form
- Diesel
- Fuel grade
- 0/-10
- Theoretical fuel consumption
- 1.3-1.5 / 0.211-0.317gal
Performance
- Machine working weight
- 1201kg / 2642lb
- Bucket capacity
- 0.2m³ / 7.1ft³
- Rated load mass (safe load)
- 325kg / 715lb
- Maximum load mass
- 650kg / 1430lb
- Travel speed low/high speed
- 0-5km/h / 0-3.1mph
- Gradeability
- 30%
- Ground pressure
- 43.6kpa / 6.32psi
- Maximum unloading height
- 1600mm / 63in
- Maximum loading height
- 2580mm / 101.6in
- Maximum unloading distance
- 586mm / 23.1in
- Minimum ground clearance
- 176mm / 6.9in
Dimensions
- Transport length-with bucket
- 2792mm / 110in
- Transport length-without bucket
- 2150mm / 84.6in
- Transport width
- 1150mm / 45.3in
- Transport height
- 1522mm / 59.9in
- Bucket width
- 1150mm / 45.3in
Hydraulic system
- Main pump type/model
- PlungerpumpTFA10VO28LADS-53R
- Main pump brand
- Taifeng
- Multi-way valve brand
- Taifengload-sensitivemulti-way valve
- Travel hydraulic motor type
- Hengli BMER-400
- Travel motor brand
- Hengli
Features & Highlights

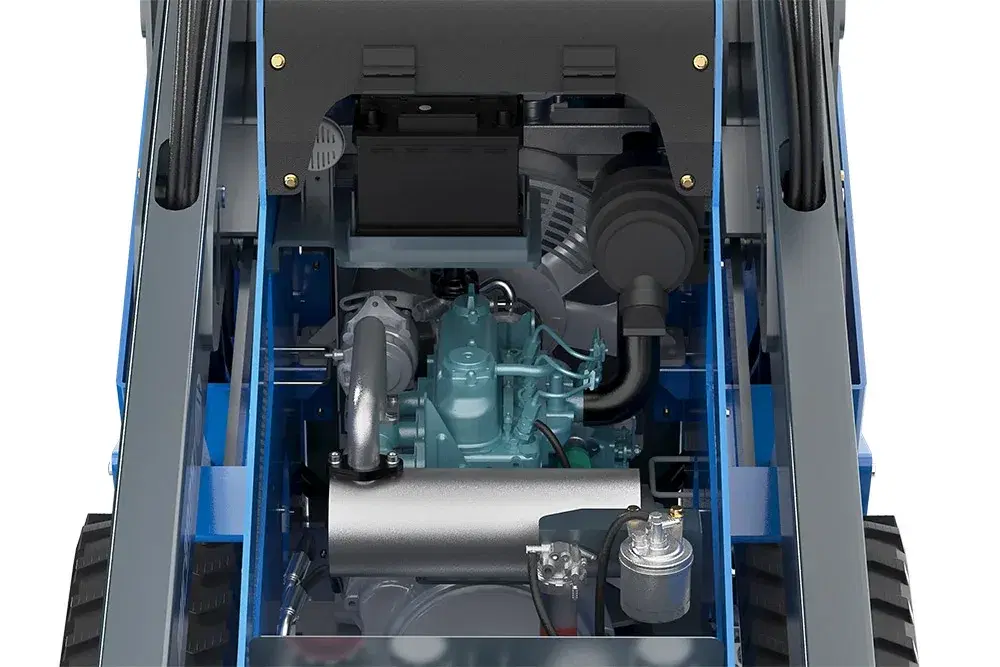

Energy-efficient engine
It adopts engines from well-known brands such as Kubota, providing a compact and powerful power design while maintaining low fuel consumption, low vibration and low noise, achieving a high environmental protection level.

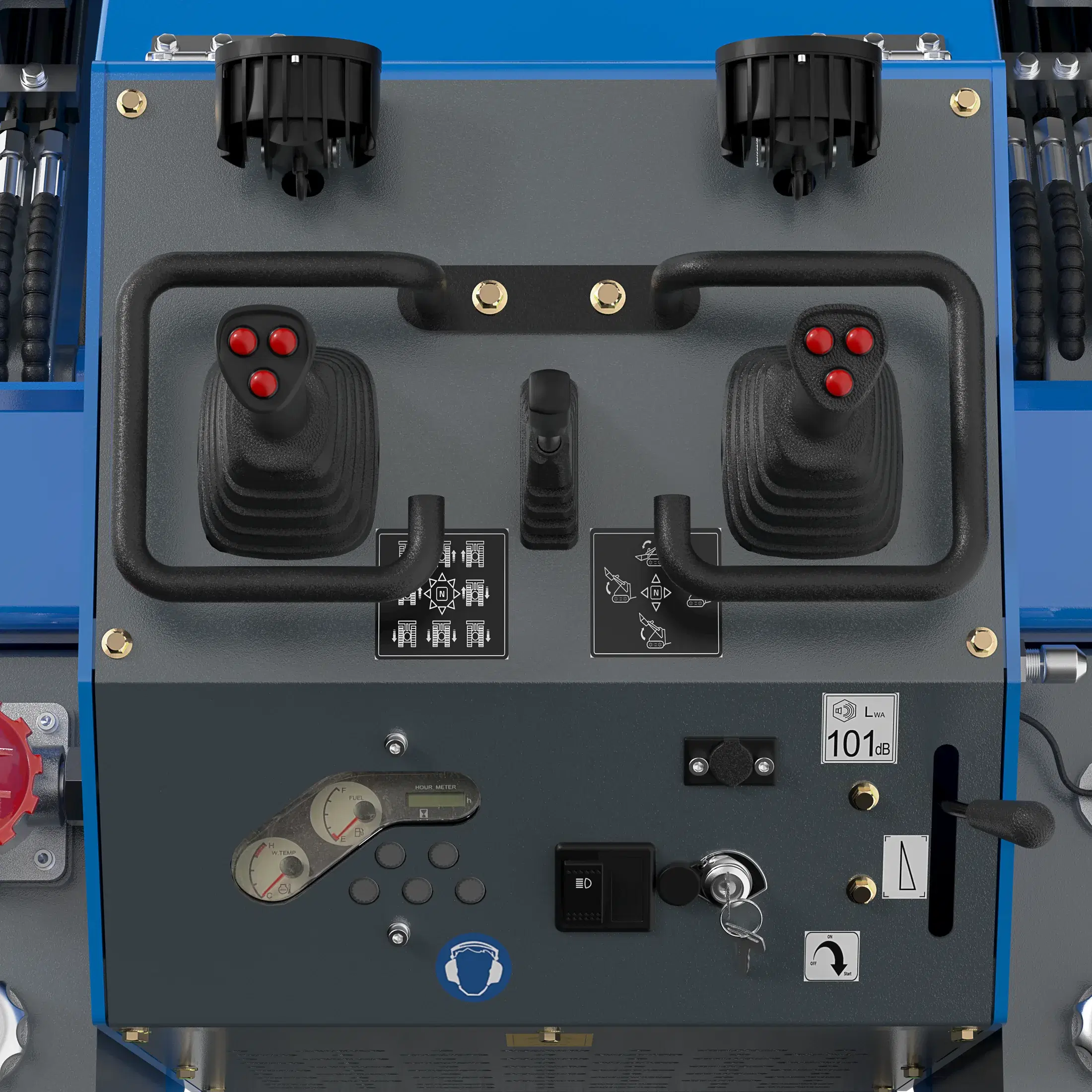

Convenient operation design
Equipped with a single-lever operating handle, it can easily achieve forward, backward, turn and other actions, with high and low speed functions, easy to operate. It provides a safe and all-round operating experience to ensure the safety of operators in different working scenarios.

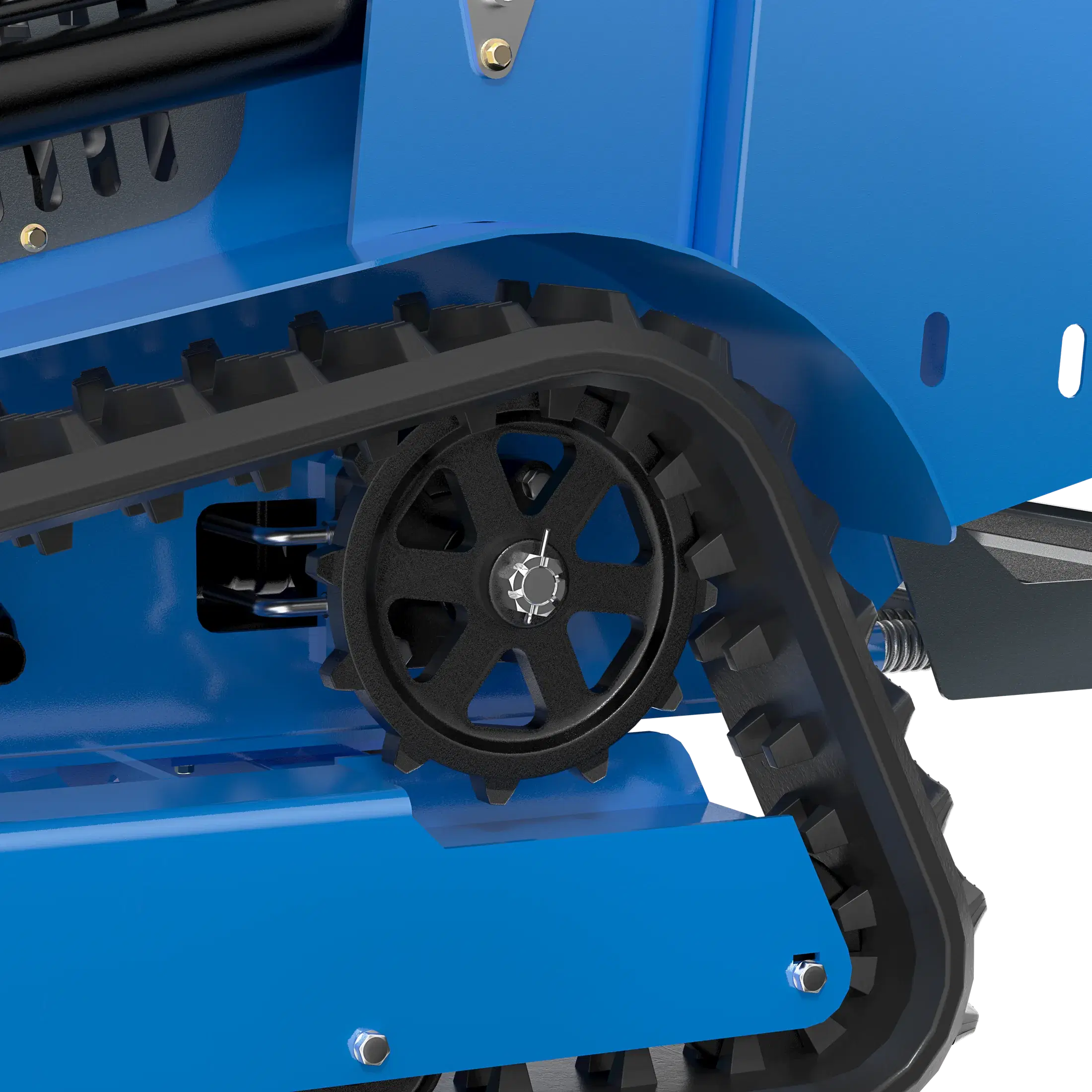

Track
Equipped with thickened wear-resistant rubber tracks, it significantly enhances the walking stability and operation safety of the whole machine, and can easily cope with complex ground environments.

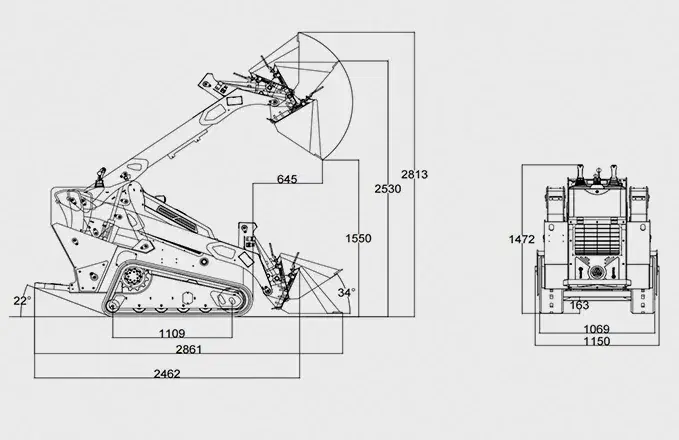

Multipurpose Tool Carrier
The RS06 skid steer loader adopts an intelligent speed control system, and the pilot operating handle improves accuracy and efficiency; it supports quick replacement of multi-functional accessories to adapt to various working conditions; it is compact and flexible, durable and reliable, suitable for operations in narrow spaces, and has strong competitiveness in the international market.
