Rippa · Skid Steers

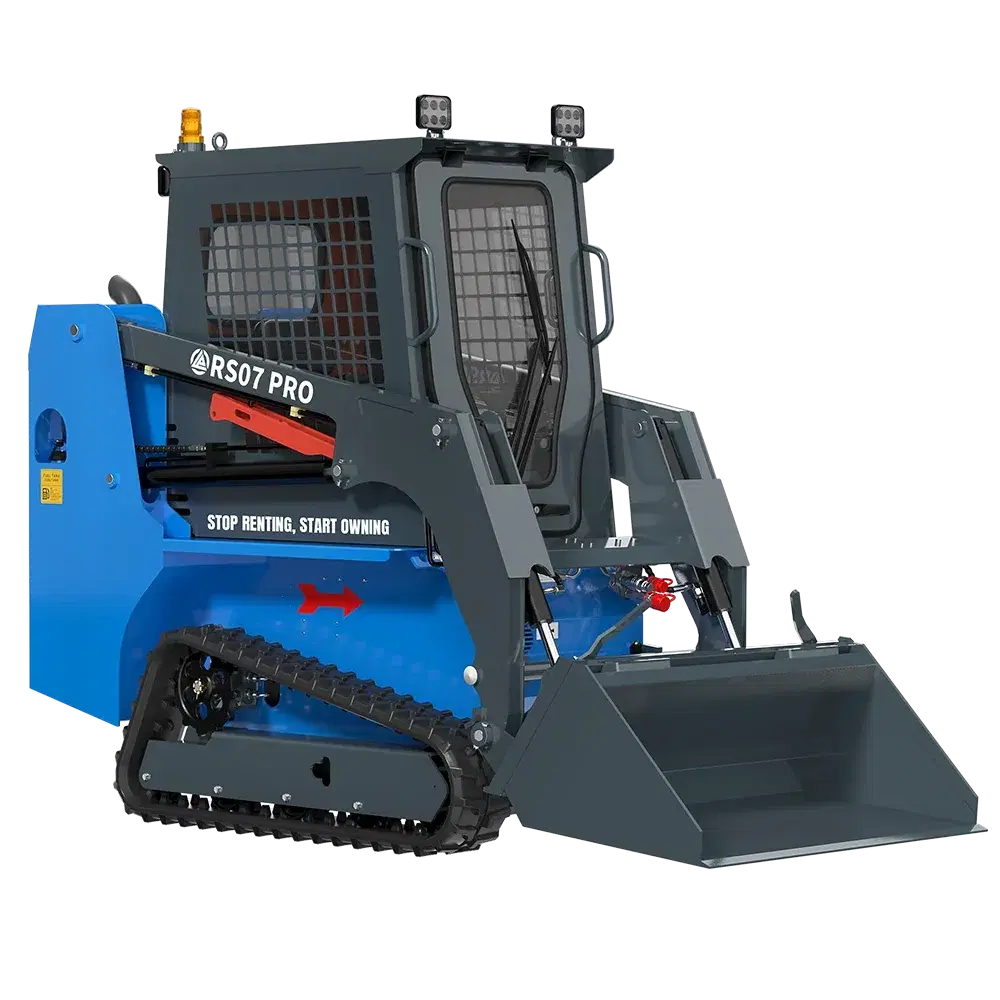

Skid Steer RS07
RIPPA RS07 skid steer loader has strong power, high stability, comfortable operating environment, versatility and fast conversion ability, high reliability and durability, easy maintenance and environmentally friendly design, making it a product sold on the market and very suitable for export trade.
All new units come with a Rippa 12-month parts warranty.
Specifications
Performance
- Machine working weight
- 1230kg / 2706lb
- Bucket capacity
- 0.16m³ / 5.65ft³
- Rated load mass(safe load)
- 300kg / 660lb
- Maximum load mass
- 670kg / 1474lb
- Travel speed low/high speed
- 0-8km/h / 0-4.96mph
- Gradeability
- 30%
- Ground pressure
- 95.87Kpa / 13.9psi
- Maximum unloading height
- 1725mm / 67.9in
- Maximum loading height
- 2260mm / 89in
- Maximum unloading distance
- 508mm / 20in
- Minimum ground clearance
- 176mm / 6.9in
- Transport length-with bucket
- 2655mm / 104.5in
- Transport length-without bucket
- 1985mm / 78.1in
- Transport width
- 1000mm / 39.4in
- Transport height
- 1810mm / 71.3in
- Bucket width
- 1000mm / 39.4in
- Main pump type/model
- ClosedpumpV90C23HT1/RNB2S12KA1-LP01
- Main pump brand
- Hengli
- Gear pump brand
- Tianjin walking
- Multi-way valve
- Pilotmulti-way valve
- Travel motor brand
- Hengli
Engine
- Kyhota
- Clean and Low-Noise
- Engine brand
- Kubota
- Engine model
- D1105
- Maximum horsepower(ps/hp)
- 25/24.7
- Maximum power
- 18.4
- Maximum speed (rpm)
- 3000
- Displacement (L)
- 1.123
- Number of cylinders
- 3
- Cooling method
- Water-cooled
Features & Highlights

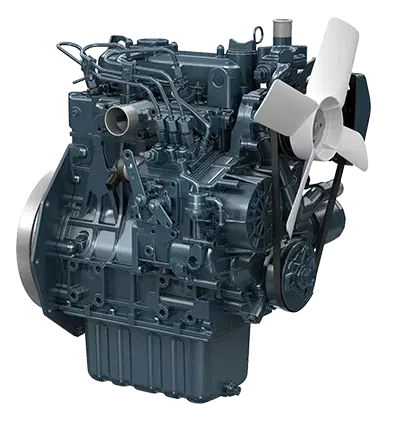

Energy-efficient engine
Equipped with high-power engine, it improves the flow rate of the whole machine and meets various operation requirements. The engine brand is excellent, with ultra-low emissions and high fuel economy.

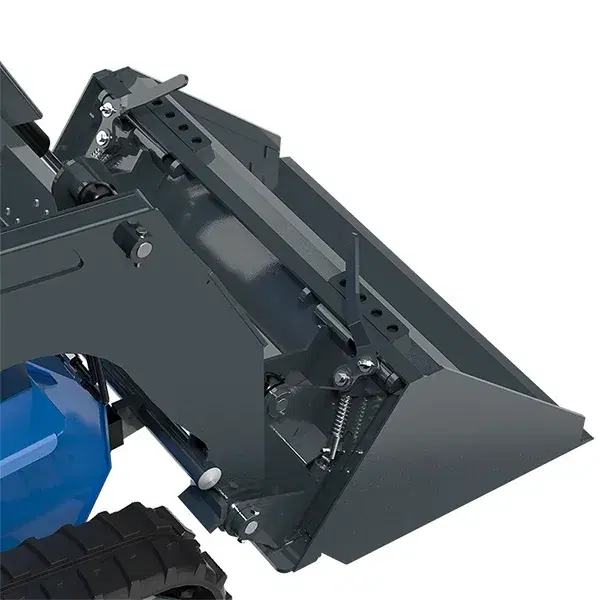

RS07 bucket has a strong structure
The RS07 bucket structure is made of high-strength steel, which is sturdy and durable. The moderate capacity design not only ensures working efficiency but also facilitates operation and control, and is suitable for a variety of working environments.

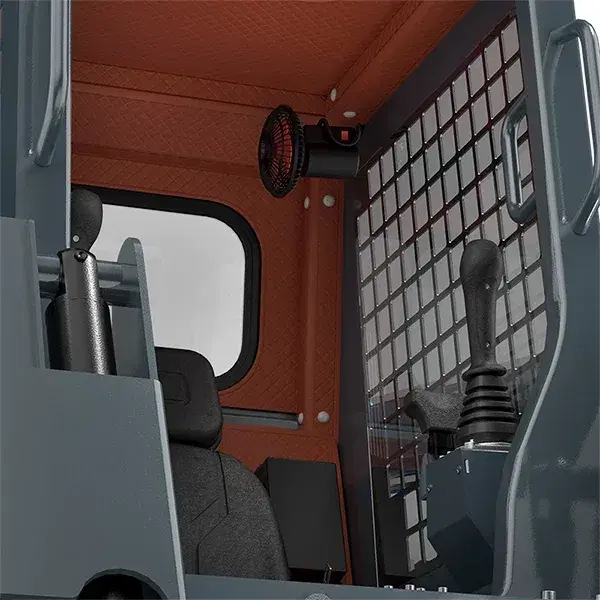

RS07 Comfortable cockpit
RS07 adopts an ergonomically designed cockpit to provide the operator with an ultimate comfort experience. The spacious operating space, shock-absorbing seat, efficient sound insulation system and intelligently arranged instrument panel significantly reduce driving fatigue and improve operating efficiency. Whether it is long-term construction or complex terrain operation, RS07 can bring you the ease and peace of mind of driving.
Multipurpose Tool Carrier
RIPPA RS07 skid steer loader has become a highly competitive product in the market with its powerful power, high stability, comfortable operating environment, versatility and quick conversion capability, high reliability and durability, easy maintenance and environmentally friendly design, which is very suitable for export trade.
Contact Us Today
Interested in the Skid Steer RS07? Send us a message and we'll get back to you with pricing, availability and finance options.
