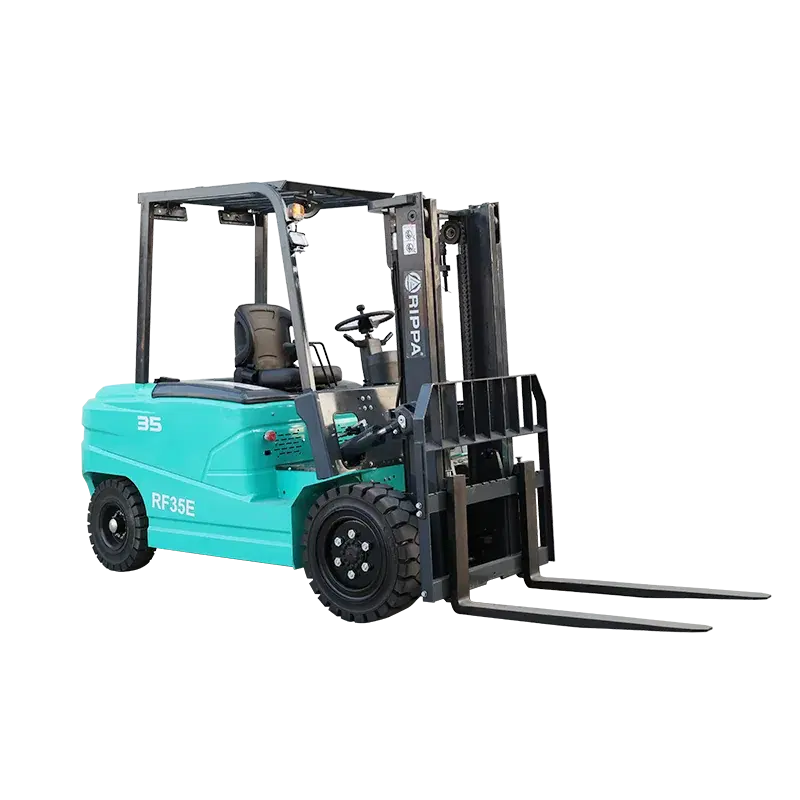

Electric Forklift RF35E
The RF35 is designed with operator comfort and convenience in mind, making it more advantageous in industrial working environments. Its wide, textured armrests provide good support and grip, helping to reduce fatigue from long hours of operation. At the same time, the deep, non-slip steps allow for safe entry and exit, reducing the risk of slipping and improving operational safety.
All new units come with a Rippa 12-month parts warranty.
Specifications
Model
- Power type
- Electric
- Rated load
- 3500 (7716) / kg (lb)
- Load center distance
- 500 (19.7) / mm (in)
- Maximum lifting height of fork shelf with blocking
- 3900 (153.5) / mm (in)
- Maximum lifting height
- 3000 (118.1) / mm (in)
- Full height of gantry fork landing, gantry vertical
- 2100 (82.7) / mm (in)
- Distance from seat surface to roof protection frame
- 990mm / 39in
- Full height roof protection frame
- 2150 (84.6) / mm (in)
- Full length without fork
- 2700 (106.3) / mm (in)
- Front overhang distance
- 100 (3.9) / mm (in)
- Rear overhang
- 200 (7.8) / mm (in)
Dimensions
- Wheel base
- 1580 (62.2) / mm (in)
- Minimum ground clearance
- 150 (5.9) / mm (in)
- Full width
- 1100 (43.3) / mm (in)
- Fork pitch outside max/min
- 1000/800 (47.2/31.5) / mm (in)
- Track width front/rear
- 1000 (39.4) / mm (in)
- Outside of minimum turning radius
- 2300 (90.6) / mm (in)
- Inside of minimum turning radius
- 550 (21.7) / mm (in)
- Gantry tilt angle (front/back)
- 6° front / 12° rear
- Fork size
- 1070*45*120 (42.1*1.8*4.7) / mm (in)
Performance
- Maximum driving speed full load/no load
- 12 (7.5) / km/h (mph)
- Maximum climbing capacity full load/no load
- 10%
Weight
- Total weight
- 4200 (9259) / kg (lb)
Wheels and tyres
- Number of wheels x/drive wheel
- 2X/2
- Tyre type front/rear
- Solid tire
- Front Tyre
- 6.50-10
- Rear Tyre
- 5.00-8
Drive and transmission
- Storage Battery Voltage/Capacity
- 60V75Ah / V/Ah
- Walking motor
- 10000WAC motor / W
- Voltage
- 60V / V
- Controller
- Higer controller
- Battery
- 10 maintenance-free batteries(12V-85A)
- Drive axle
- cast steel one-piece axle for vehicles
- Steering axle
- Heavy-duty steel plate rear axle for vehicles
- Braking method
- hand brake,oil brake
- Lift up the oil cylinder
- High precision grinding sleeve One-way double cylinder
- Hydraulic lifting motor
- 10000WACmotor
- Steering method
- Hydraulic power assist
- Turning radius
- 2520 (99.2) / mm (in)
Features & Highlights

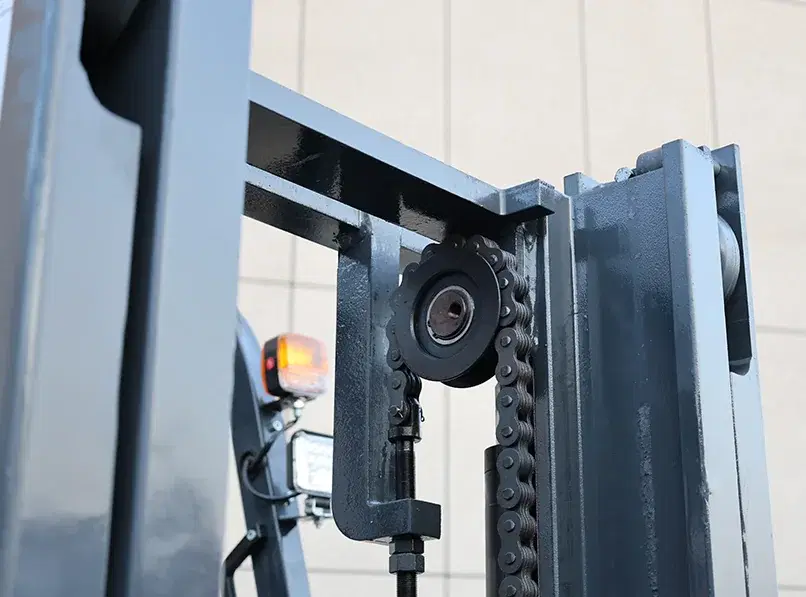

Side scroll wheel
The RF35E adopts an independent side roller design to ensure that the equipment is more stable and reliable during operation. This design makes the door frame gap smaller and greatly reduces the friction between the door frame and the roller, thereby effectively reducing wear and extending the service life of the equipment. In addition, this structure can also keep the door frame stable for a long time, and it will not shake due to wear or looseness even after long-term high-intensity use. This optimization not only improves the smoothness of the equipment's operation, but also enhances the safety of the operation, allowing operators to work in a more reliable environment.

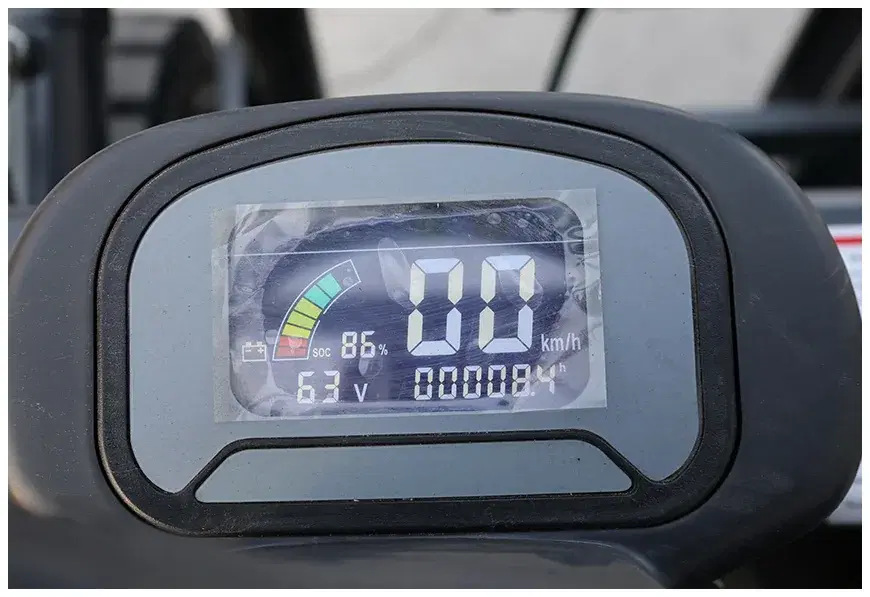

Luxury LCD instrument
The RF35 smart display can intuitively display the battery power, reminding you to charge in time to avoid affecting work progress due to low power. At the same time, it can monitor the driving speed to ensure that the forklift operates within a safe range. When the equipment fails, the system will automatically display the error code, which is convenient for quick troubleshooting and repair, reducing downtime.
