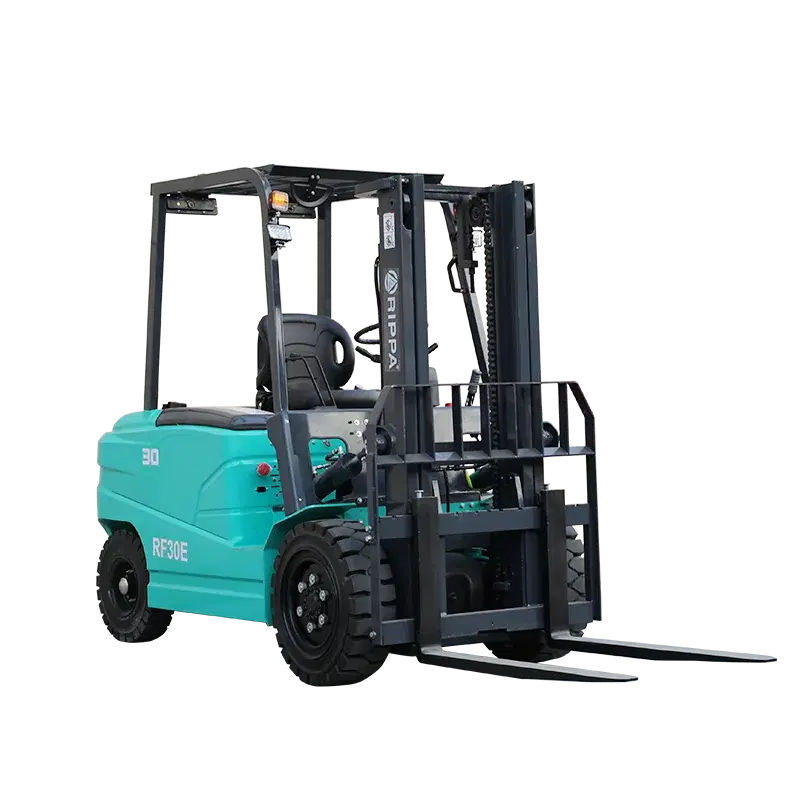

Electric Forklift RF30E
The all-AC system utilizes advanced AC drive motors and AC hydraulic motorto achieve high performance at a low cost. AC motors do not require motorbrushes or containers to be inspected or replaced, which greatly reducesoverall routine maintenance costs, AC motors also provide high operatingeffciency, long operating life, and longer operating time compared to traditionalDC motors. The forklift’s power saving features increase the forklift’s ability tooperate longer without reducing productivity or performance.
All new units come with a Rippa 12-month parts warranty.
Specifications
Model
- Power type
- Electric
- Rated load
- 3000 (6614) / kg (lb)
- Load center distance
- 500 (19.7) / mm (in)
- Maximum lifting height of fork shelf with blocking
- 3900 (153.5) / mm (in)
- Maximum lifting height
- 3000 (118.1) / mm (in)
- Full height of gantry fork landing, gantry vertical
- 2100 (82.7) / mm (in)
- Distance from seat surface to roof protection frame
- 990mm / 39in
- Full height roof protection frame
- 2150 (84.6) / mm (in)
- Full length without fork
- 2700 (106.3) / mm (in)
- Front overhang distance
- 100 (3.9) / mm (in)
- Rear overhang
- 200 (7.8) / mm (in)
Dimensions
- Wheel base
- 1580 (62.2) / mm (in)
- Minimum ground clearance
- 150 (5.9) / mm (in)
- Full width
- 1100 (43.3) / mm (in)
- Fork pitch outside max/min
- 1000/800 (47.2/31.5) / mm (in)
- Track width front/rear
- 1000 (39.4) / mm (in)
- Outside of minimum turning radius
- 2300 (90.6) / mm (in)
- Inside of minimum turning radius
- 550 (21.7) / mm (in)
- Gantry tilt angle (front/back)
- 6° front / 12° rear
- Fork size
- 1070*45*120 (42.1*1.8*4.7) / mm (in)
Performance
- Maximum driving speed full load/no load
- 12 (7.5) / km/h (mph)
- Maximum climbing capacity full load/no load
- 10%
Weight
- Total weight
- 3900 (8598) / kg (lb)
Wheels and tyres
- Number of wheels x/drive wheel
- 2X/2
- Tyre type front/rear
- Solid tire
- Front Tyre
- 6.50-10
- Rear Tyre
- 5.00-8
Drive and transmission
- Storage Battery Voltage/Capacity
- 60V75Ah / V/Ah
- Walking motor
- 7500WACmotor / W
- Voltage
- 60V / V
- Controller
- Higer controller
- Battery
- 10 maintenance-free batteries(12V-85A)
- Drive axle
- cast steel one-piece axle for vehicles
- Steering axle
- Heavy-duty steel plate rear axle for vehicles
- Braking method
- hand brake,oil brake
- Lift up the oil cylinder
- Hlgh precision grinding sleeve One-way double cylinder
- Hydraulic lifting motor
- 5000WACmotor
- Steering method
- Hydraulic power assist
- Turning radius
- 2520 (99.2) / mm (in)
Features & Highlights

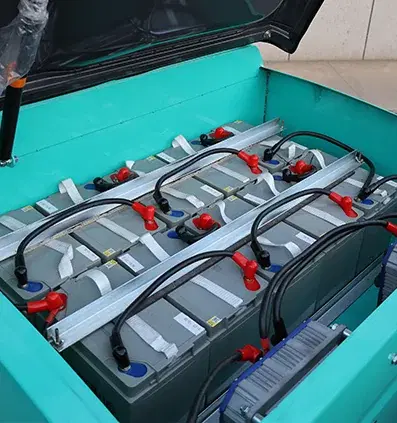

Battery wiringharness thickened
It can effectively reduce the resistanceof the wire, thereby reducing energyloss, improving current transmissionefficiency, and ensuring more stablepower output. The heat generatedwhen the current passes through thewiring harness is reduced, avoidingoverheating and extending the servicelife of the wiring harness and battery.

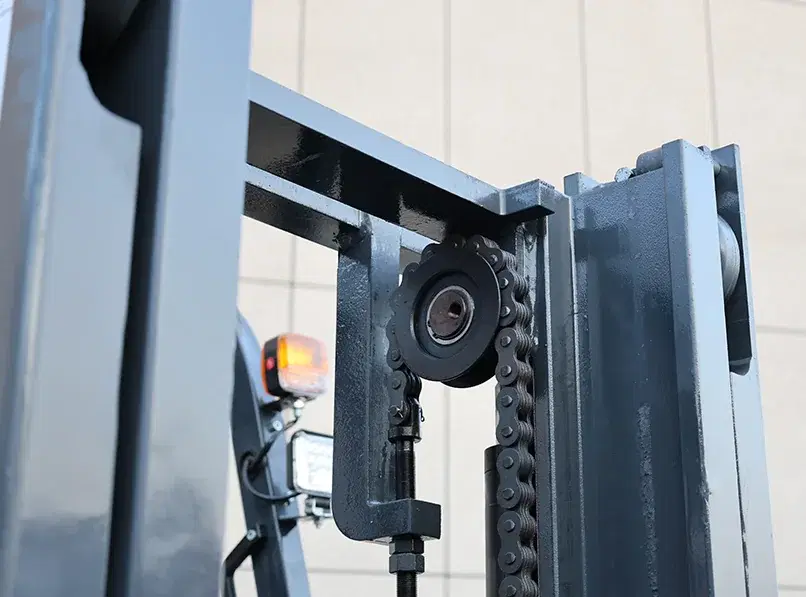

Side scroll wheel
RF30E adopts independent side roller design, making it more stable and reliable during operation. This design makes the door frame gap smaller, effectively reducing the wear of the door frame, thereby extending the service life of the equipment. At the same time, this structure can ensure that the door frame can remain stable after long-term use, and will not shake due to wear or looseness, improving the smoothness and safety of the overall operation. In addition, this structure can also keep the door frame stable for a long time, and it will not shake due to wear or looseness even after long-term high-intensity use. This optimization not only improves the smoothness of the equipment's operation, but also enhances the safety of the operation, allowing operators to work in a more reliable environment.

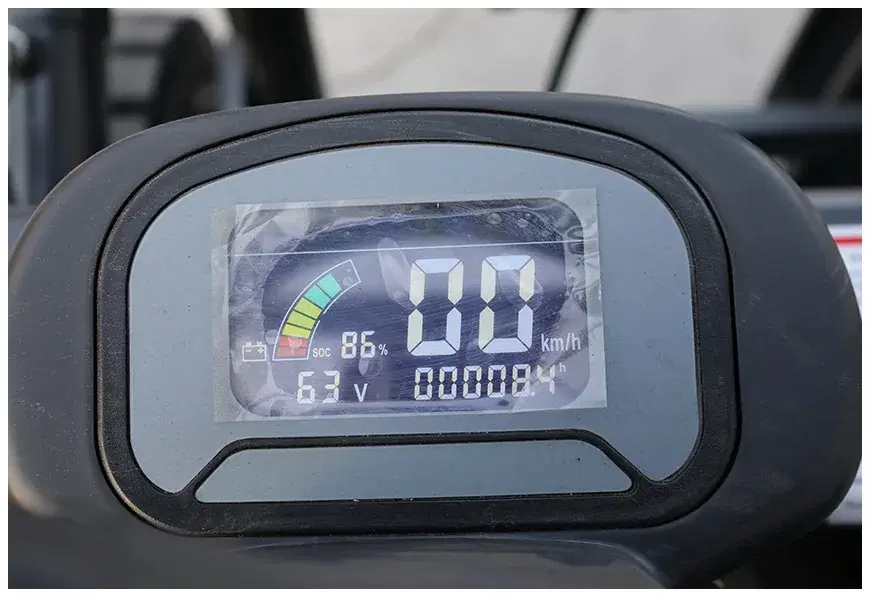

Luxury LCD instrument
The RF30 smart display can intuitively display the battery power, reminding you to charge in time to avoid affecting work progress due to low power. At the same time, it can monitor the driving speed to ensure that the forklift operates within a safe range. When the equipment fails, the system will automatically display the error code, which is convenient for quick troubleshooting and repair, reducing downtime.

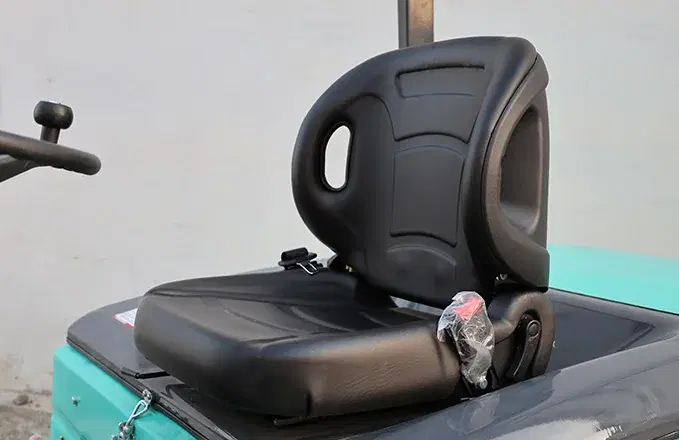

Semi-wrapped seatimproves operatorcomfort
RF30E excels in ergonomic design, especially in terms of operating comfort and safety. Its excellent anti-vibration performance can effectively reduce the impact of vibration on the operator, reduce physical fatigue and stress caused by long-term operation, and improve work efficiency.
