Rippa · rippa forklifts

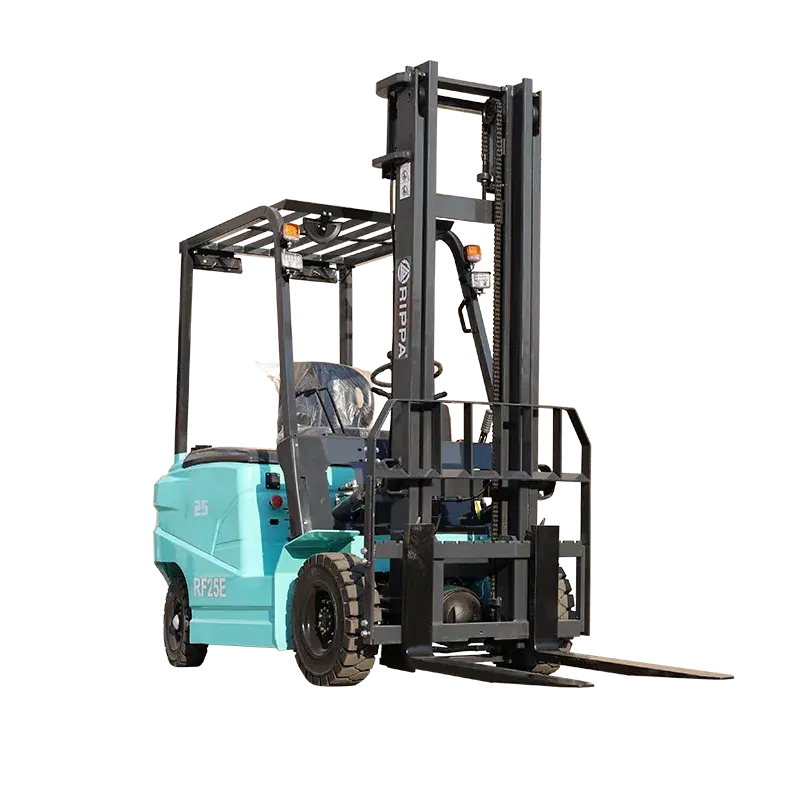

Electric Forklift RF25E
To optimize the control experience, the RF25E uses a thumb-driven directional control device to make operation more precise and reduce hand fatigue. In addition, the seat-side power disconnect device provides more convenient safety control, ensuring that the operator can quickly cut off the power and improve safety performance.
All new units come with a Rippa 12-month parts warranty.
Specifications
Model
- Power type
- Electric
- Rated load
- 2500 (5512) / kg (lb)
- Load center distance
- 500 (19.7) / mm (in)
- Maximum lifting height of fork shelf with blocking
- 3900 (153.5) / mm (in)
- Maximum lifingheight
- 3000 (118.1) / mm (in)
- Full height of gantry fork landing,gantry vertical
- 2100 (82.7) / mm (in)
- Distance from seat surface to roof protection frame
- 990mm / 39in
- Full height roof protection frame
- 2130 (83.9) / mm (in)
- Full length without fork
- 2200 (86.6) / mm (in)
- Front overhang distance
- 352 (13.9) / mm (in)
- Rear overhang
- 350 (13.8) / mm (in)
Dimensions
- Wheel base
- 1580 (62.2) / mm (in)
- Minimum ground clearance
- 150 (5.9) / mm (in)
- Full width
- 1200 (47.2) / mm (in)
- Fork pitch outside max/min
- 1000/800 (47.2/31.5) / mm (in)
- Track width front/rear
- 1000 (39.4) / mm (in)
- Outside of minimum turning radius
- 2300 (90.6) / mm (in)
- Inside of minimum turning radius
- 550 (21.7) / mm (in)
- Gantry tilt angle (front/back)
- 6° front / 12° rear
- Fork size
- 1070*45*120 (42.1*1.8*4.7) / mm (in)
Performance
- Maximum driving speed full load/no load
- 12 (7.5) / km/h (mph)
- Maximum climbing capacity full load/no load
- 10%
Weight
- Total weight
- 2870 (6327) / kg (lb)
Wheels and tyres
- Number of wheels x/drive wheel
- 2X/2
- Tyre type front/rear
- Solid tire
- Front Tyre
- 6.50-10
- Rear Tyre
- 5.00-8
Drive and transmission
- Storage Battery Voltage/Capacity
- 60V75Ah / V/Ah
- Walking motor
- 5000WACmotor / W
- Voltage
- 60V / V
- Controller
- Higer controller
- Battery
- 5 maintenance-free batteries(12V-75A)
- Drive axle
- cast steel one-piece axle for trucks
- Steering axle
- Heavy-duty steel plate rear axle for trucks
- Braking method
- Hand brake,oil brake
- Lift up the oil cylinder
- High precision grinding sleeve One-way double cylinder
- Hydraulic lifting motor
- 4000WACmotor
- Steering method
- Hydraulic power assist
- Turning radius
- 2520 (99.2) / mm (in)
Features & Highlights

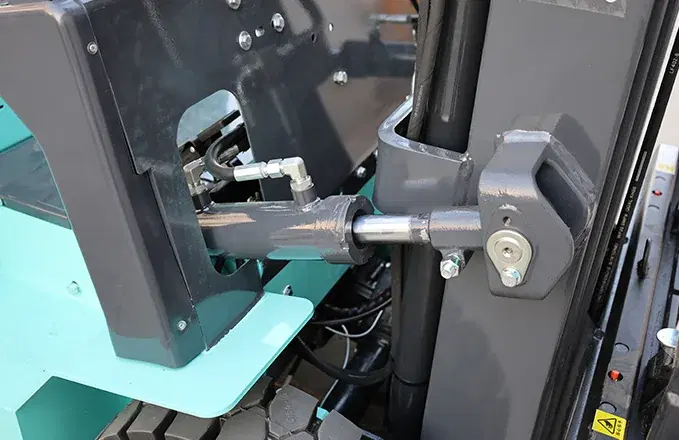

The oil cylinder adoptsimported oil seal
The RF25E electric forklift cylinder uses imported oil seals to ensure excellent sealing performance and durability. High-quality oil seals can effectively prevent hydraulic oil leakage, reduce wear, extend the service life of the cylinder, and improve the stability and reliability of the equipment. Imported oil seals have good high pressure resistance, high temperature resistance and corrosion resistance, and can adapt to various complex working conditions, ensuring that the RF cylinder can still maintain efficient operation under high-intensity working conditions.
