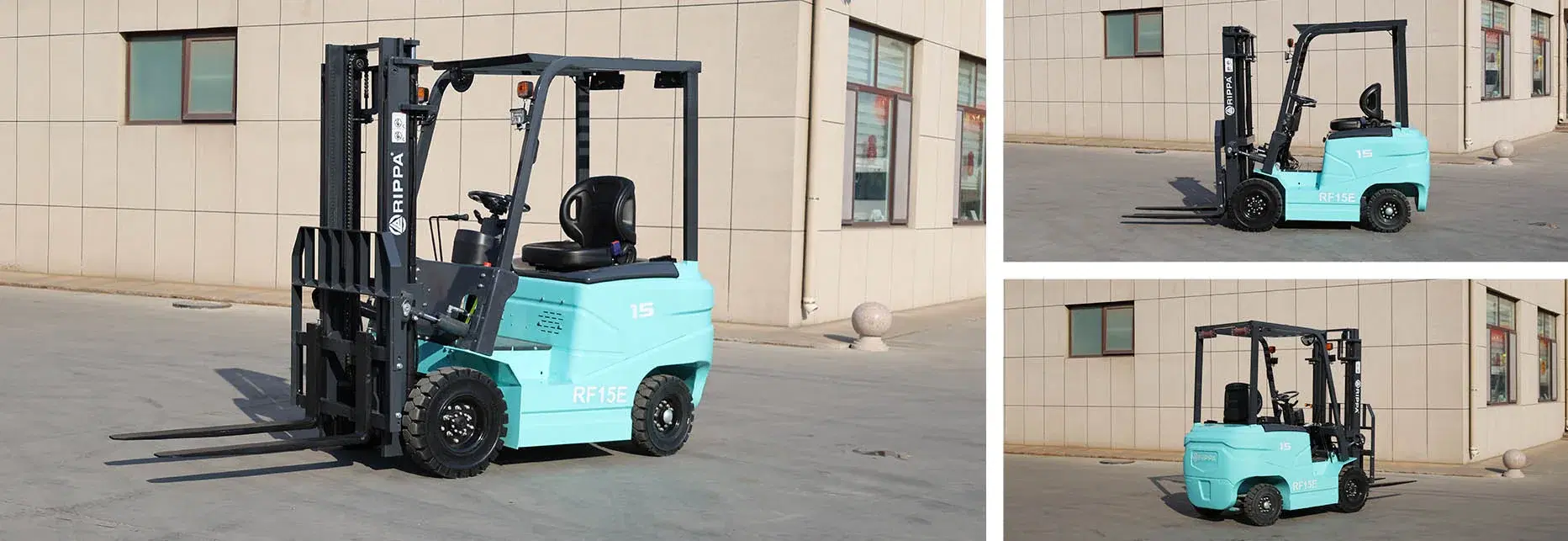

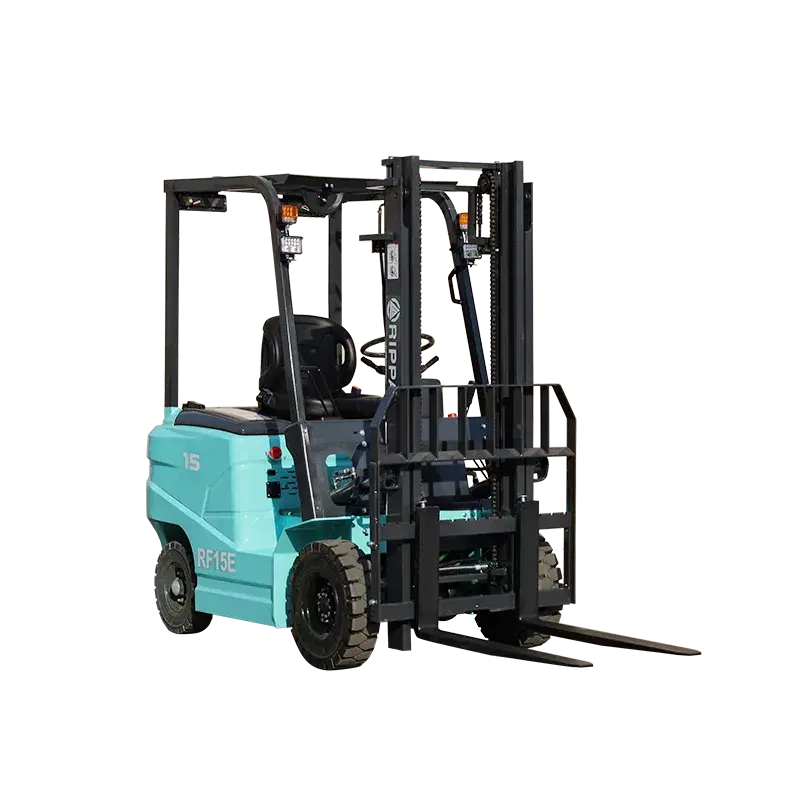

Electric Forklift RF15E
Features wide, textured armrests, deep non-slip stepsfor easy entry and exit, thumb-actuated directionalcontrols, seat-side power disconnect, spacious, easilyaccessible storage area on the hood, and a tilt steeringcolumn with optional tilt memory and telescopingfeatures to reduce operator fatigue.
All new units come with a Rippa 12-month parts warranty.
Specifications
Model
- Power type
- Electric
- Rated load
- 1500 (3307) / kg (lb)
- Load center distance
- 500 (19.7) / mm (in)
- Maximum lifting height of fork shelf with blocking
- 3900 (153.5) / mm (in)
- Maximum lifingheight
- 3000 (118.1) / mm (in)
- Full height of gantry fork landing,gantry vertical
- 2100 (82.7) / mm (in)
- Distance from seat surface to roof protection frame
- 990mm / 39in
- Full height roof protection frame
- 2130 (83.9) / mm (in)
- Full length without fork
- 2200 (86.6) / mm (in)
- Front overhang distance
- 352 (13.9) / mm (in)
- Rear overhang
- 350 (13.8) / mm (in)
Dimensions
- Wheel base
- 1480 (58.3) / mm (in)
- Minimum ground clearance
- 150 (5.9) / mm (in)
- Full width
- 1200 (47.2) / mm (in)
- Fork pitch outside max/min
- 1000/800 (47.2/31.5) / mm (in)
- Track width front/rear
- 1000 (39.4) / mm (in)
- Outside of minimum turning radius
- 2300 (90.6) / mm (in)
- Inside of minimum turning radius
- 550 (21.7) / mm (in)
- Gantry tilt angle (front/back)
- 6° front / 12° rear
- Fork size
- 1070*45*120 (42.1*1.8*4.7) / mm (in)
Performance
- Maximum driving speed full load/no load
- 12 (7.5) / km/h (mph)
- Maximum climbing capacity full load/no load
- 10%
Weight
- Total weight
- 2600 (5732) / kg (lb)
Wheels and tyres
- Number of wheels x/drive wheel
- 2X/2
- Tyre type front/rear
- Solid tire
- Front Tyre
- 6.50-10
- Rear Tyre
- 5.00-8
Drive and transmission
- Storage Battery Voltage/Capacity
- 60V75Ah / V/Ah
- Walking motor
- 3000WACmotor / W
- Voltage
- 60V / V
- Controller
- Higer controller
- Battery
- 5 maintenance-free batteries(12V-75A)
- Drive axle
- cast steel one-piece axle for trucks
- Steering axle
- Heavy-duty steel plate rear axle for trucks
- Braking method
- Hand brake,oil brake
- Lift up the oil cylinder
- High precision grinding sleeve One-way double cylinder
- Hydraulic lifting motor
- 3000WACmotor
- Steering method
- Hydraulic power assist
- Turning radius
- 2520 (99.2) / mm (in)
Features & Highlights

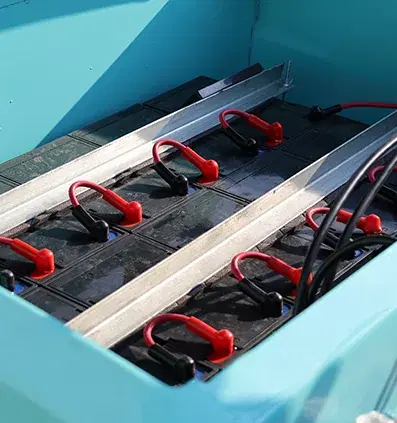

Battery wiringharness thickened
lt can effectively reduce the resistanceof the wire, thereby reducing energyloss, improving current transmissionefficiency, and ensuring more stablepower output. The heat generatedwhen the current passes through thewiring harness is reduced, avoidingoverheating and extending the servicelife of the wiring harness and battery,

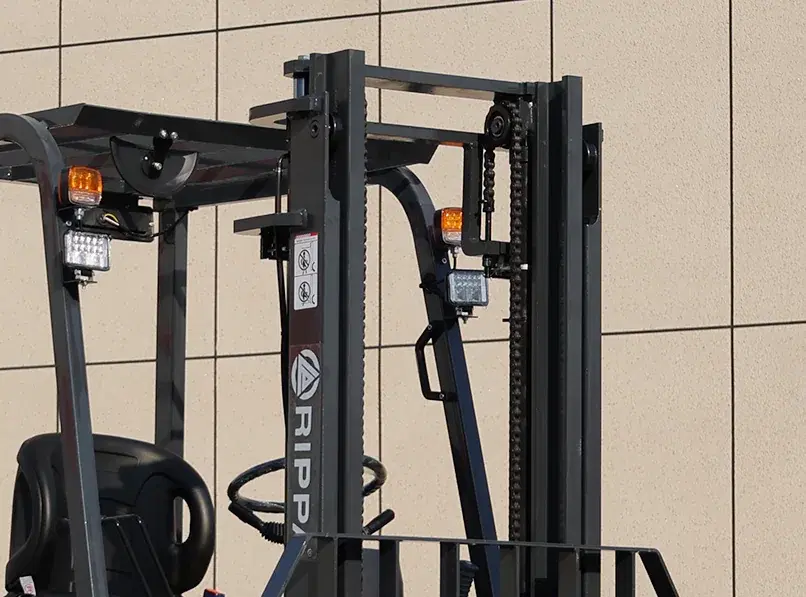

Self-made high-precision reinforced gantry
The RF15 electric forklift uses a self-made high-precision reinforced gantry, which has higher strength and stability, ensuring that it is stable and reliable even when working with heavy loads. The high-precision design improves the smoothness and safety of cargo lifting, effectively reduces shaking, and improves work efficiency.

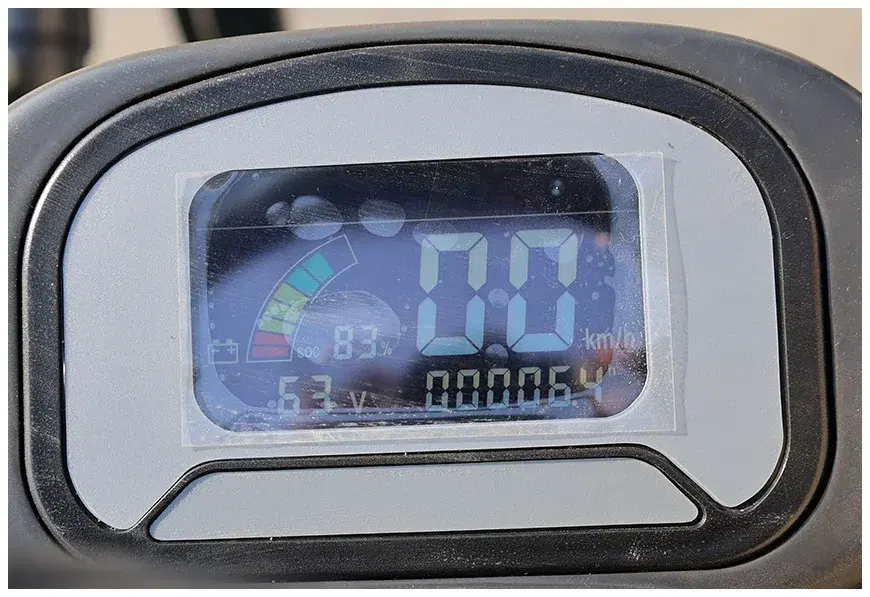

Luxury LCD instrument
The RF15 electric forklift is equipped with an intelligent display screen that can read various operating parameters in real time, helping operators and maintenance personnel to fully understand the equipment status and improve work efficiency.

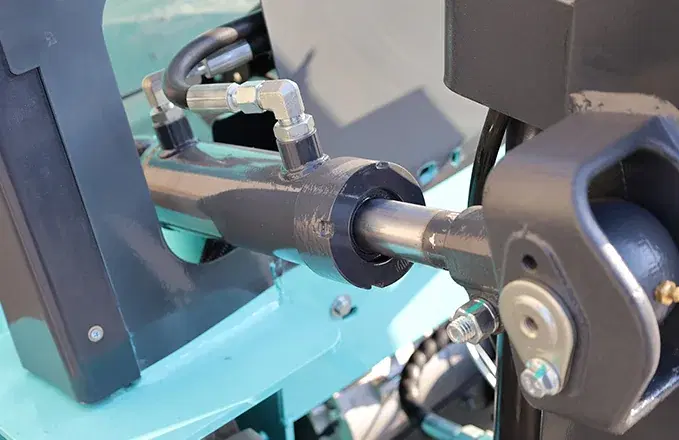

The oil cylinder adoptsimported oil seal
The RF15 electric forklift cylinder uses imported oil seals to ensure excellent sealing performance and durability. High-quality oil seals can effectively prevent hydraulic oil leakage, reduce wear, extend the service life of the cylinder, and improve the stability and reliability of the equipment. Imported oil seals have good high pressure resistance, high temperature resistance and corrosion resistance, and can adapt to various complex working conditions, ensuring that the RF cylinder can still maintain efficient operation under high-intensity working conditions.
