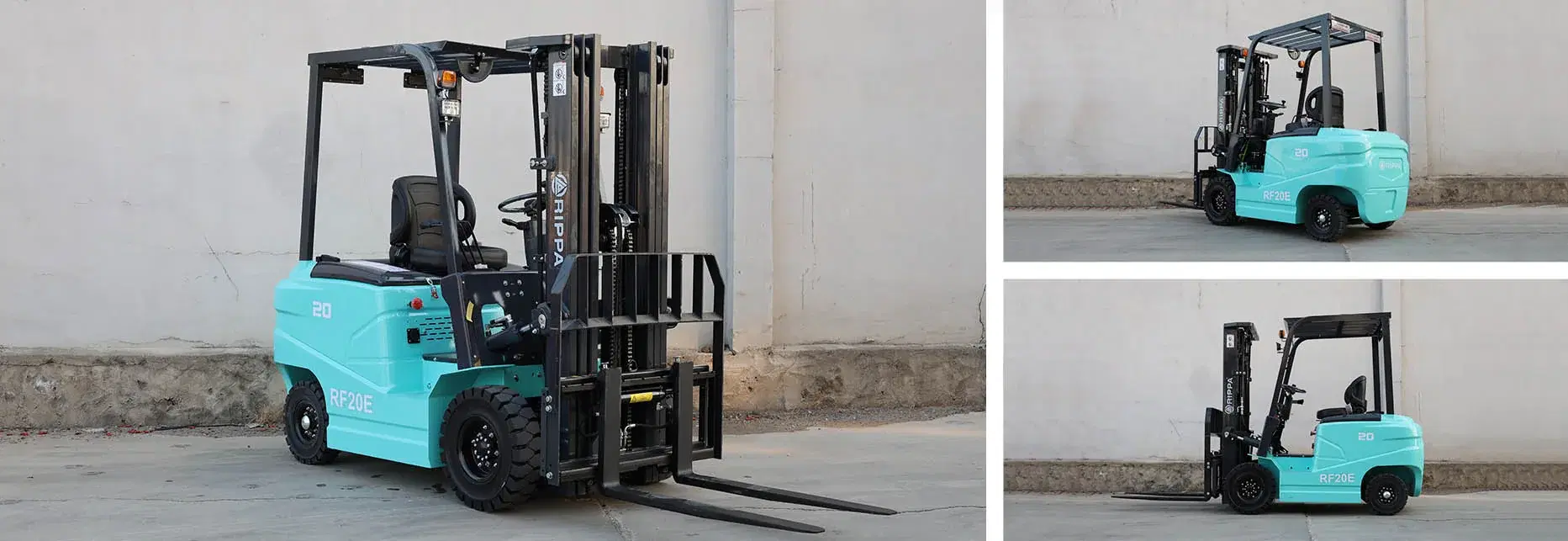

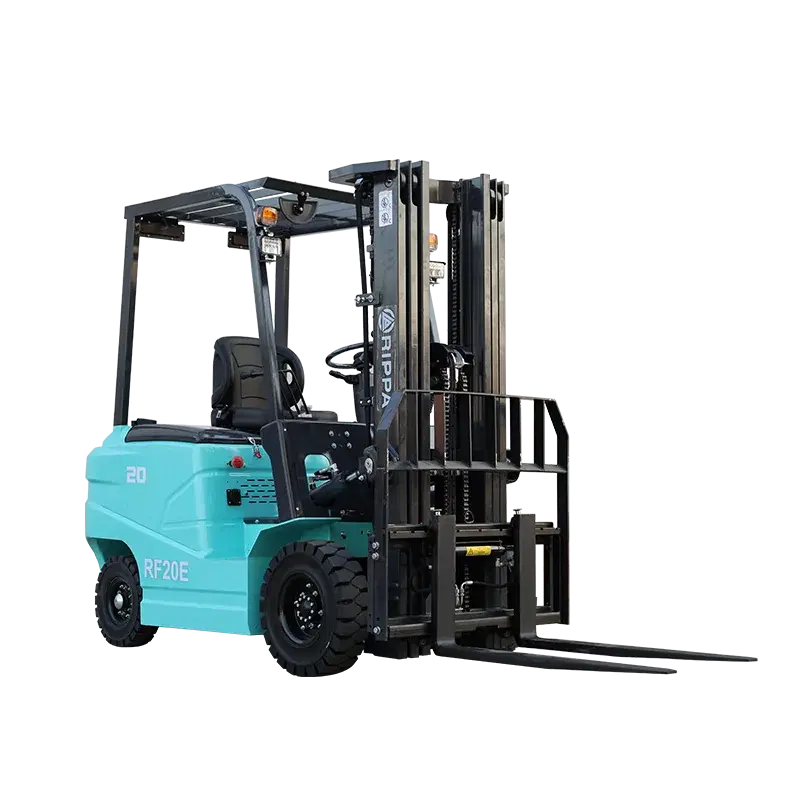

Electric Forklift RF20E
The all-AC system utilizes advanced AC drive motors and AC hydraulic motorto achieve high performance at a low cost. AC motors do not require motorbrushes or containers to be inspected or replaced, which greatly reducesoverall routine maintenance costs. AC motors also provide high operatingefficiency, long operating life, and longer operating time compared to traditionalDC motors. The forklift’s power saving features increase the forklift’s ability tooperate longer without reducing productivity or performance.
All new units come with a Rippa 12-month parts warranty.
Specifications
Model
- Power type
- Electric
- Rated load
- 2000 (4409) / kg (lb)
- Load center distance
- 500 (19.7) / mm (in)
- Maximum lifting height of fork shelf with blocking
- 3900 (153.5) / mm (in)
- Maximum lifingheight
- 3000 (118.1) / mm (in)
- Full height of gantry fork landing,gantry vertical
- 2100 (82.7) / mm (in)
- Distance from seat surface to roof protection frame
- 990mm / 39in
- Full height roof protection frame
- 2130 (83.9) / mm (in)
- Full length without fork
- 2200 (86.6) / mm (in)
- Front overhang distance
- 352 (13.9) / mm (in)
- Rear overhang
- 350 (13.8) / mm (in)
Dimensions
- Wheel base
- 1580 (62.2) / mm (in)
- Minimum ground clearance
- 150 (5.9) / mm (in)
- Full width
- 1200 (47.2) / mm (in)
- Fork pitch outside max/min
- 1000/800 (47.2/31.5) / mm (in)
- Track width front/rear
- 1000 (39.4) / mm (in)
- Outside of minimum turning radius
- 2300 (90.6) / mm (in)
- Inside of minimum turning radius
- 550 (21.7) / mm (in)
- Gantry tilt angle (front/back)
- 6° front / 12° rear
- Fork size
- 1070*45*120 (42.1*1.8*4.7) / mm (in)
Performance
- Maximum driving speed full load/no load
- 12 (7.5) / km/h (mph)
- Maximum climbing capacity full load/no load
- 10%
Weight
- Total weight
- 2600 (5732) / kg (lb)
Wheels and tyres
- Number of wheels x/drive wheel
- 2X/2
- Tyre type front/rear
- Solid tire
- Front Tyre
- 6.50-10
- Rear Tyre
- 5.00-8
Drive and transmission
- Storage Battery Voltage/Capacity
- 60V75Ah / V/Ah
- Walking motor
- 4000WACmotor / W
- Voltage
- 60V / V
- Controller
- Higer controller
- Battery
- 5 maintenance-free batteries(12V-75A)
- Drive axle
- cast steel one-piece axle for trucks
- Steering axle
- Heavy-duty steel plate rear axle for trucks
- Braking method
- Hand brake,oil brake
- Lift up the oil cylinder
- High precision grinding sleeve One-way double cylinder
- Hydraulic lifting motor
- 4000WACmotor
- Steering method
- Hydraulic power assist
- Turning radius
- 2520 (99.2) / mm (in)
Features & Highlights

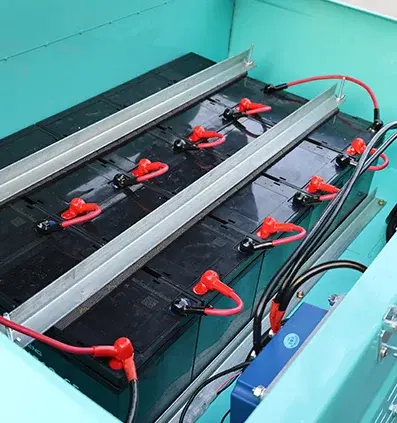

Battery wiring harness thickened
It can effectively reduce the resistanceof the wire, thereby reducing energyloss, improving current transmissionefficiency, and ensuring more stablepower output. The heat generatedwhen the current passes through thewiring hamness is reduced, avoidingoverheating and extending the servicelife of the wiring harness and battery,

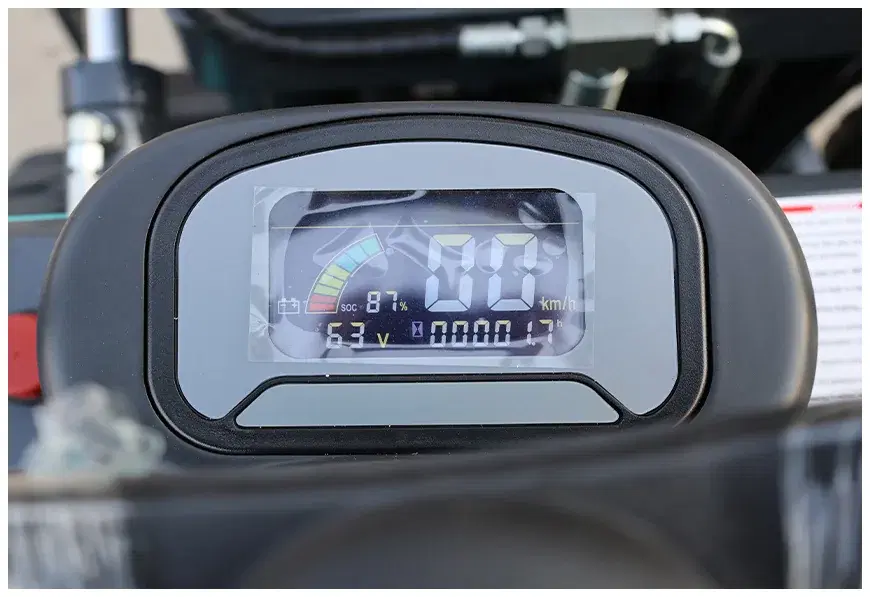

Luxury LCD instrument
The RF20 smart display can intuitively display the battery power, reminding you to charge in time to avoid affecting work progress due to low power. At the same time, it can monitor the driving speed to ensure that the forklift operates within a safe range. When the equipment fails, the system will automatically display the error code, which is convenient for quick troubleshooting and repair, reducing downtime.

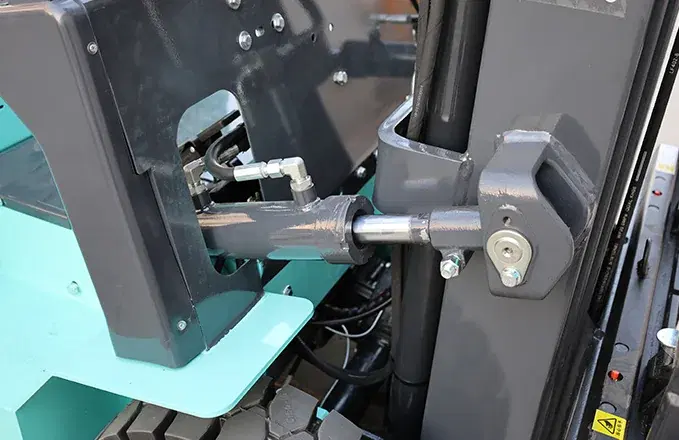

The oil cylinder adoptsimported oil seal
The RF20E imported oil seal has superior performance such as high pressure resistance, high temperature resistance, and corrosion resistance, and can adapt to various complex working conditions. Even in high-intensity working environments, the RF20 oil cylinder can still maintain efficient and stable operation. This design not only reduces maintenance costs, but also enhances the overall operating capacity of the forklift, making it more suitable for high-intensity application scenarios such as logistics, warehousing, and industrial manufacturing.
