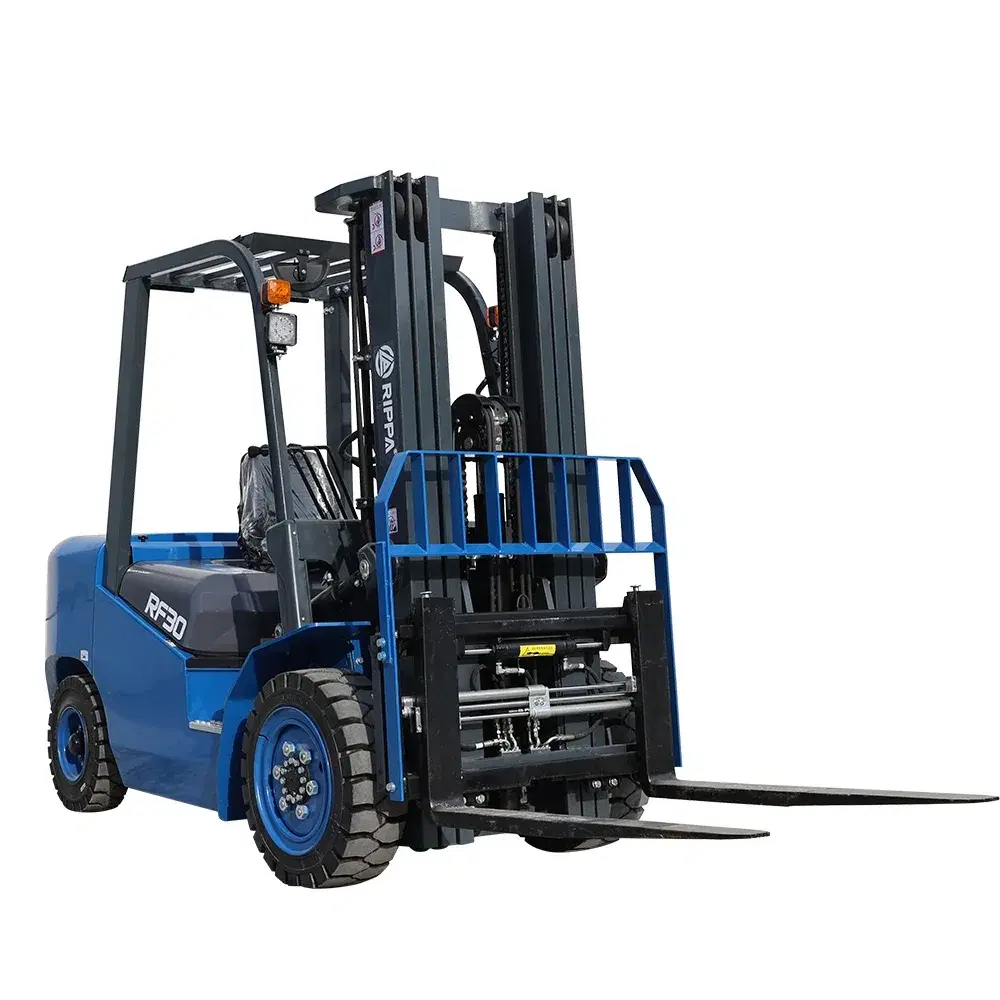

Diesel Forklift RF30
RF30 diesel forklift has become an ideal choice in export trade with its powerful performance, high quality, durability, multifunctional design, perfect after-sales service and strong brand strength.
All new units come with a Rippa 12-month parts warranty.
Specifications
Specifications
- Power type
- Internal combustion engine(diesel)
- Rated load
- 3000 (6614) / kg
- Load center distance
- 500 (19.7) / mm (in)
- Maximum lifting height of fork shelf with blocking
- 4260 (167.7) / mm (in)
- Maximum lifting height
- 3000 (118.1) / mm (in)
- Full height of gantry forklanding,gantryvertical
- 2081 (81.9) / mm (in)
- Free lifting height
- 100 (3.9) / mm (in)
- Heightofblockingrackcalculatedfrom theforksurfaceof gantry
- 1227 (48.3) / mm (in)
- Distance from seat surface to roof protection frame
- 1022 (40.2) / mm (in)
- Full height roof protection frame
- 2186 (86.1) / mm (in)
- Full length without fork
- 2852 (112.3) / mm (in)
- Front overhang distance
- 455 (17.9) / mm (in)
- Rear overhang
- 498 (19.6) / mm (in)
- Wheel base
- 1800 (70.9) / mm (in)
- Towing pin height
- 310 (12.2) / mm (in)
- Minimum ground clearance
- 174 (6.9) / mm (in)
- Full width
- 1234 (48.6) / mm (in)
- Fork pitch outside max/min
- 1100/240 (43.3/9.4) / mm (in)
- Track width front/rear
- 1030/992 (40.6/39.1) / mm (in)
- Outside of minimum turning radius
- 2407 (94.8) / mm (in)
- Inside of minimum turning radius
- 1582 (62.3) / mm (in)
- Minimum right angle radius width
- 2507 (98.7) / mm (in)
- Gantry tilt angle (front/back)
- 6° front / 12° rear
- Forksize
- 1070*45*120(42.1*1.8*4.7) / mm (in)
- Maximum driving speed full load/no load
- 18/20 (11.2/12.4) / km/h (mph)
- Speed increase full load/no load
- 350/500 / mm/s
- Speed decrease full load/no load
- 550/450 / mm/s
- Maximum traction full load/no load
- 17 (3822) / KN (lbf)
- Maximum climbing capacity full load/no load
- 15/20%
Weight
- Total weight
- 4320 (9524) / kg (lb)
- Weight distribution full load front/rear
- 6480/920 (14286/2028) / kg (lb)
- Weight distribution no load front/rear
- 1730/2580 (3814/5688) / kg (lb)
- Number of wheels x/drive wheel
- 2X/2
Wheels and tyres
- Tyre type front/rear
- Pneumatic tire
- Front Tyre
- 28*9-15
- Rear Tyre
- 6.50-10
- Service brake
- hydraulic brake
- Parking brake
- Mechanical
Engine and transmission
- Engine model
- changchai/Yanmar
- Reducermodel
- 4G33TC/498
- Engine power
- 37/44(50/59) / kW (hp)
- Engine speed
- 2300/3000 / r/min
- Number of transmission shifts
- 2 front and 2 rear
Features & Highlights

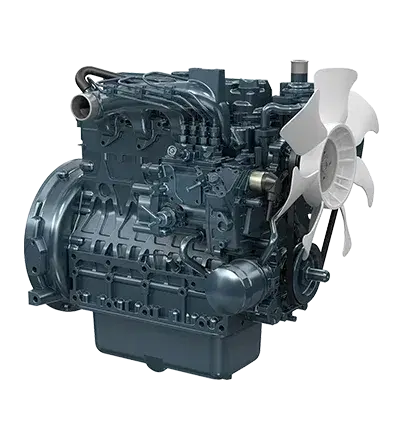

Multi-cylinder water-cooled diesel engine
A large, white, multi-bladed fan at the front, coupled with belt drive, ensures that the engine can maintain an ideal operating temperature even under long-term high-load operation.

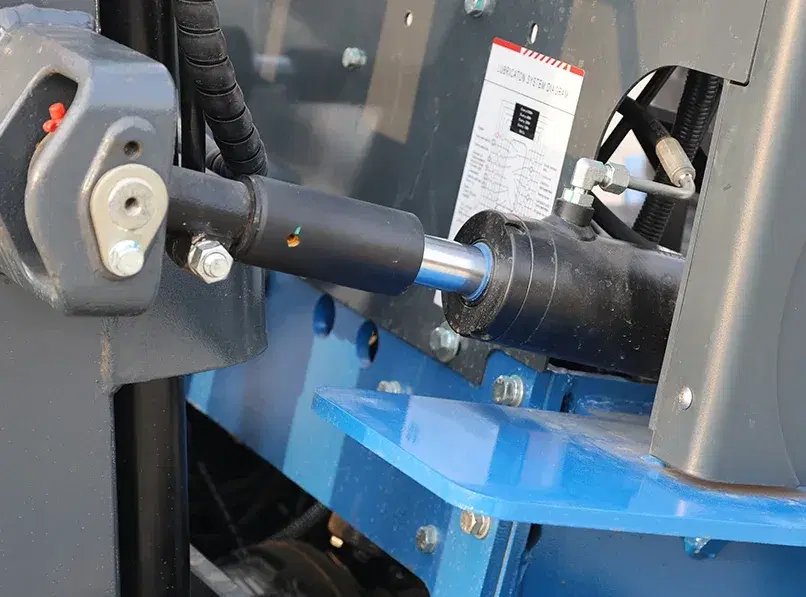

High-performance hydraulic cylinders
Hydraulic cylinders, crafted with a high-quality sealing system and precision machining, possess excellent load-bearing capacity and stable push-pull performance.

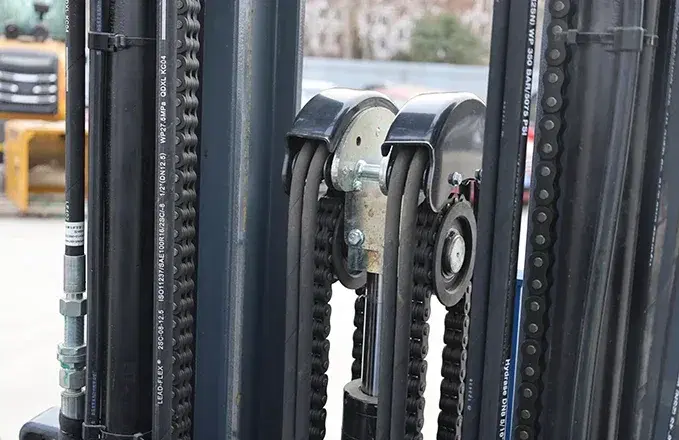

High-strength gantry
The gantry frame is constructed with high-strength steel and a reinforced structural design, resulting in greater overall rigidity and excellent resistance to torsion and bending, ensuring stability and reliability even under heavy loads.

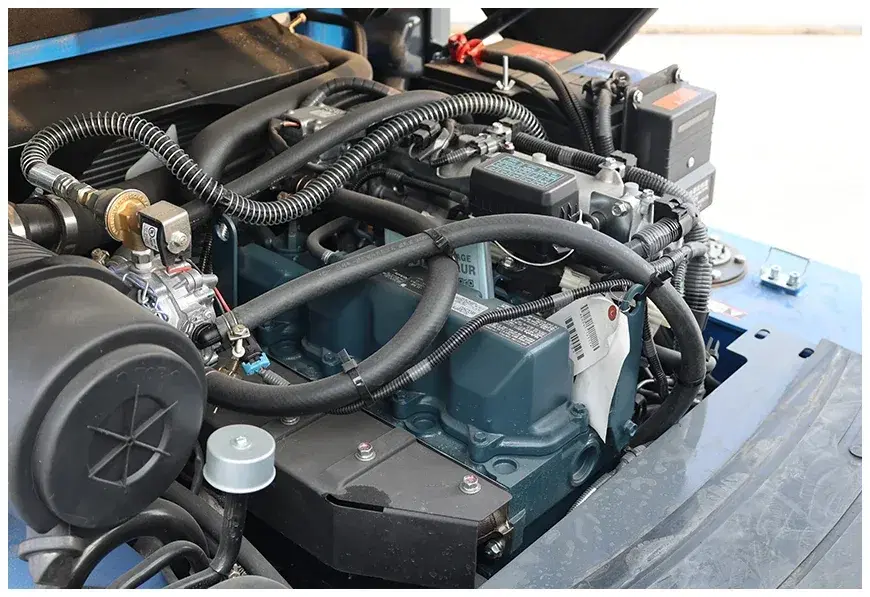

Circuit harness
It is responsible for transmitting sensor signals (such as oil pressure and water temperature) back to the control unit and providing power commands to the electronic fuel injectors.
Contact Us Today
Interested in the Diesel Forklift RF30? Send us a message and we'll get back to you with pricing, availability and finance options.
