Rippa · Large excavators

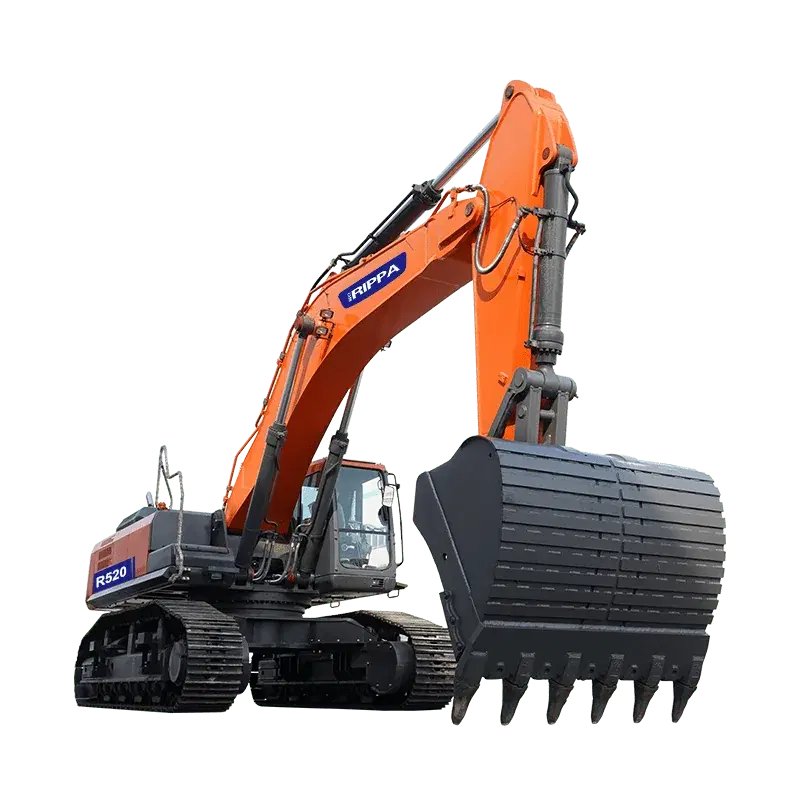

Large Excavator R520
Rippa R520 large excavator has significant competitive advantages in the excavator market with its core selling points such as high efficiency and energy saving, intelligent control, reliable and durable, comfortable and convenient, easy maintenance, safe and reliable, and perfect after-sales service.
All new units come with a Rippa 12-month parts warranty.
Specifications
- Machine working weight
- 111760(50800)
- Bucket capacity
- 76.6(2.17)
- Boom length
- 279.5(7100)
- Arm length
- 131.9(3350)
- Slewing speed
- (8.9)
- Travel speed
- 1.86-3.48 (3.0-5.6)
- Bucket digging force
- 64340/68297(286.2/303.8)
- Arm digging force
- 47817/50672(212.7/225.4)
- Maximum digging distance
- 476.8(12110)
- Maximum digging distance on the ground
- 467.1(11865)
- Maximum digging depth
- 307.1(7800)
- Maximum digging height
- 435(11050)
- Maximum unloading height
- 311 (7900)
- Maximum vertical digging depth
- 173.2 (4400)
- Total length for transport
- 477.6(12132)
- Total width for transport
- 131.6(3342)
- Total height for transport
- 145.7(3700)
- Total height of cab
- 131.9(3350)
- Ground clearance of counterweight
- 57.4(1458)
- Rear end turning radius
- 147.6(3750)
- Engine
- Cummins QM11
- Power
- 344.3(257)
- Multi-way valve
- HF
- Hydraulic pump
- Nakagawa/Kawasaki
- Travel motor
- ZHTE
- Slewing motor
- ZHTE
Features & Highlights

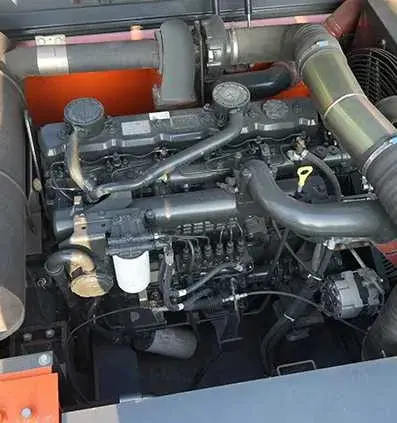

Energy-efficient engine
Equipped with Cummins or Doosan engines, it provides powerful power support with a rated power of 300kW/1800rpm. The high-efficiency engine combined with a large-capacity bucket and a reinforced mining chassis can comprehensively improve production capacity.

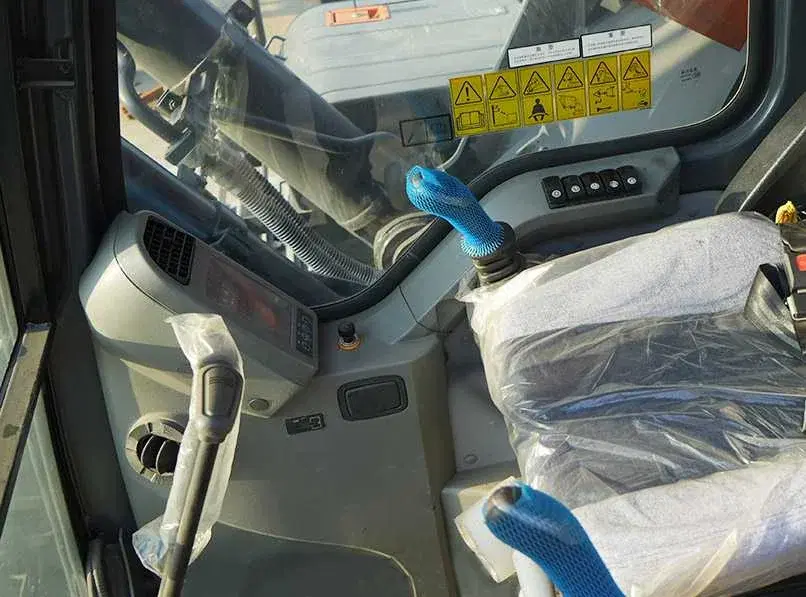

Comfortable and convenient driving environment
Adhering to the "driver-centric" design concept, the noise and vibration in the cab are greatly reduced. Equipped with an air-conditioning system to meet the needs of four-season operations and improve operating comfort and convenience. The centralized button design, including the rotary throttle, air-conditioning panel, auxiliary buttons and on-board radio station, improves the convenience of operation.

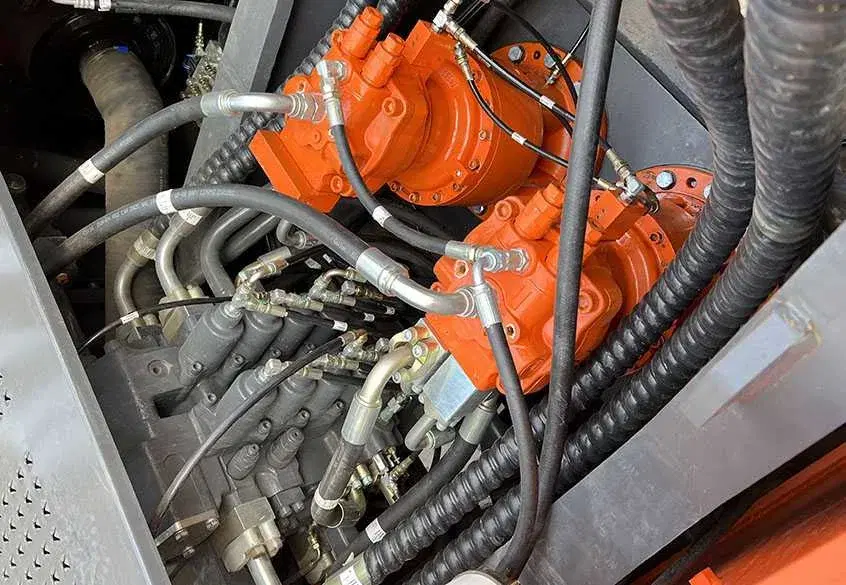

Multi-way valve and swing motor
The multi-way valve can be precisely controlled to improve work efficiency and reduce hydraulic loss; the benefits of the swing motor: 360-degree free rotation, smooth and precise rotation control to improve durability, the combination of the multi-way valve and the swing motor enables the excavator to maintain efficient and stable operating capabilities under complex working conditions, while increasing the flexibility and life of the equipment.
Multipurpose Tool Carrier
The RIPPA R520 excavator has significant competitive advantages in the excavator market with its core selling points of high efficiency, energy saving, intelligent control, reliability and durability, comfort and convenience, convenient maintenance, safety and reliability, and comprehensive after-sales service.
