Rippa · Large excavators

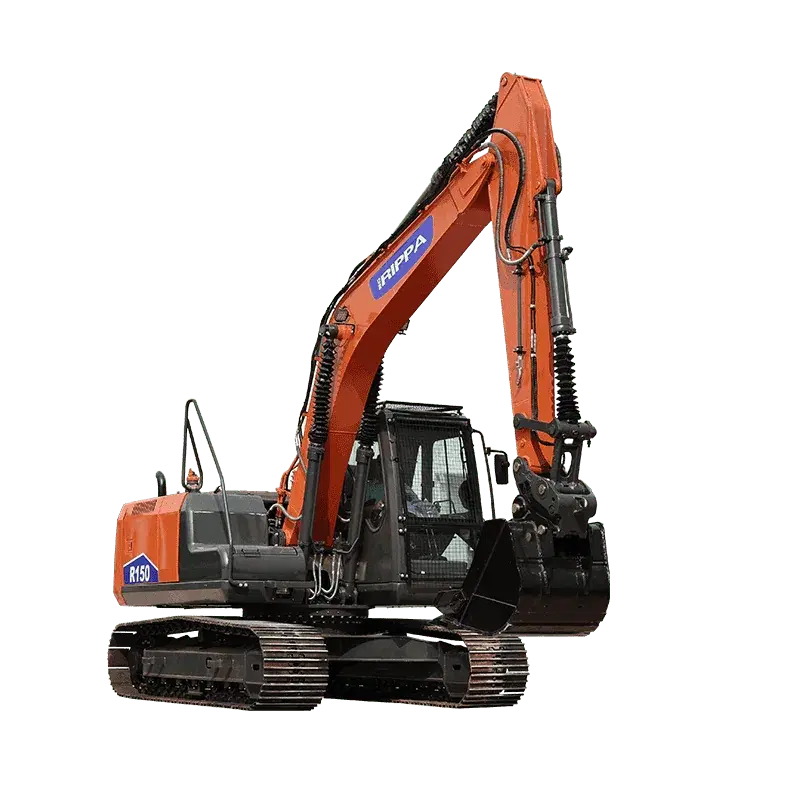

Large Excavator R150
Rippa R150 large excavator has become a leader in the excavator market with its powerful power system, efficient hydraulic system, rugged and durable structural design, comfortable driving environment, wide range of applications and environmentally friendly emission performance, meeting the diverse needs of different customers.
All new units come with a Rippa 12-month parts warranty.
Specifications
- Machine working weight (kg)
- 33000(15000)
- Bucket capacity(m³)
- 9.5-26.8(0.27-0.76)
- Boom length (mm)
- 181.2(4602)
- Arm length (mm)
- 114.2 (2900)
- Slewing speed (rpm)
- (11.9)
- Travel speed (km\h)
- 2.1-3.0 (3.3-4.9)
- Bucket digging force (KN)
- 17378-18299(77.3-81.4)
- Arm digging force (KN)
- 12971-14163(57.7-63)
- Cab height (mm)
- 111.5(2832)
- Tail slewing radius (mm)
- 86.7(2202)
- Counterweight level(mm)
- 36.3(922)
- Track length (mm)
- 137.7(3497)
- Track width (mm)
- 102.4 (2600)
- Track shoe width (mm)
- 23.7(602)
- Minimum ground clearance (mm)
- 16.1 (408)
- Maximum digging range (mm)
- 344.2(8742)
- Maximum digging range on the ground (mm)
- 338.7(8602)
- Maximum digging depth(mm)
- 241.4 (6132)
- Maximum unloading height (mm)
- 257.2(6532)
- Maximum vertical wall depth that can be dug (mm)
- 1831(4652)
- Engine
- Cummins 4BT3.9
- Power
- 123.3(92KW)
- Multi-way valve
- KYB
- Hydraulic pump
- ZHTE
- Travel motor
- ZHTE
- Slewing motor
- ZHTE
Features & Highlights

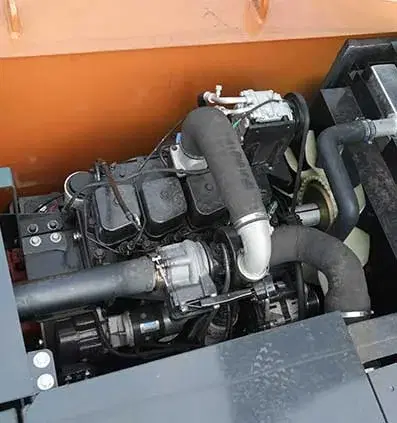

Energy-efficient engine
Using Isuzu or Cummins Euro V engines, high power and high performance of core components, it continues to maintain Maintaining the performance advantages of the previous generation product; the engine cylinder combustion temperature is high, the fuel efficiency is significantly improved, and the power is strong; the exhaust gas emissions are environmentally friendly.

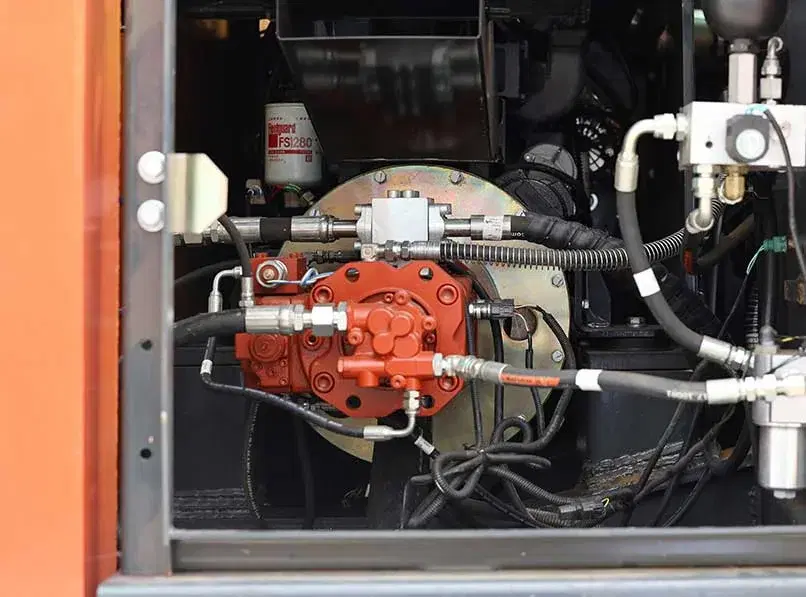

Hydraulic system
The hydraulic oil pump and other oil filtration systems are used to improve fuel filtration performance, greatly increase fuel usage, reduce system energy loss, effectively reduce fuel consumption, and save 7% fuel compared to the previous generation of models.

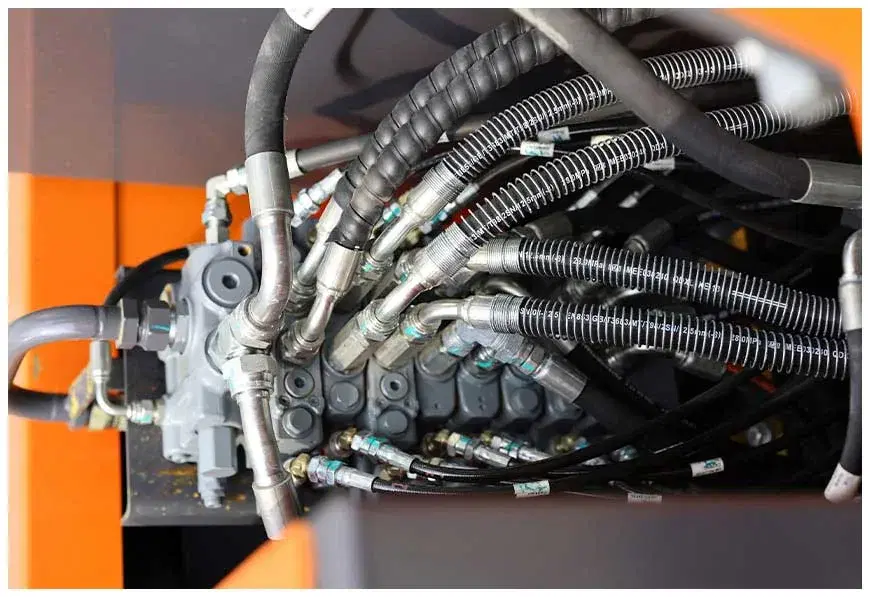

Central swing motor
The central rotary motor adopts a well-known foreign brand with stable performance and durability.

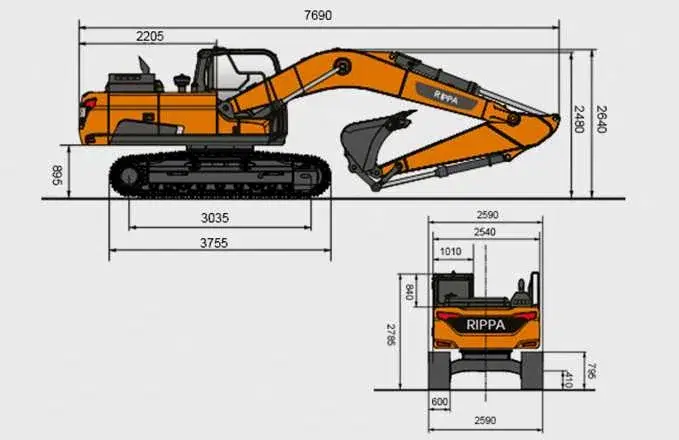

Multipurpose Tool Carrier
The Rippa R150 large excavator has become a leader in the excavator market with its powerful power system, efficient hydraulic system, sturdy and durable structural design, comfortable driving environment, wide range of applications and environmentally friendly emission performance, meeting the diverse needs of different customers.
