Rippa · Large excavators

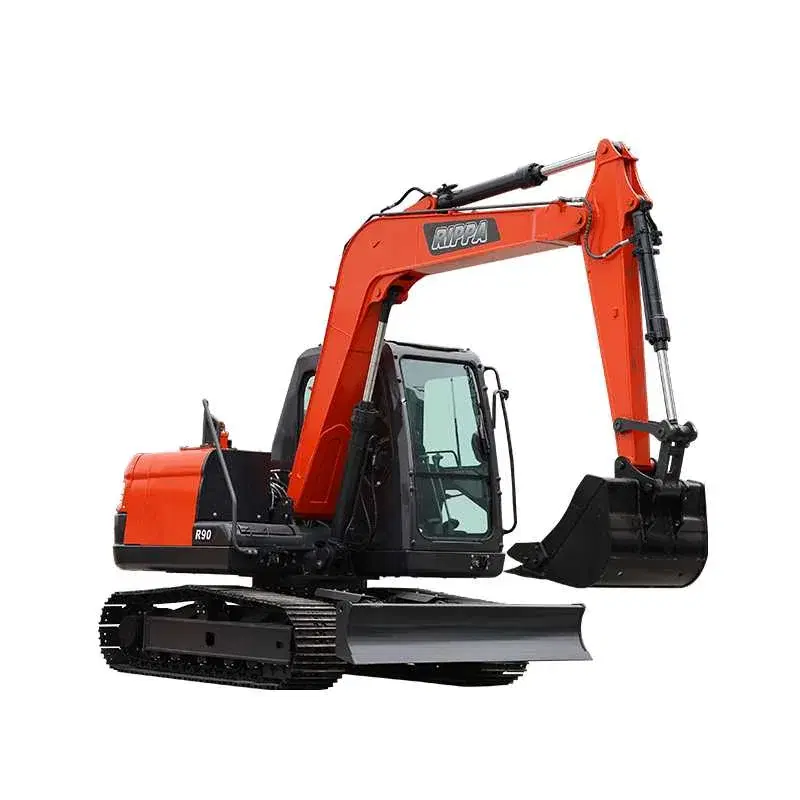

Small Excavator R90
R90 excavator has become a core competitive product for export trade with its energy-efficient engine, advanced electronic control hydraulic system, enhanced structural design, comfortable driving environment, convenient maintenance system, excellent performance parameters and brand strength.
All new units come with a Rippa 12-month parts warranty.
Specifications
- Machine working weight
- 18040 (8200)
- Bucket capacity
- 9.5-11.7(0.27-0.33)
- Boom length
- 146.5(3722)
- Arm length
- 65.8(1672)
- Slewing speed
- (11.6)
- Travel speed
- 1.6-2.7(2.6-4.4)
- Bucket digging force
- 12814 (57)
- Arm digging force
- 8768(39)
- Cab height
- in (mm)
- Tail slewing radius
- 70.9(1802)
- Counterweight level
- in (mm)
- Track length
- 108.3(2752)
- Track width
- 90.9 (2310)
- Track shoe width
- 17.8 (452)
- Minimum ground clearance
- 14.4 (367)
- Maximum digging range
- 137.9(6502)
- Maximum digging range on the ground
- 250.9(6372)
- Maximum digging depth
- 164.3(4172)
- Maximum unloading height
- 207(5257)
- Maximum vertical wall depth that can be dug
- 104.8 (2662)
- Engine
- Yanmar 4TNV98L/Yanmar 4TNV98C
- Power
- 60.3(45)
- Multi-way valve
- HYTEK
- Hydraulic pump
- HYTEK
- Travel motor
- ZHTE
- Slewing motor
- ZHTE
Features & Highlights

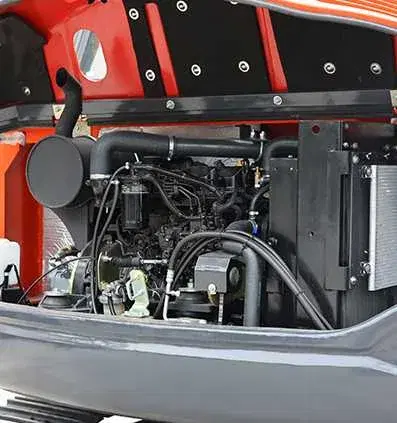

Energy-efficient engine
Equipped with YANMAR 4TNV98L engine, it provides powerful power support while maintaining efficient fuel economy. The engine has superior performance, high combustion temperature, significantly improved fuel efficiency, and environmentally friendly emissions.

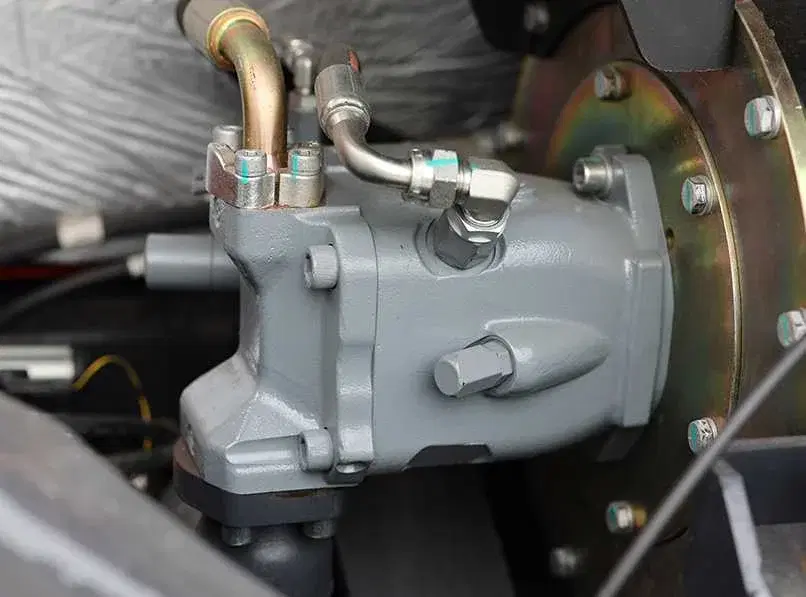

Rexroth and Doosan hydraulic pumps
The selling point of Rexroth hydraulic pumps is their high performance, precise control, environmental protection and energy saving, and global service network. They are suitable for high-end excavators and users who need complex operations, and customers who focus on high efficiency and long-term economic benefits. Doosan hydraulic pumps are more suitable for customers who need strong reliability and cost control due to their strong power, stable output, high cost performance and adaptability to harsh environments, especially in medium-sized excavators and high-load operations. Both have their own characteristics and can meet the needs of different markets and customers.

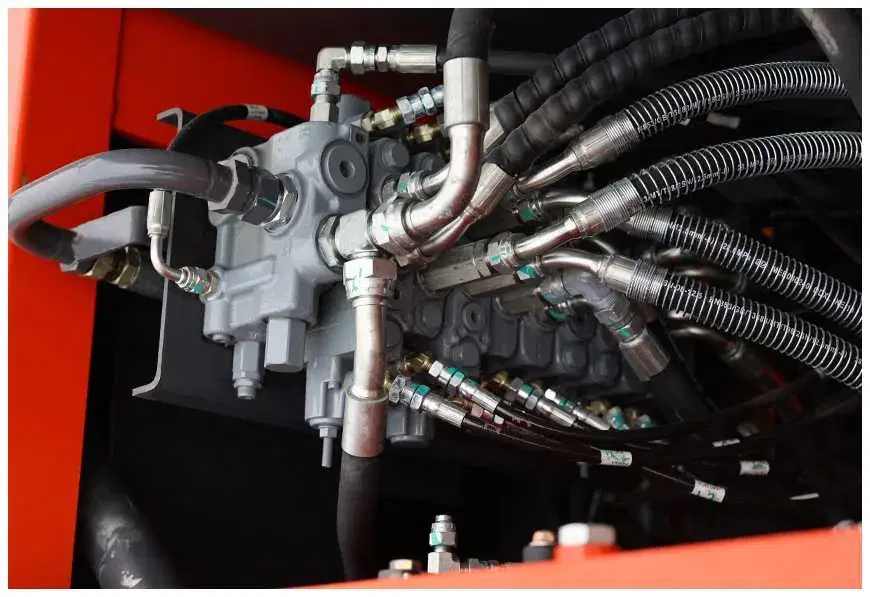

Multi-way valve
The multi-way valve allows the operator to precisely control the various hydraulic functions of the excavator, realize the combined control of multiple hydraulic channels, make the operation more flexible, thereby improving work efficiency and reducing operation time. The multi-way valve can improve the versatility of the equipment, reduce hydraulic loss and meet different work needs by distributing hydraulic oil to different actuators (such as bulldozing, digging, grabbing, etc.).
Multipurpose Tool Carrier
The R90 excavator has become a core competitive product in export trade with its efficient and energy-saving engine, advanced electronically controlled hydraulic system, enhanced structural design, comfortable driving environment, convenient maintenance system, excellent performance parameters and brand strength.
Contact Us Today
Interested in the Small Excavator R90? Send us a message and we'll get back to you with pricing, availability and finance options.
