Rippa · Large excavators

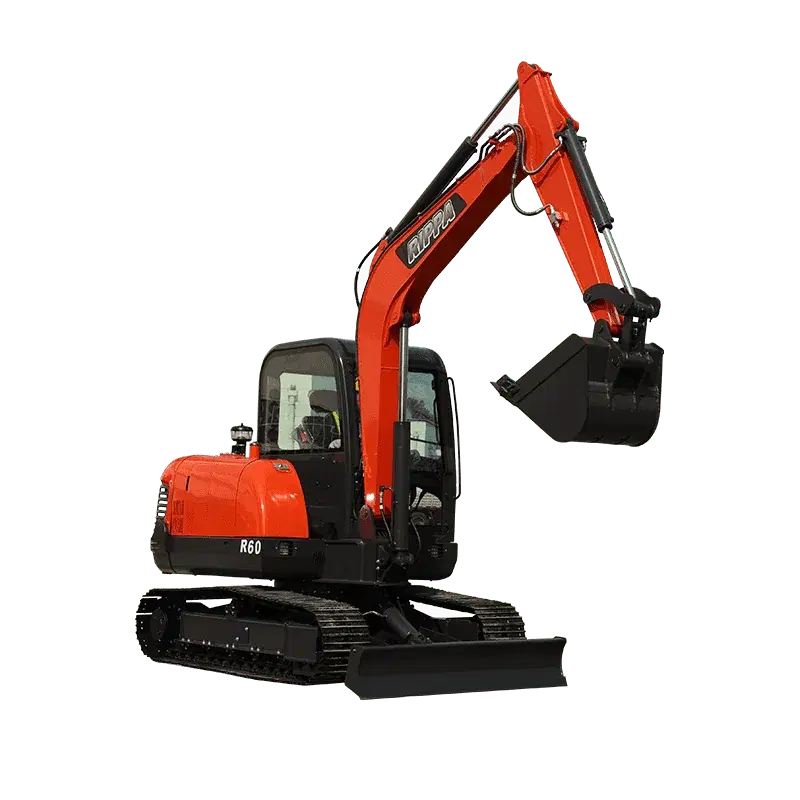

Small Excavator R60
The R60 small excavator has advantages in performance, comfort, economy, convenience, after-sales service, etc., and can meet the diverse needs of customers in the international market.
All new units come with a Rippa 12-month parts warranty.
Specifications
- Machine working weight
- 13200(6000)
- Bucket capacity
- 3.2-6.2 (0.09-0.175)
- Boom length
- 118.1(3000)
- Arm length
- 63(1600)
- Slewing speed
- (9)
- Travel speed
- 2.6/1.4 (4.16\2.3)
- Bucket digging force
- 9892(44)
- Arm digging force
- 6519(29)
- Cab height
- 101.6(2580)
- Tail slewing radius
- 65(1650)
- Counterweight level
- 27.6(700)
- Track length
- 100 (2540)
- Track width
- 74(1880)
- Track shoe width
- 15.7(400)
- Minimum ground clearance
- 15.7(400)
- Maximum digging range
- 242.1 (6150)
- Maximum digging range on the ground
- 242.1(6150)
- Maximum digging depth
- 153.1(3890)
- Maximum unloading height
- 159.8(4060)
- Maximum vertical wall depth that can be dug
- 119.1 (3025)
- Engine
- Yanmar 4TNV98C/4TNV94L
- Power
- 51 (38.1)
- Multi-way valve
- HYTEK
- Hydraulic pump
- HYTEK
- Travel motor
- ZHTE
- Slewing motor
- Fujikoshi
Features & Highlights

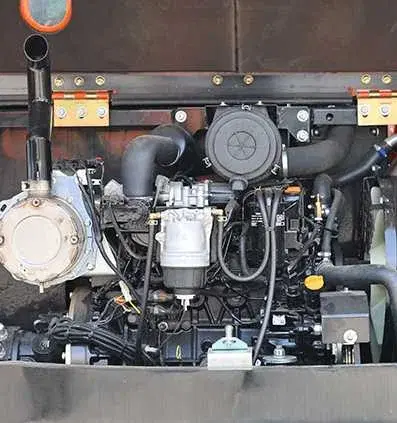

Energy-efficient engine
Equipped with Yanmar 4TNV94L engine, it has high efficiency and stable performance. It has been proven by the market and provides strong power support for driving. The electronically controlled hydraulic system is adopted to reduce fuel consumption by up to 7% and pursue efficient fuel economy. The main pump and main valve are electronically controlled to achieve precise control of hydraulic output, reduce system energy consumption loss, and significantly improve the fuel efficiency of the excavator.

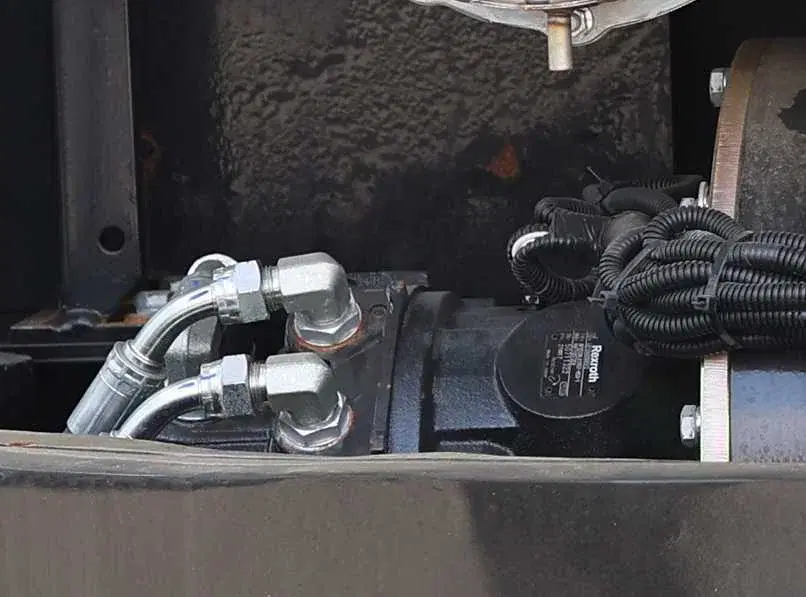

Doosan main pump
The Korean Doosan hydraulic oil pump and other oil filtration systems enhance the fuel filtration performance, greatly improve the fuel efficiency and utilization rate. The layout structure is more compact and maintenance is more convenient.

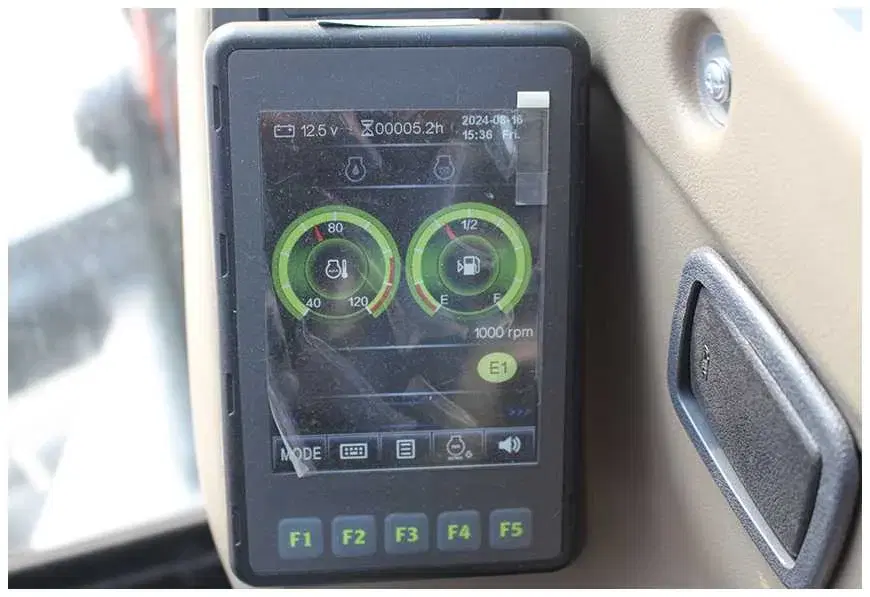

Intelligent control system
Fully electronic control handles and pedals achieve precise and convenient operation. Electronic feedback signals improve system response speed, quickly respond to customer needs, and improve work efficiency.
Multipurpose Tool Carrier
The R60 small excavator has advantages in performance, comfort, economy, convenience and after-sales service, which can meet the diverse needs of customers in the international market.
Contact Us Today
Interested in the Small Excavator R60? Send us a message and we'll get back to you with pricing, availability and finance options.
