Rippa · Large excavators

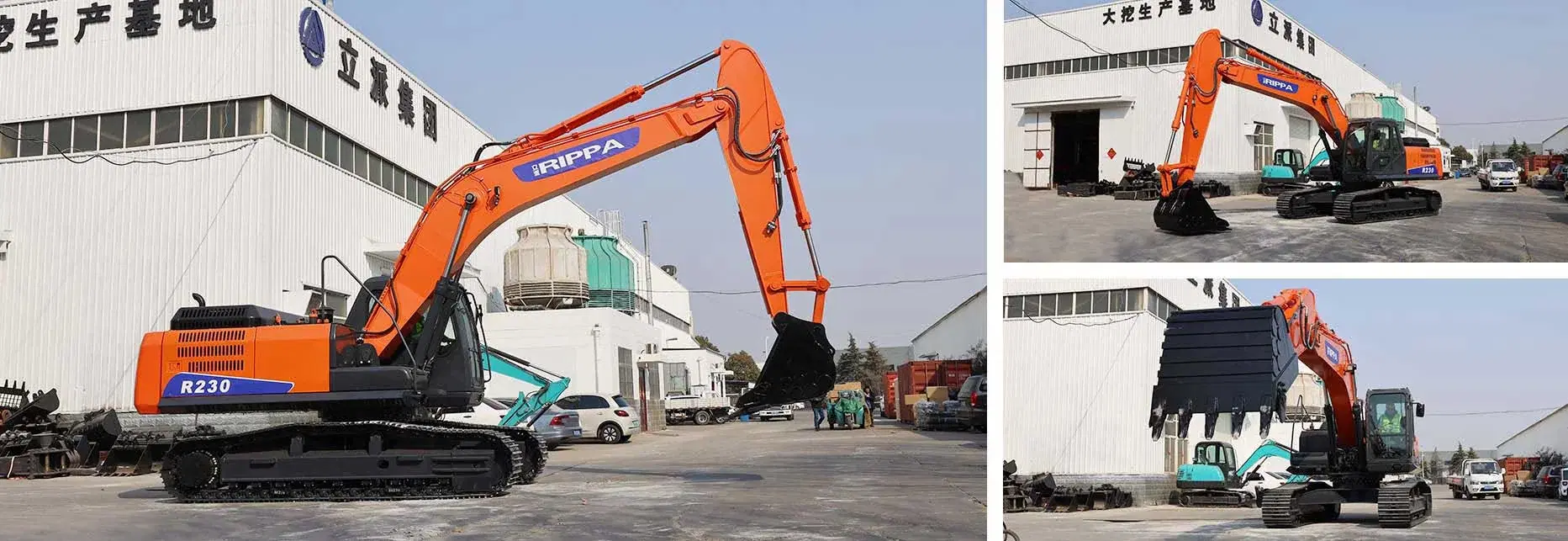

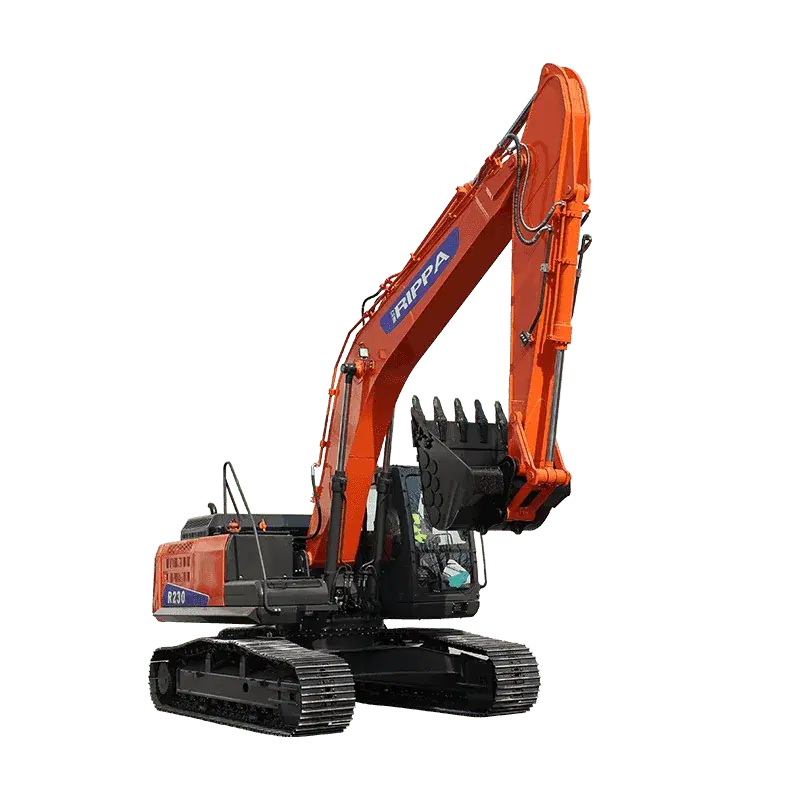

Large Excavator R230
The advantages of the R230 large excavator in terms of power performance, production efficiency, quality durability, operating comfort, maintenance convenience, and after-sales service support will help attract the attention of potential customers for export trade.
All new units come with a Rippa 12-month parts warranty.
Specifications
- Machine working weight
- 47300 (21500)
- Bucket capacity
- 17.7-45.2(0.5-1.28)
- Boom length
- 244.4(5700)
- Arm length
- 114.2(2900)
- Slewing speed
- (12.4)
- Travel speed
- 1.9-2.8 (3.1-4.5)
- Bucket digging force
- 30619(136.2)
- Arm digging force
- 21806 (97)
- Cab height
- 118.1(3000)
- Tail slewing radius
- 108.3(2750)
- Counterweight level
- 43.5(1105)
- Track length
- 174.8 (4440)
- Track width
- 117.7(2990)
- Track shoe width
- 23.6 (600)
- Minimum ground clearance
- 18.9(480)
- Maximum digging range
- 390.2(9910)
- Maximum digging range on the ground
- 383.3(9735)
- Maximum digging depth
- 261(6630)
- Maximum unloading height
- 268.1(6810)
- Maximum vertical wall depth that can be dug
- 238(6045)
- Engine
- Cummins 6BTAA5.9/Kubota 5009
- Power
- 178.2(133)
- Multi-way valve
- HF
- Hydraulic pump
- Nakagawa/Kawasaki
- Travel motor
- ZHTE
- Slewing motor
- ZHTE
Features & Highlights

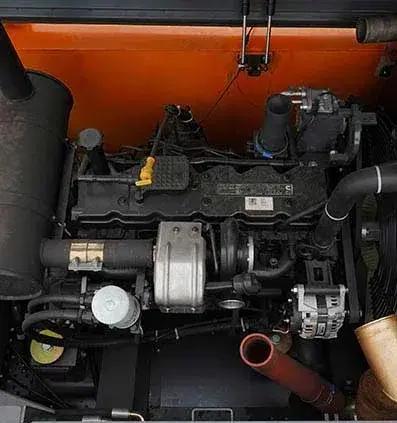

Energy-efficient engine
Equipped with an Isuzu or Cummins Euro V engine, it has high power and performance while maintaining low fuel consumption, saving 7% in fuel compared to the previous generation. The FEH electronic control hydraulic system is adopted to achieve precise hydraulic output control, reduce system energy consumption loss, and significantly improve fuel economy.

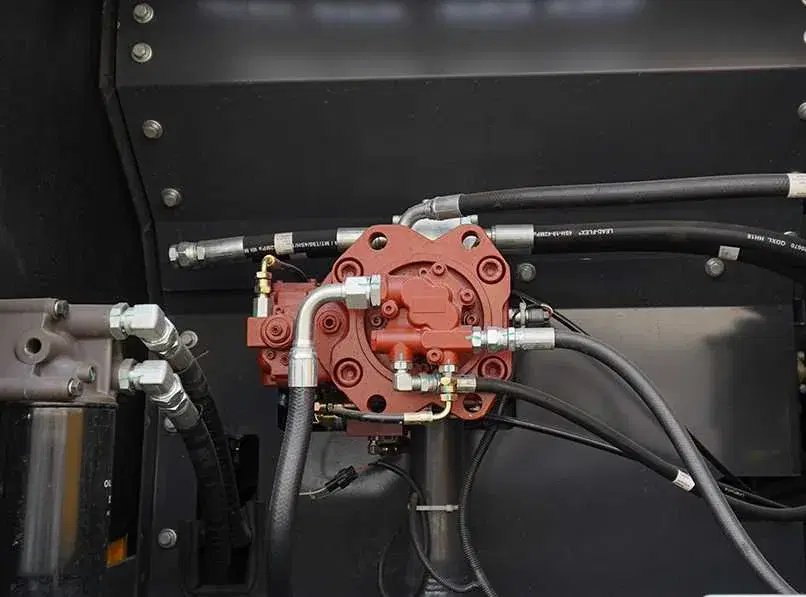

Hydraulic system
The hydraulic oil pump and other oil filtration systems are used to improve fuel filtration performance, greatly increase fuel usage, reduce system energy loss, effectively reduce fuel consumption, and save 7% fuel compared to the previous generation of models.

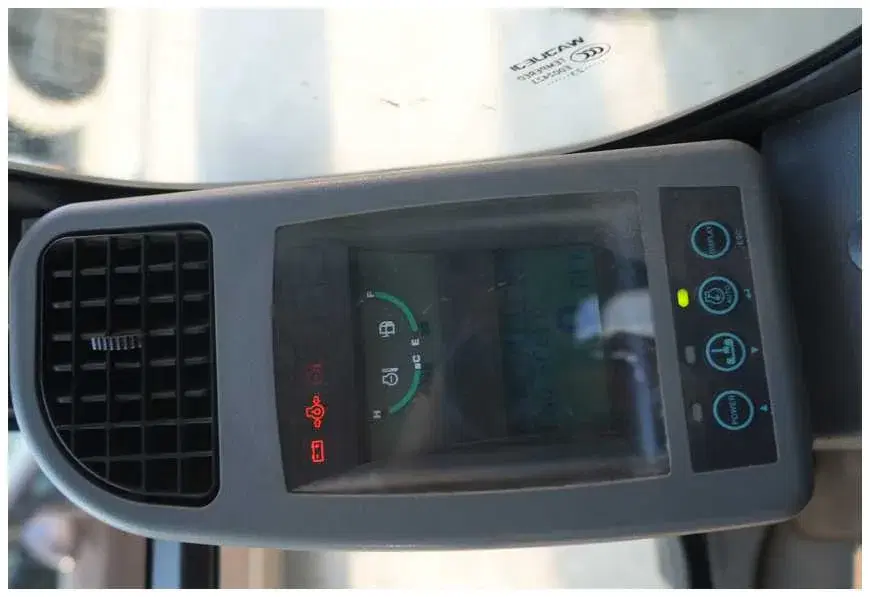

Color LCD display
High-tech color LCD display system facilitates the acquisition of equipment operation information and improves operational convenience.

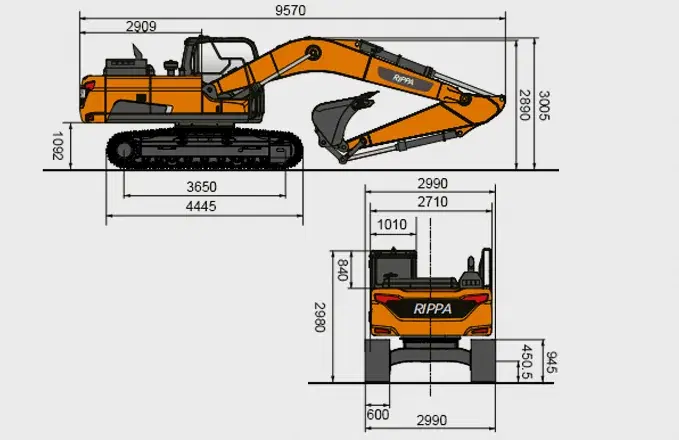

Multipurpose Tool Carrier
The advantages of the R230 excavator in terms of power performance, production efficiency, quality and durability, operating comfort, maintenance convenience and after-sales service support will help attract the attention of potential customers in export trade.
