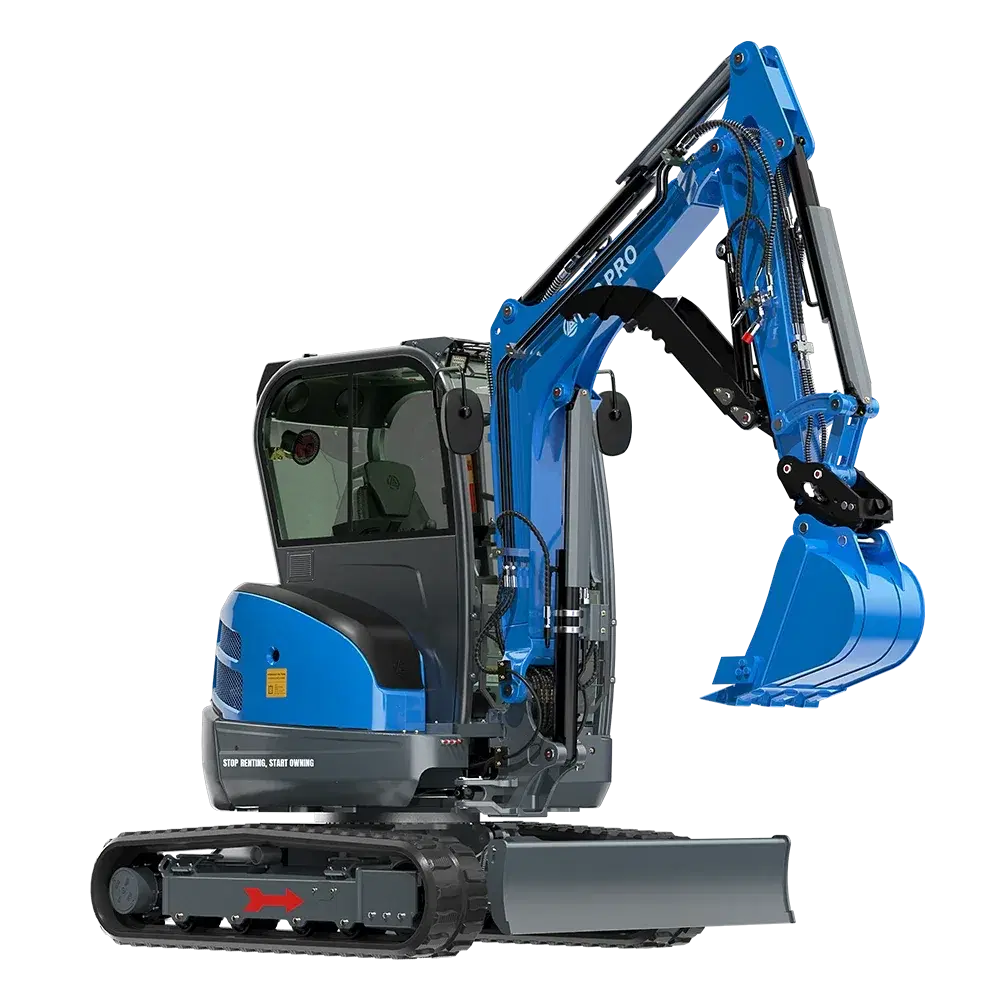

Mini Excavator R32
RIPPA R32 PRO mini excavator is semi-pro grade for bigger excavation volumes and higher productivity. It’s well matched to pool digging and light construction workflows that demand jobsite stability and efficiency. Ideal for users stepping up to larger projects and faster delivery.
All new units come with a Rippa 12-month parts warranty.
Specifications
- Machine working weight
- 3623kg
- Bucket capacity
- 0.08m³
- Travel speed low/high speed
- 0-1.8/0-2.8Km/h
- Gradeability
- 30%
- Ground pressure
- 36Kpa
- Maximum digging force
- 27kN
- Maximum digging radius
- 4831mm
- Maximum digging depth
- 2827mm
- Maximum digging height
- 4563mm
- Maximum unloading height
- 3181mm
- Maximum deflection angle
- 110°
- Buldozerio peilio posukio kamp
- 31°
- Engine brand
- Kubota
- Engine model
- V1505
- Maximum horsepower
- 23.3ps
- Maximum power
- 17.1kw
- Maximum speed
- 2300rpm
- Displacement
- 1.5L
- Number of cylinders
- 4
- Cooling method
- Water-cooled
- Engine oil change amount
- 5L
- Fuel form
- Diesel
- Fuel grade
- 0/-10
- Theoretical fuel consumption
- 1.3-1.5L/h
- Transport length
- 2921mm
- Transport width
- 1550mm
- Transport height
- 2369mm
- Counterweight ground clearance
- 522mm
- Bucket width
- 400mm
- Boom length
- 2220mm
- Arm length
- 1620mm
- Bulldozer blade width
- 1550mm
Features & Highlights

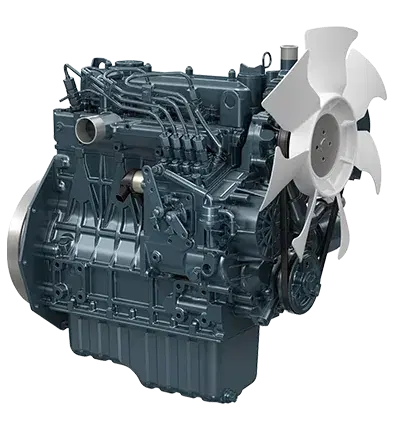

Powerful Performance
Equipped with Kubota V1505 engine, it has the characteristics of high efficiency, low noise and low emission, and complies with EPA4 and Euro 5 environmental standards. The maximum horsepower is 25ps (18.5kW), ensuring strong power output while achieving energy saving and environmental protection.

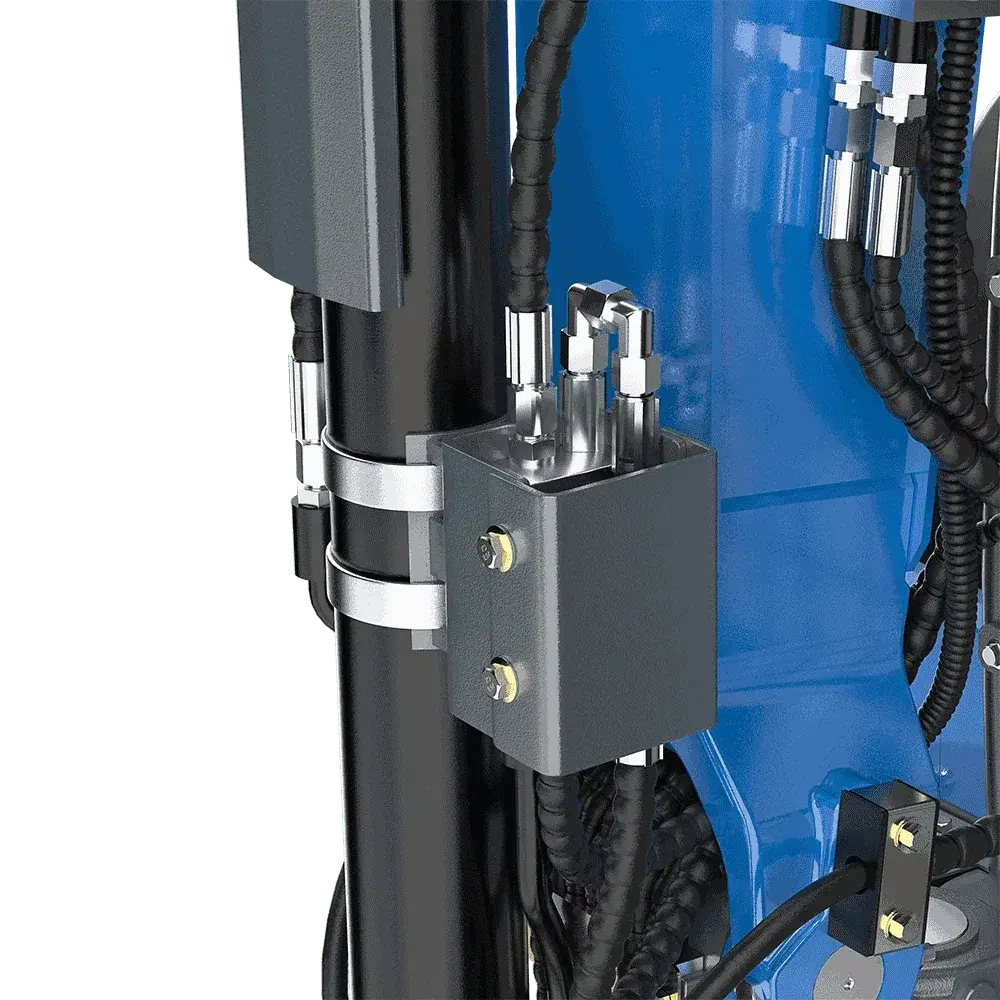

Explosion-Proof Valve
The R32’s explosion-proof valve instantly locks one-way flow if the boom cylinder feed line ruptures, cutting off hydraulic oil to prevent rapid boom drop. This reliable safety valve protects operators and equipment from crushing injuries and structural damage, ensuring secure, controlled shutdown in hose-failure scenarios.

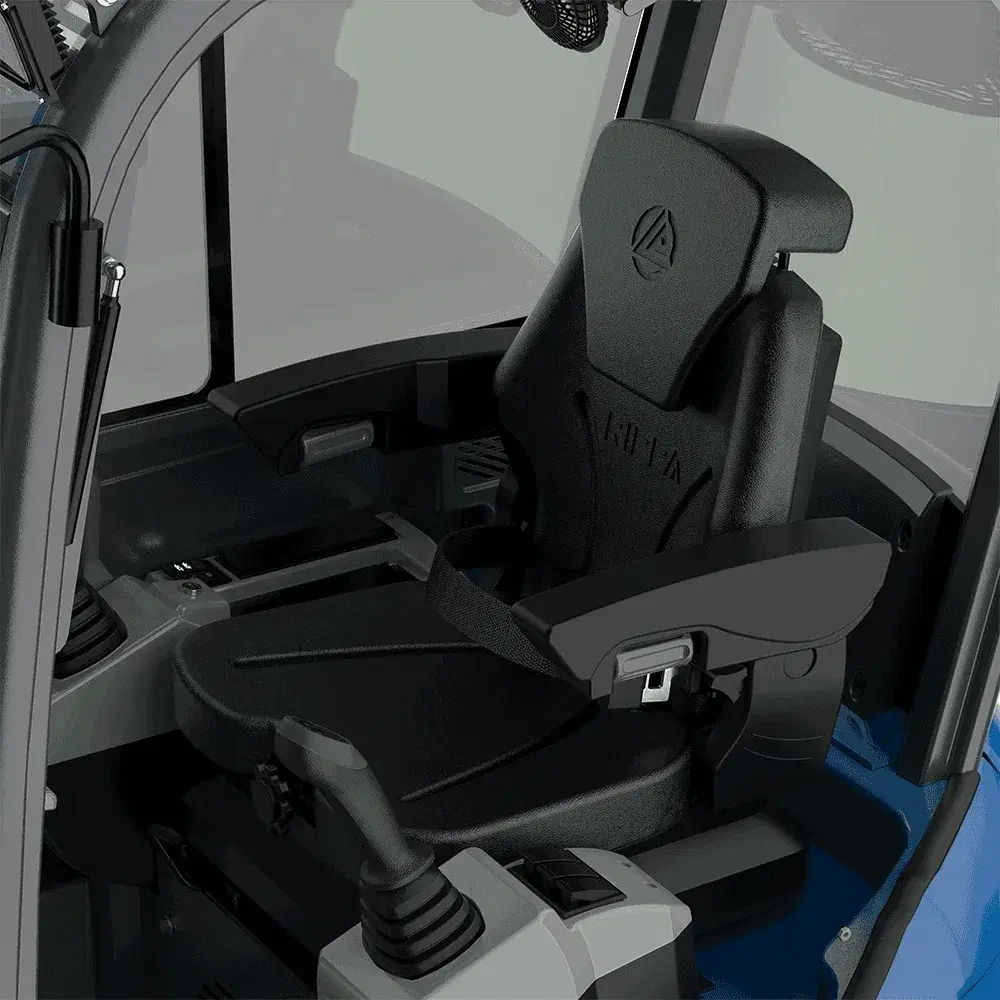

RIPPA R32 Air Seat
Experience premium comfort with the RIPPA R32 air seat. Adjustable pneumatic cushioning lets operators set the ideal pressure for posture and ride. Excellent vibration damping, shock absorption, and anti-vibration design reduce fatigue and improve safety during long shifts. Features a high-back profile with armrests and durable finish for professional cab environments.
Excellent basic performance
The R32 mini excavator has strong competitiveness in export trade with its core selling points such as high performance, high energy efficiency, easy operation, safety and comfort, easy maintenance, environmentally friendly design, rich configurations and options, and brand trust.
