Rippa · Mini excavators

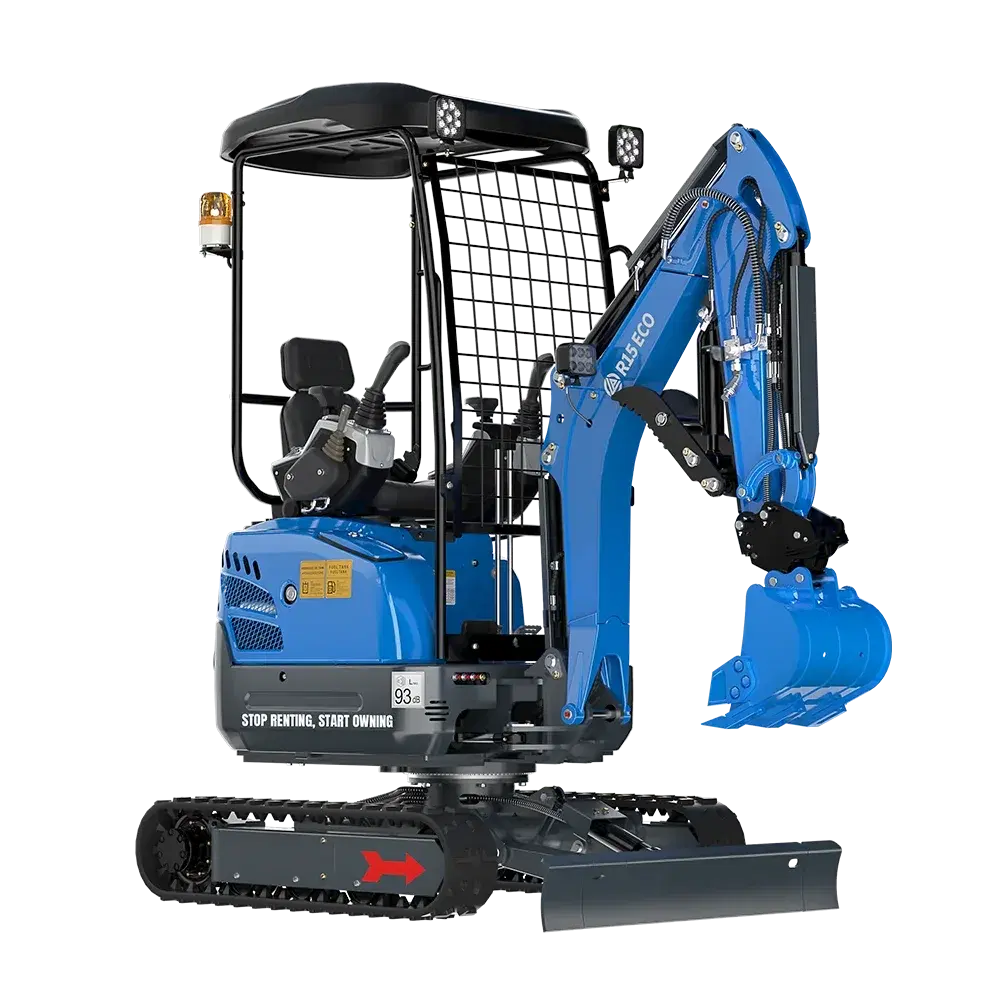

Mini Excavator R15
RIPPA R15 ECO mini excavator is a balanced all-rounder for home infrastructure projects. It supports structured workflows—dig, shape, finish—while staying manageable in residential environments. Ideal for homeowners and small farmers who want one machine to cover most property jobs.
All new units come with a Rippa 12-month parts warranty.
Specifications
- Machine working weight
- 1532kg
- Bucket capacity
- 0.018m³
- Travel speed low/high speed
- 0-1.5/0-2.5km/h
- Gradeablity
- 30%
- Ground pressure
- 31.4kpa
- Maximum diging force
- 10.4KN
- Maximum digging radius
- 3274mm
- Maximum digging depth
- 1807mm
- Maximum digging height
- 3046mm
- Maximum unloading height
- 2277mm
- Maximum deflection angle
- 92°
- Track extension range
- 900-1200mm
- Engine brand
- Kubota
- Engine model
- D722
- Maximum horsepower
- 13.9ps
- Maximum power
- 10.2kw
- Maximum speed
- 2500rpm
- Displacement
- 0.719L
- Number of cylinders
- 3
- Cooling method
- Water-cooled
- Engine il change amount
- 35L
- Fuel form
- Dlesel
- Fuel grade
- 0/-10
- Theoretical fuel consumption
- 1.1-15L/h
- Transport length
- 2327mm
- Transport width
- 983mm
- Transport height
- 2243mm
- Counterweight ground clearance
- 427mm
- Bucket width
- 400mm
- Boom length
- 1477mm
- Arm length
- 800mm
- Bulldozer blade width
- 1024mm
Features & Highlights

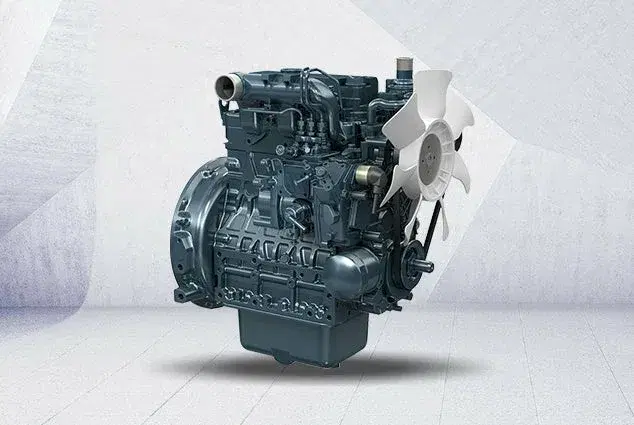

Strong power and high energy efficiency
Equipped with the original imported Kubota D722 three-cylinder water-cooled diesel engine with a maximum output power of 10.2kW, it performs excellently in mini excavation equipment, has stable and reliable power output, and can adapt to various working conditions.

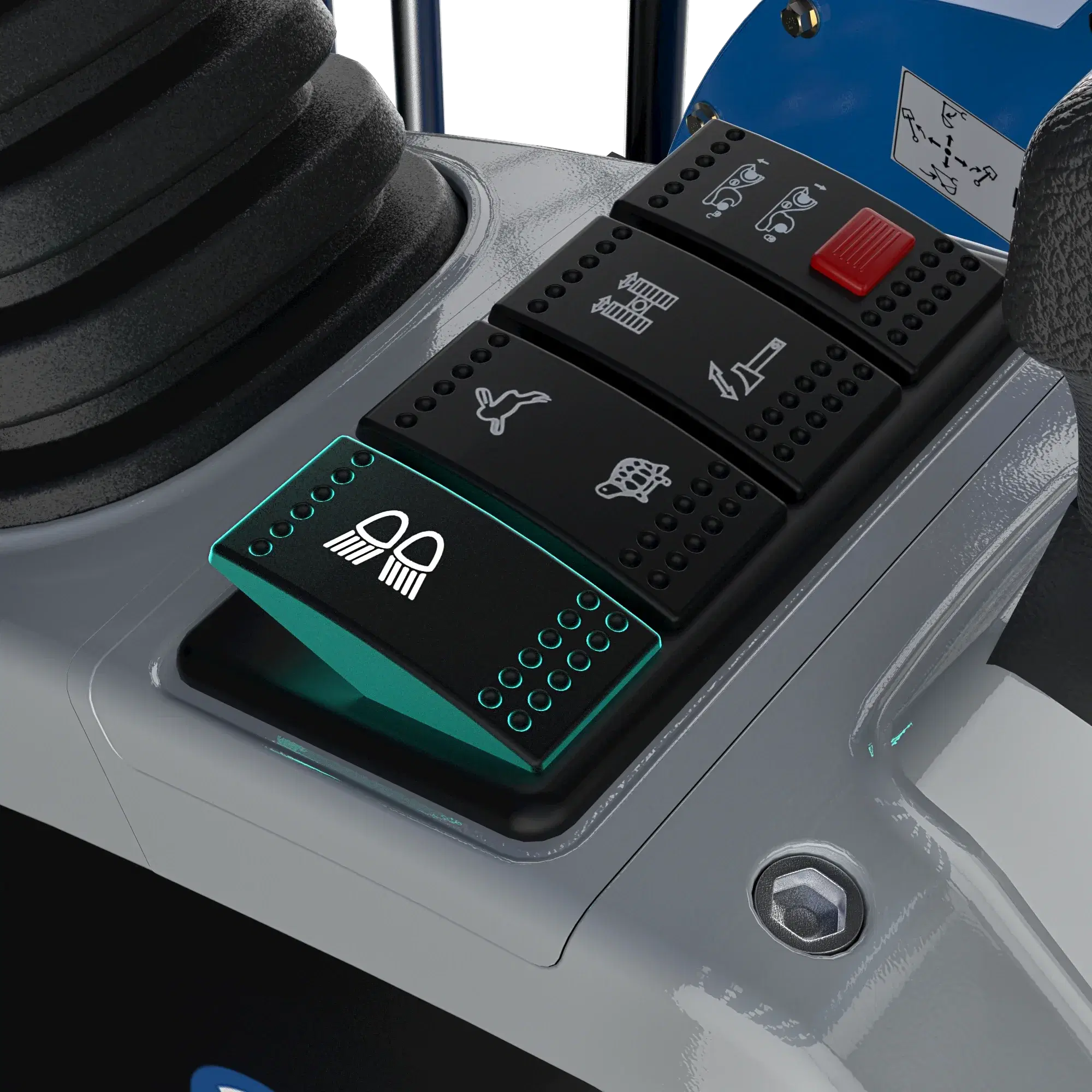

High and low speed walking
The excavator's high- and low-speed travel function is designed to meet the travel speed and traction requirements under different working conditions. Simply put, through the hydraulic system adjustment, the machine can select high or low speed mode when needed.

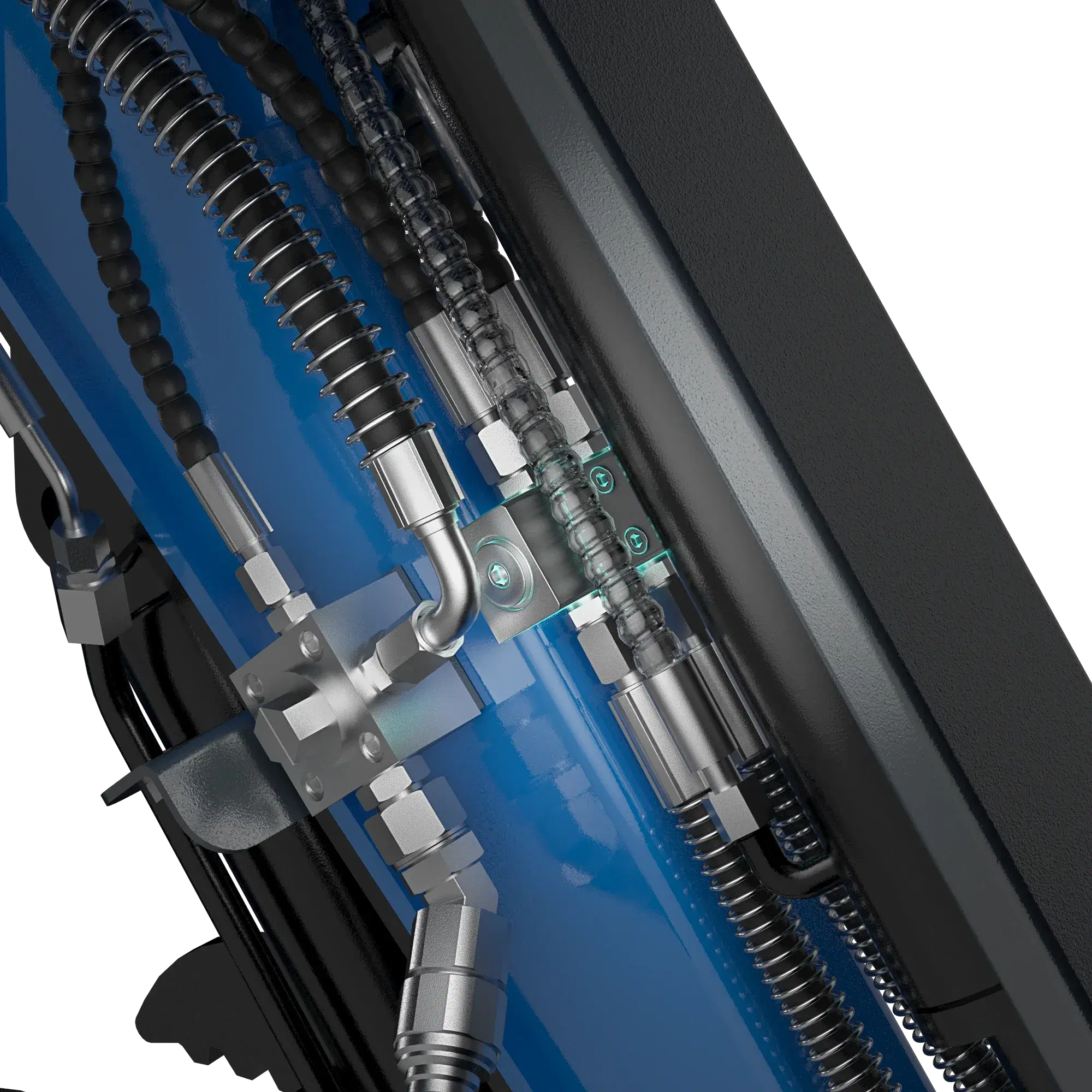

Four-way broken oil pipe with quick connector
Four-way crushing oil pipe, so that the hydraulic thumb clamp (optional), hydraulic quick change (optional) and accessories have separate oil circuits and are equipped with quick connectors to improve connection efficiency and operation convenience

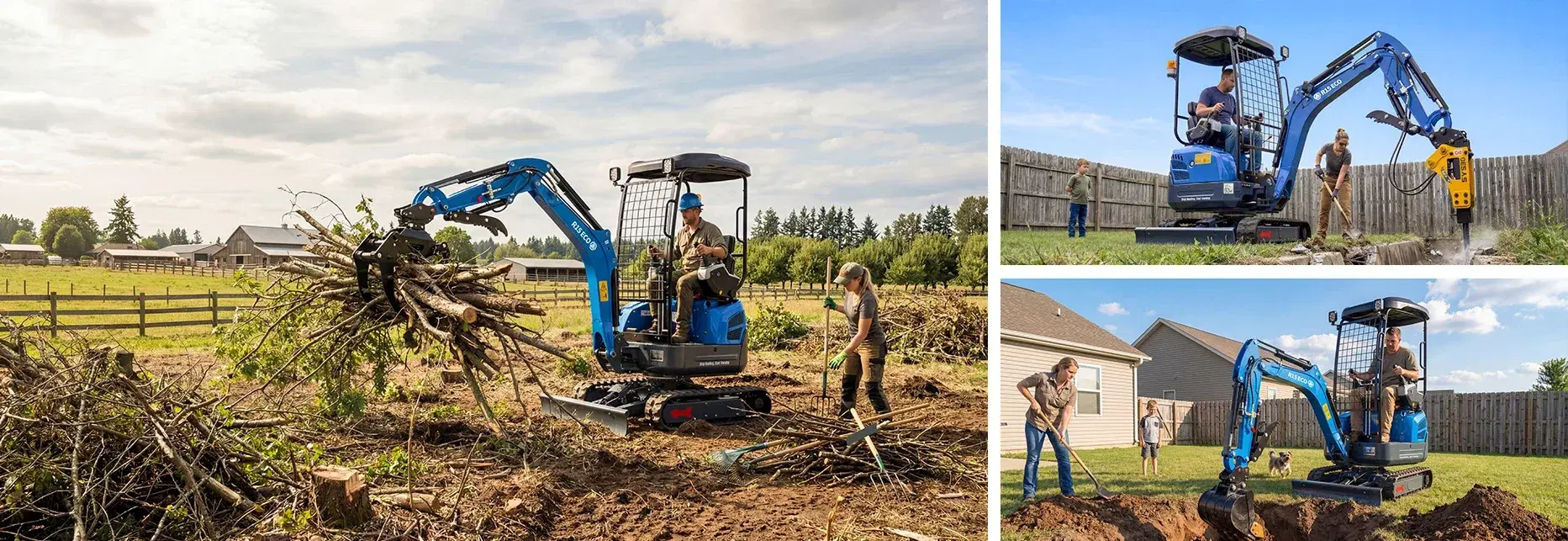

Multipurpose Tool Carrier
The R15 mini excavator has become a highlight product in export trade with its excellent performance, flexible operability, unique design, comfortable operating experience, efficient excavation ability and reliable quality, and can meet the needs of various users.
Contact Us Today
Interested in the Mini Excavator R15? Send us a message and we'll get back to you with pricing, availability and finance options.
