Rippa · Mini excavators

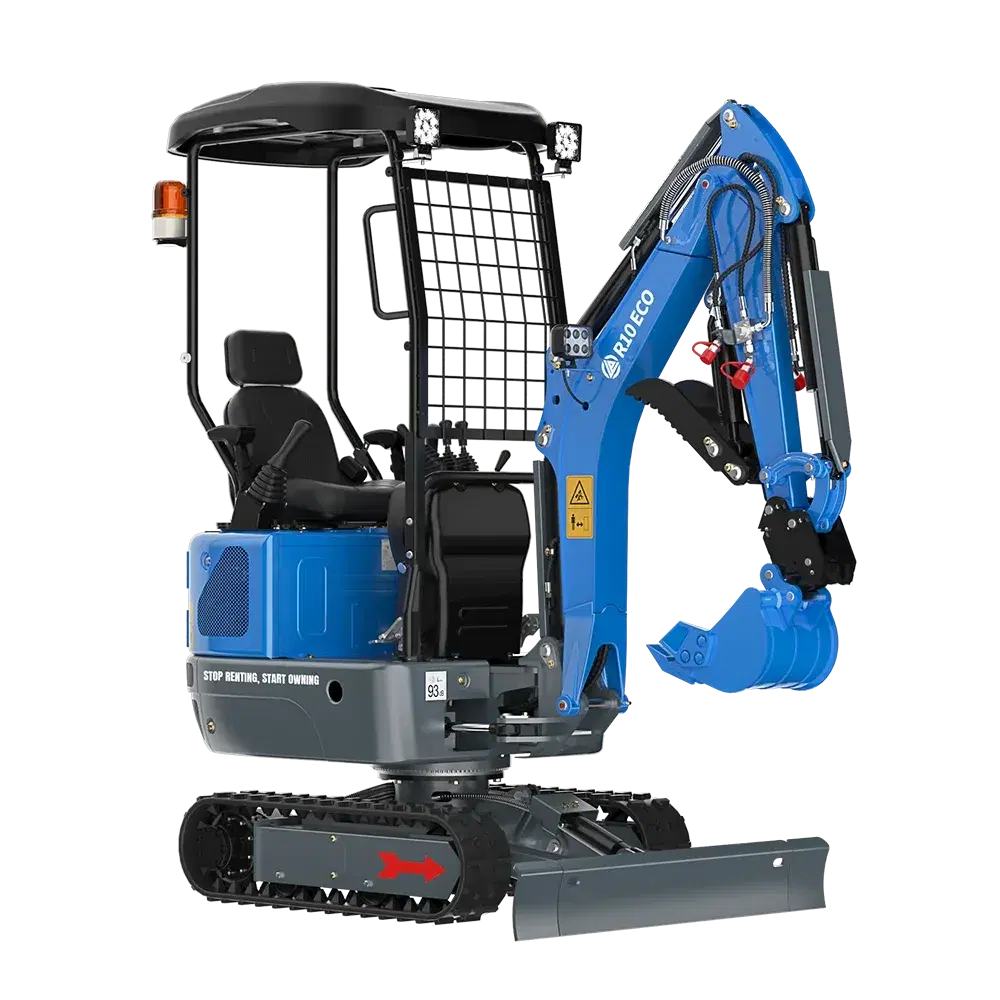

Mini Excavator R10
RIPPA R10 ECO mini excavator is a homeowner-friendly starter built for practical backyard projects. It’s well suited to fence installation work and light digging with straightforward operation and easy upkeep. Ideal for seasonal property tasks and routine improvements.
All new units come with a Rippa 12-month parts warranty.
Specifications
- Machine working weight
- 1142kg
- Bucket capacity
- 0.014m³
- Travel speed low/high speed
- 0-1.5km/h
- Gradeability
- 30%
- Ground pressure
- 2553Kpa
- Maximum digging force
- 9.2KN
- Maximum digging radius
- 3233mm
- Maximum digging depth
- 1833mm
- Maximum digging height
- 3021mm
- Maximum unloading height
- 2247mm
- Maximum deflection angle
- 121°
- Track extension range
- 900-1200mm
- Engine brand
- Kubota
- Engine model
- Z482
- Maximum horsepower
- 11.2ps
- Maximum power
- 8.2kw
- Maximum speed
- 3000rpm
- Displacement
- 0.479L
- Number of cylinders
- 2
- Cooling method
- Water-cooled
- Engine oil change amount
- 1.5L
- Fuel form
- Diesel
- Fuel grade
- 0/-10
- Theoretical fuel consumption
- 0.8-1.2L/h
- Transport length
- 2430mm
- Transport width
- 912mm
- Transport height
- 2201mm
- Counterweight ground clearance
- 361mm
- Bucket width
- 300mm
- Boom length
- 1477mm
- Arm length
- 800mm
- Bulldozer blade width
- 912-1212mm
Features & Highlights

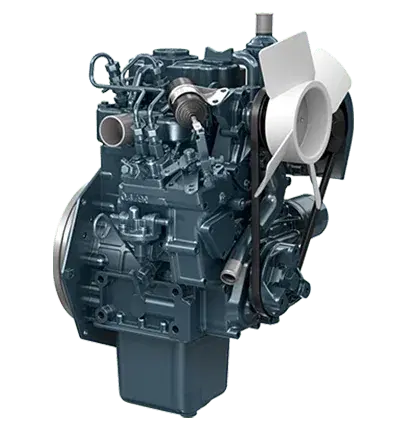

Excellent basic performance
It uses a Kubota Z482 diesel engine, which provides a powerful power of 8.2kW (11.23 horsepower) while maintaining low fuel consumption, low vibration and low noise, taking into account both environmental protection and high efficiency.

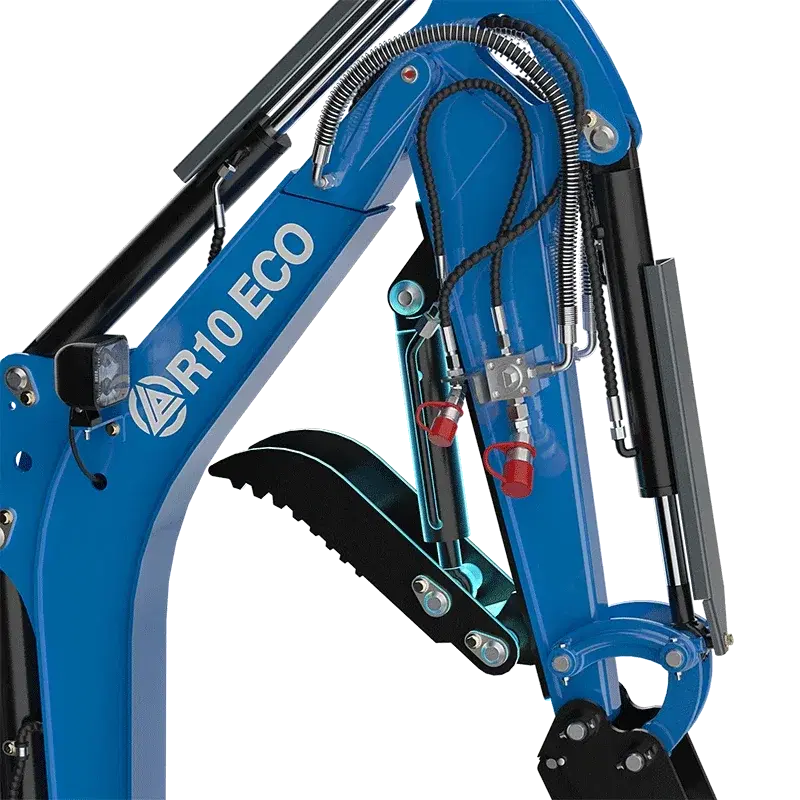

Hydraulic Thumb Clamp
The R10 mini excavator comes standard with a hydraulic thumb. Powered by the machine's hydraulic system, the paired thumbs are capable of precisely grabbing, picking up, and carrying rocks, gravel, wood, and irregular loads. Durable construction and a reinforced frame provide stable, reliable performance under continuous use, while a responsive hydraulic control system enhances efficiency and operator control. The compact design matches the mini excavator's reach without compromising strength, making the thumb an essential and efficient attachment for a variety of earthmoving and material handling tasks.

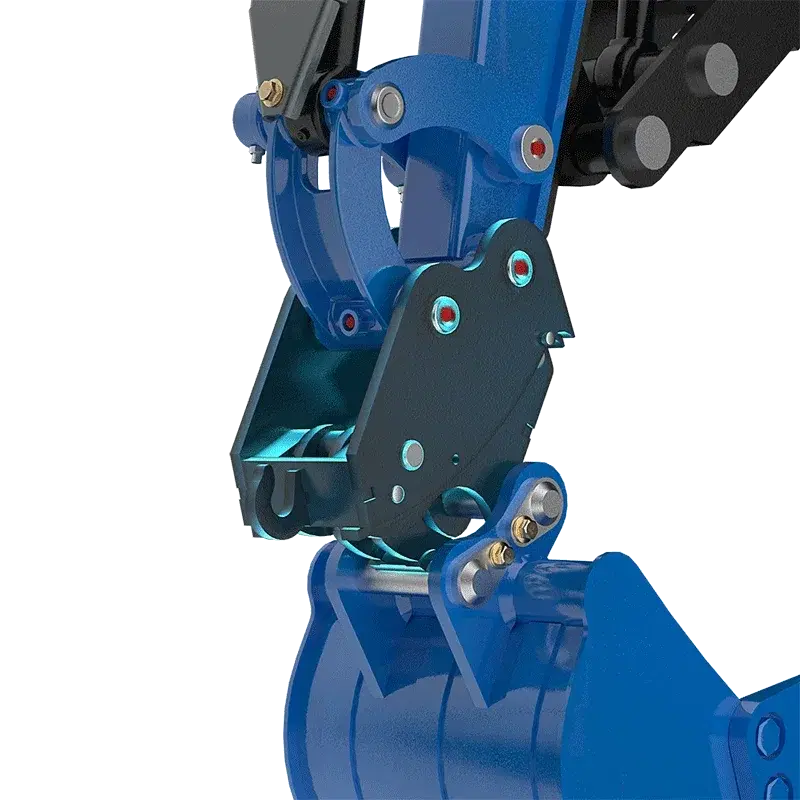

Mechanical Quick Coupler
The R10 is fitted with a factory-standard mechanical quick coupler that enables fast, tool-free attachment changes. Compatible with buckets, breakers and other implements, its rugged metal body, precision pivots and reinforced pins (visible silver bolts and red joints) ensure reliable, wear‑resistant performance. The compact U‑shaped mounting and sturdy black connection plate provide positive engagement and easy inspection, reducing downtime and boosting jobsite efficiency across digging, demolition and utility tasks.
Multipurpose Tool Carrier
The R10-5 small excavator has become an ideal choice for export trade with its excellent performance, efficient hydraulic system, outstanding operating capacity, reliable and durable design, comfortable operating experience, convenient maintainability and configuration that meets international standards.
Contact Us Today
Interested in the Mini Excavator R10? Send us a message and we'll get back to you with pricing, availability and finance options.
