Rippa · Mini excavators

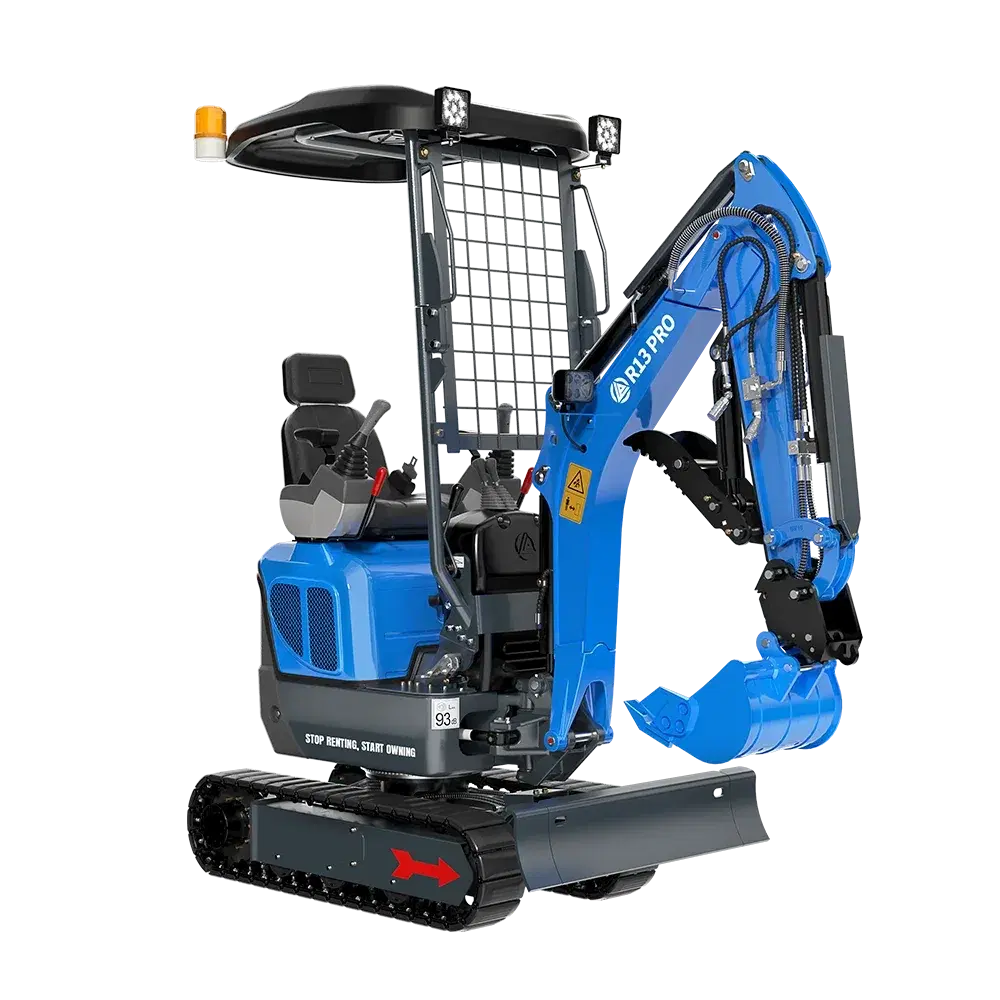

Mini Excavator R13
RIPPA R13 PRO mini excavator is a step-up home machine for longer work sessions and higher efficiency. It fits driveway repair, surface reshaping, light grading, and general digging with improved stability over entry models. Ideal for users wanting faster results without moving up too far.
All new units come with a Rippa 12-month parts warranty.
Specifications
- Operating weight
- 1323kg
- Bucket capacity
- 0.014 m³
- Travel speed low/high
- 0-18/0-2.8km/h
- Gradeability
- 30%
- Ground pressure
- 26.79 kpa
- Maximum digging force
- 98kN
- Maximum digging radius
- 3456 mm
- Maximum digging depth
- 2044 mm
- Maximum diging helght
- 2905mm
- Maximum dumping height
- 1922 mm
- Maximum deflection angle
- 105°
- Track extension range
- 750-990 mm
- Engine brand
- Kubota
- Engine model
- D722
- Maximum horsepower
- 13.9ps
- Maximum power
- 10.2 kw
- Maximum speed
- 2500 rpm
- Displacement
- 0.719L
- Number of cylinders
- 3
- Coling method
- Water-cooled
- Engine oil change amount
- 25L
- Fuel form
- Diesel
- Fuel grade
- 0/-10
- Theoreticalfulconsumption
- 1.1-15L/h
- Transport length
- 2273mm
- Transport width
- 849mm
- Transport height
- 2377mm
- Counterweight ground clearance
- 402mm
- Bucket width
- 400mm
- Boom length
- 1450mm
- Arm length
- 880mm
- Bulldozer blade width
- 750-990mm
Features & Highlights

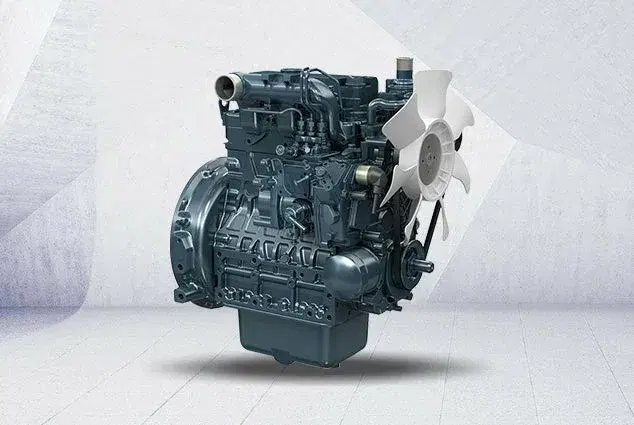

Strong power and high energy efficiency
Equipped with the original imported Kubota D722 three-cylinder water-cooled diesel engine with a maximum output power of 10.2kW, it performs excellently in mini excavation equipment, has stable and reliable power output, and can adapt to various working conditions.

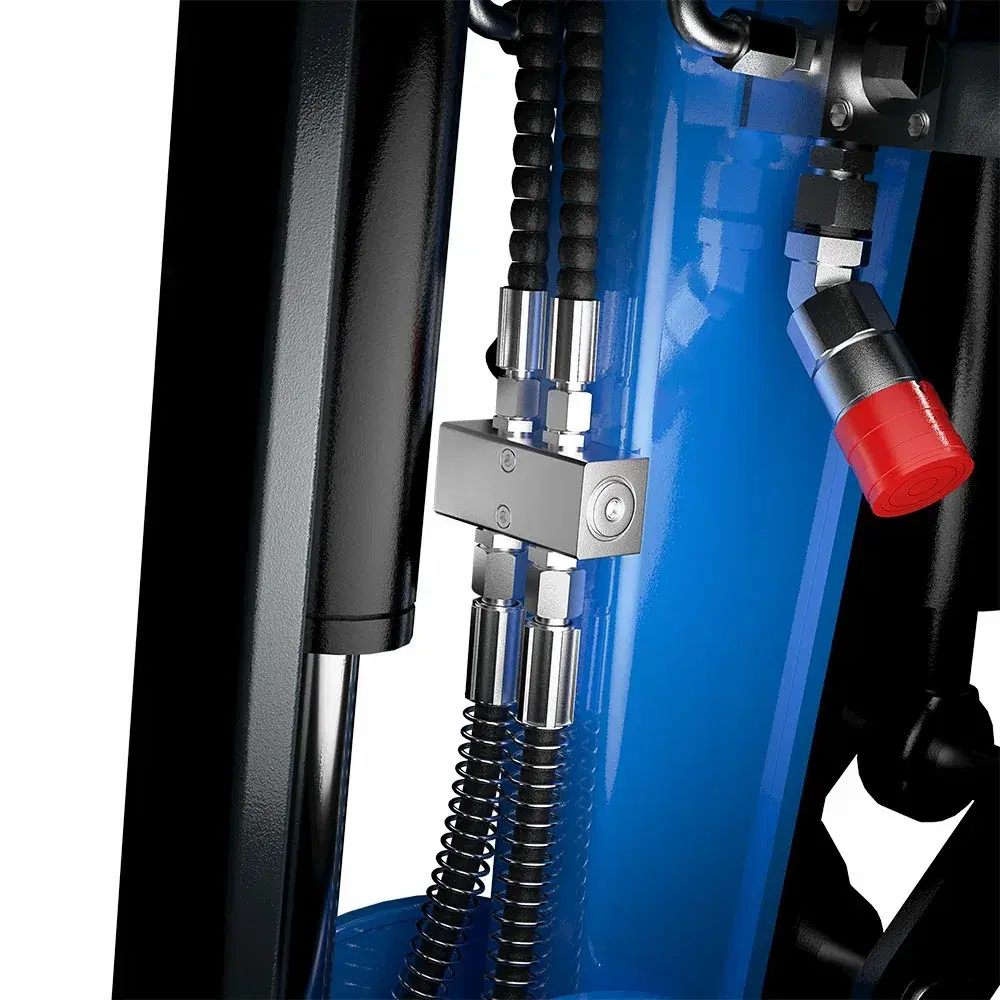

Four-way broken oil pipe with quick connector
Four-way crushing oil pipe, so that the hydraulic thumb clamp (optional), hydraulic quick change (optional) and accessories have separate oil circuits and are equipped with quick connectors to improve connection efficiency and operation convenience

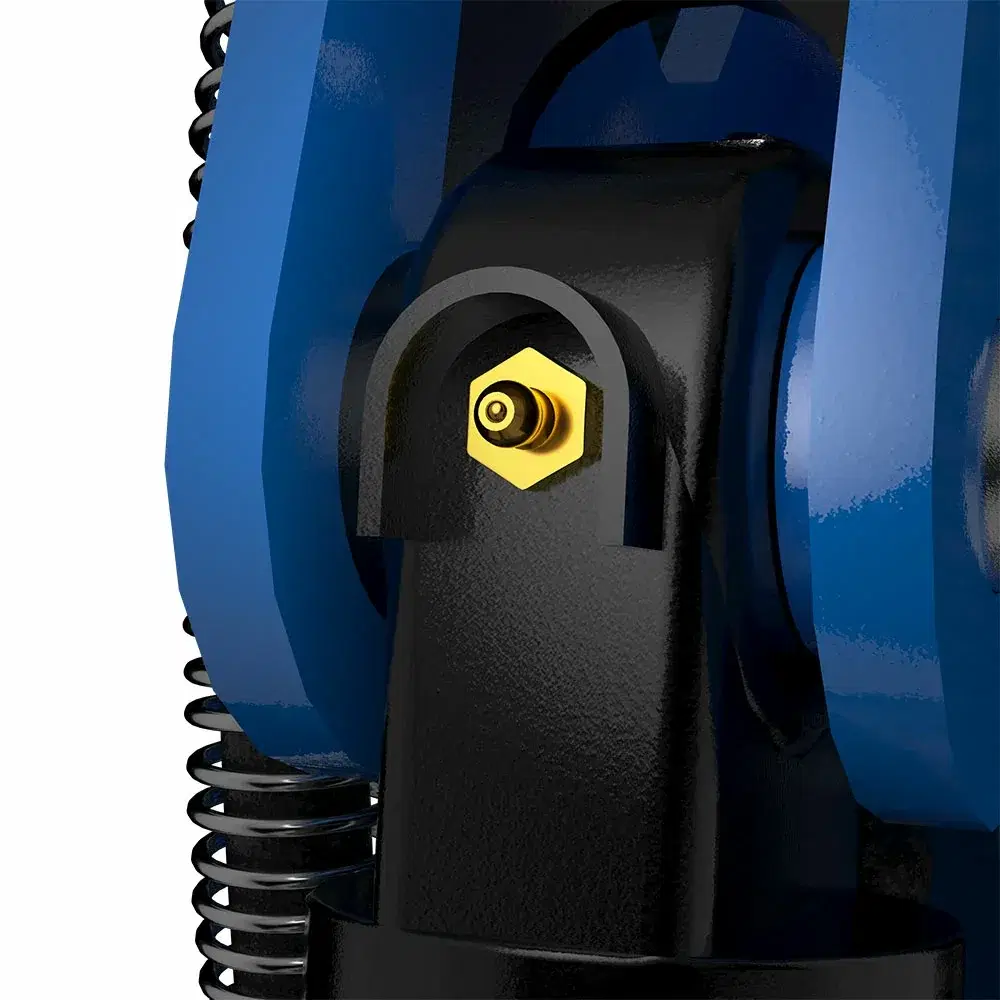

Grease
The grease ports (also called lubrication nipples or grease nipples) on an excavator's boom are primarily used to lubricate the pins and bushings, preventing dry wear and increasing service life. You mentioned "boom preview," and I understand you want to know the location of the various grease ports on the excavator's boom for easier maintenance.

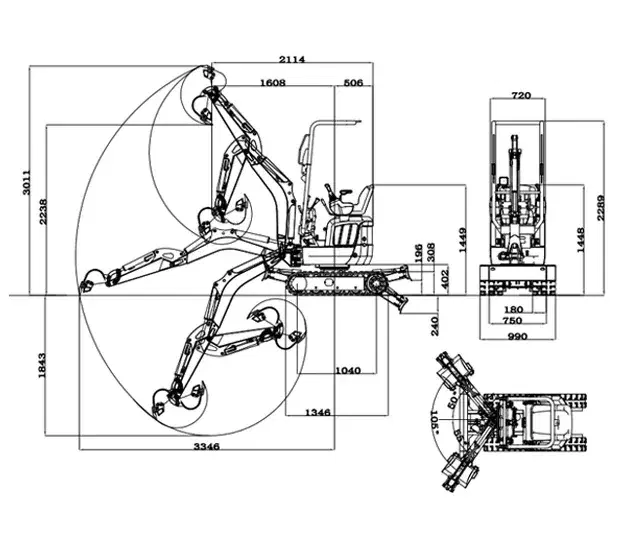

Multipurpose Tool Carrier
The R13 mini excavator has become an ideal choice for export trade with its excellent performance, efficient hydraulic system, outstanding operating capacity, reliable and durable design, comfortable operating experience, convenient maintainability and configuration that meets international standards.
Contact Us Today
Interested in the Mini Excavator R13? Send us a message and we'll get back to you with pricing, availability and finance options.
