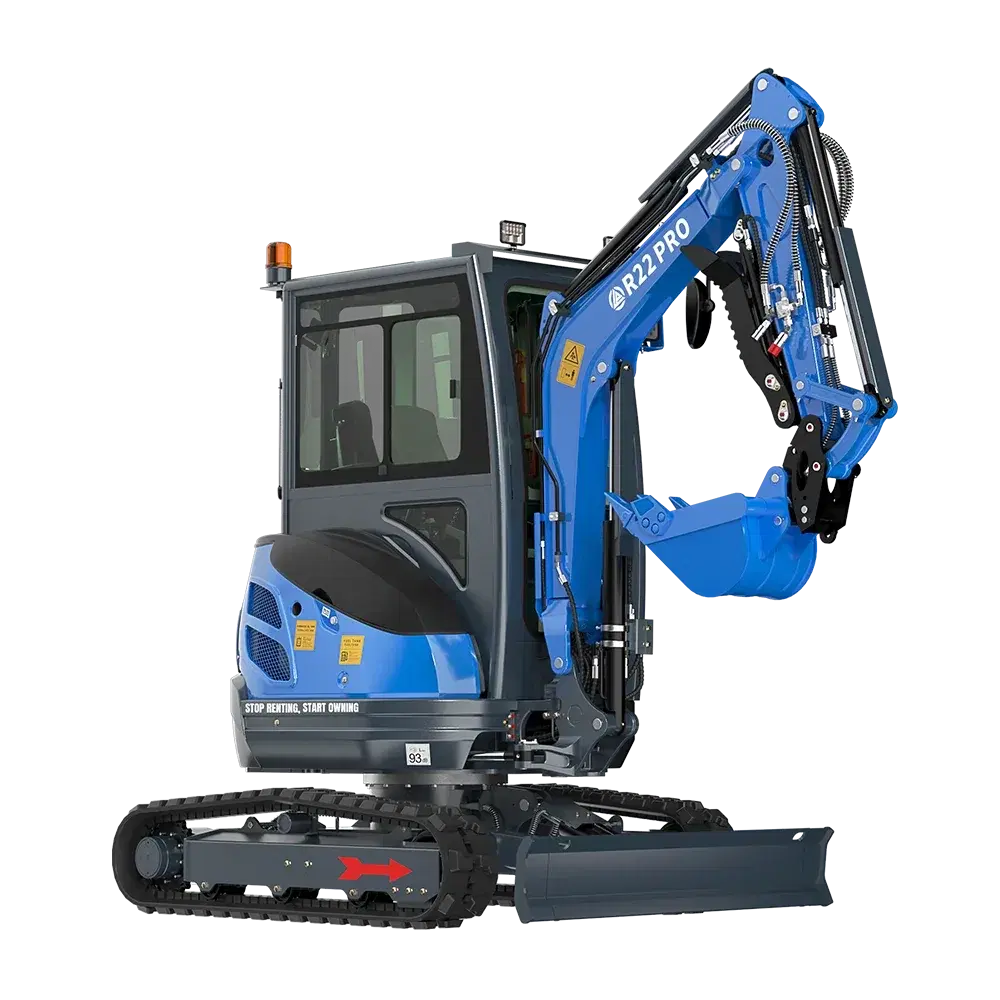

Mini Excavator R22
RIPPA R22 PRO mini excavator is stability-focused for heavier, steadier work on larger properties. It suits farm construction workflows like site prep and ongoing maintenance where uptime and consistent performance matter. Ideal for users transitioning from homeowner use to semi-pro workloads.
All new units come with a Rippa 12-month parts warranty.
Specifications
- Machine working weight
- 2539kg
- Bucket capacity
- 0.054m³
- Travel speed low/high speed
- 0-1.5/0-2.8Km/h
- Gradeability
- 30%
- Ground pressure
- 33.4kpa
- Maximum digging force
- 18.4kn
- Maximum digging radius
- 4255mm
- Maximum digging depth
- 2293mm
- Maximum digging height
- 3761mm
- Maximum unloading height
- 2496mm
- Maximum deflection angle
- 125°
- Track extension range
- 1300-1500mm
- Engine brand
- Kubota
- Engine model
- D1105
- Maximum horsepower
- 23.2ps
- Maximum power
- 17.1Kw
- Maximum speed
- 3000rpm
- Displacement
- 1.123L
- Number of cylinders
- 3
- Cooling method
- Water-cooled
- Engine oil change amount
- 4.2L
- Fuel form
- Diesel
- Fuel grade
- 0/-10
- Theoretical fuel consumption
- 1.3-1.5L/h
- Transport length
- 2824mm
- Transport width
- 1300mm
- Transport height
- 2361mm
- Counterweight ground clearance
- 510mm
- Bucket width (mm)
- 450mm
- Boom length (mm)
- 1830mm
- Arm length (mm)
- 1250mm
- Bulldozer blade width (mm)
- 1300mm
Features & Highlights

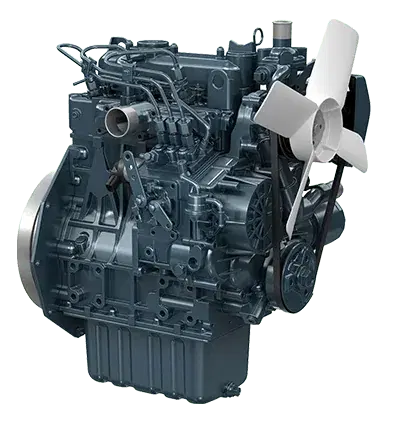

Excellent basic performance
Kubota D1105 engine has become an ideal power choice for small and medium-sized excavators with its high efficiency and energy-saving fuel economy, strong and reliable power output, good durability and ability to adapt to complex working conditions. Its low noise and easy maintenance characteristics further improve the user experience, reduce operating costs, and ensure long-term efficient operation.

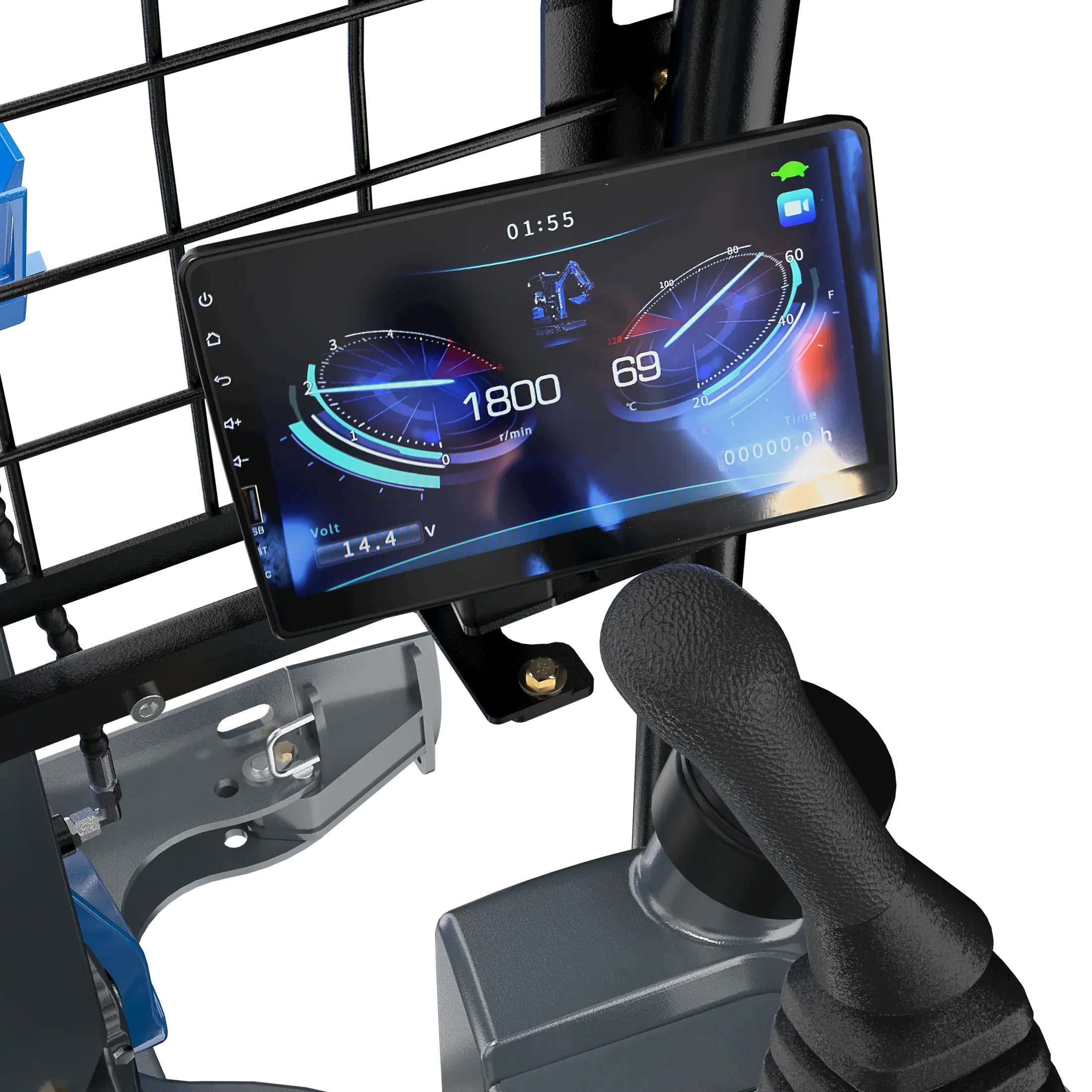

Smart display large screen
The smart large screen can display the various operating parameters of the excavator in real time, such as engine status, oil pressure, hydraulic system status, fuel consumption and temperature, etc., helping the operator to control the working status of the equipment at any time.

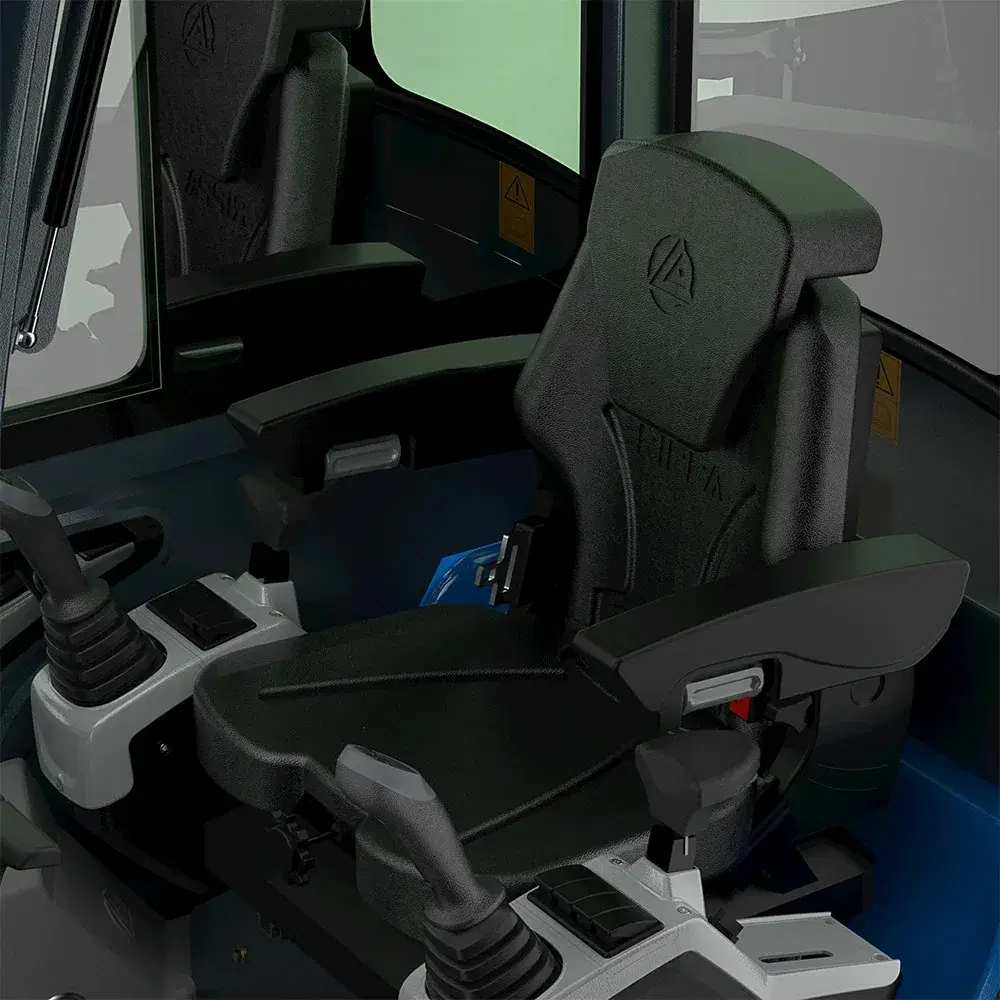

Dual-Button Control Handles
Rippa R22 dual-button control handles provide intuitive operation: the left button controls articulation/swing while the right activates the horn. Extra buttons are reserved for future function upgrades, offering flexible expansion to meet varied job needs.
Multipurpose Tool Carrier
The advantages of the R22 mini excavator in terms of environmental protection, high efficiency, safety, user-friendly design, flexibility, easy maintenance, durability and high-performance parameters help attract potential buyers in the international market.
Contact Us Today
Interested in the Mini Excavator R22? Send us a message and we'll get back to you with pricing, availability and finance options.
