Rippa · Wheel loaders

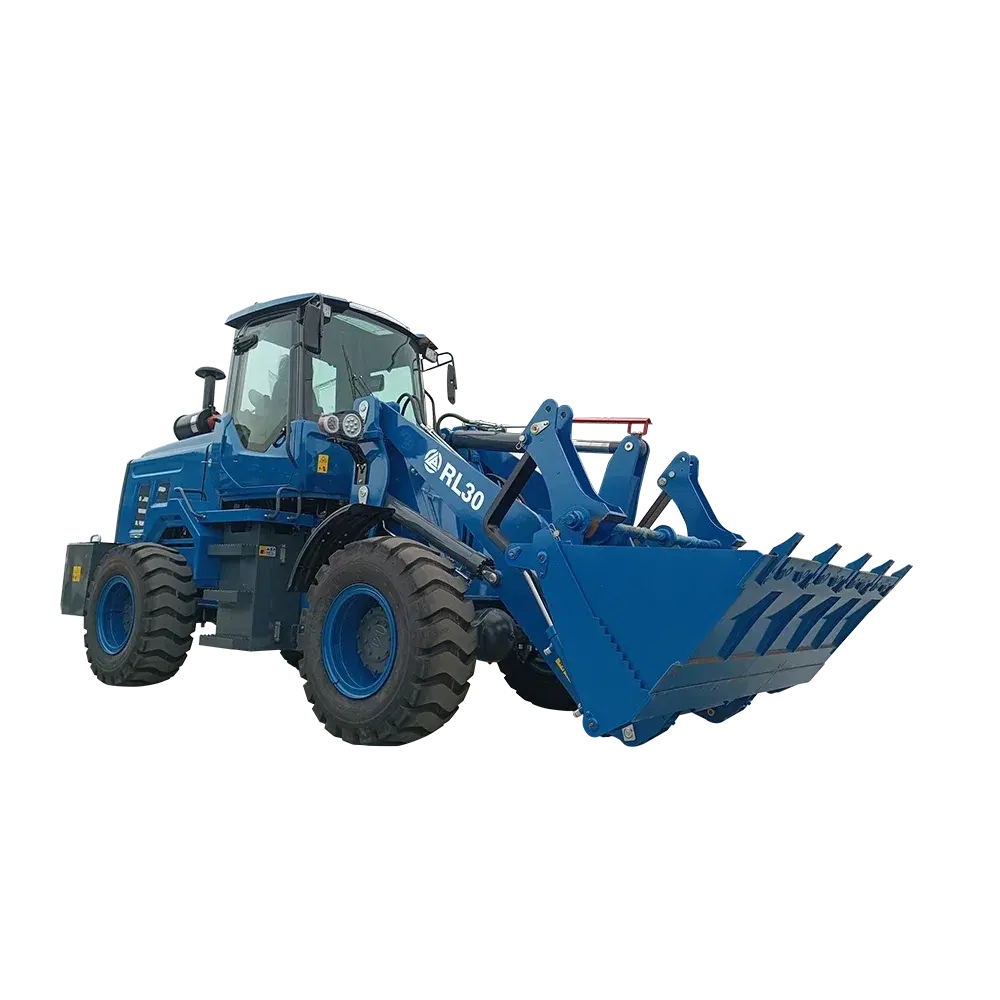

Wheel Loader RL30
RL30 wheel loader has become a high-quality engineering machinery product that has attracted much attention in the market with its high performance, high efficiency, high durability, comfortable operating environment and perfect after-sales service system.
All new units come with a Rippa 12-month parts warranty.
Specifications
- Dimensions (L × W × H)
- 8040×3060×3400mm
- Bucket Capacity
- 3m³
- Rated load
- 5000kg
- Operating Weight
- 16600kg
- Max Dumping Height
- 3500mm
- Engine Brand/Model
- WEICHAI/WP10G220E22
- Number of Cylinders
- 6
- Rated Power
- 162KW
- Transmission Model
- Automatic
- Drive Axle Model
- 50 Hub Reduction
- Number of Gear
- F2/R1
- Max. Speed
- 42km/h
- Drive mode
- 4WD
- Brake
- Air Brake
- Tyre Size
- 23.5-25
- 1*40HC Packing Quantity
- 1Unit
Features & Highlights

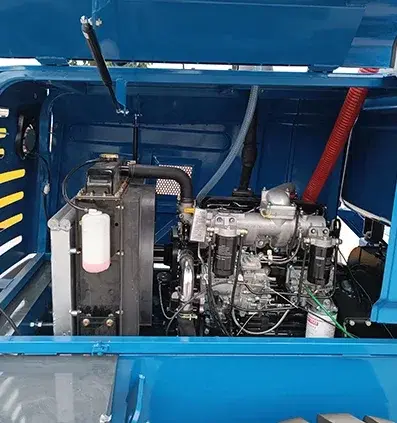

Energy-efficient engine
Equipped with Yuchai YCD4J22T-115, Cummins QSF3.8 (EPA4) and Yuchai YCF36125-S500 (Euro V) engines, it provides a powerful power output of 85KW/97KW/92KW. It adopts an electronically controlled high-pressure common rail fuel system to achieve precise combustion control, intelligently adjust the power curve, meet the needs of various working modes, and achieve high efficiency and fuel saving.

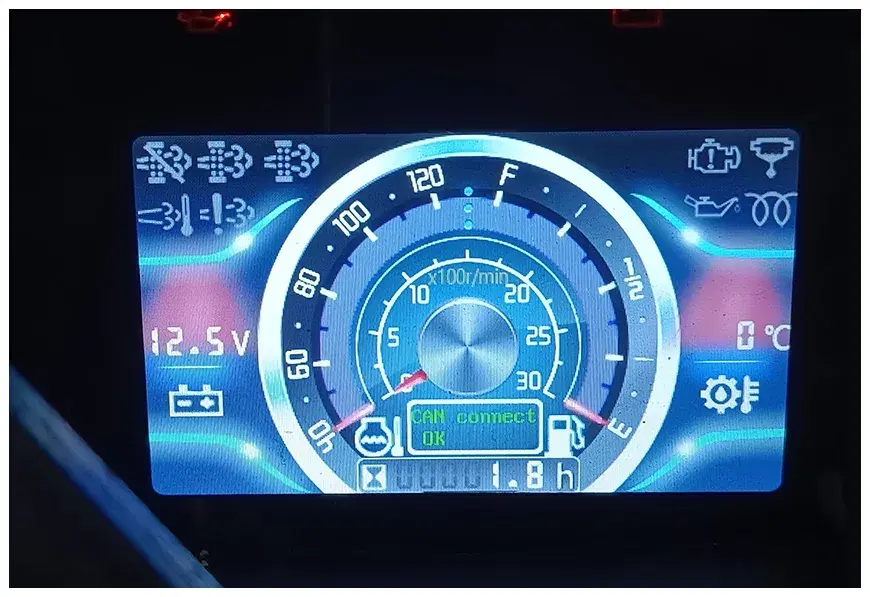

Intelligent Digital Monitoring Terminal
Featuring a high-resolution color digital instrument panel, key operational parameters—such as engine speed, coolant temperature, system voltage, and fuel level—are seamlessly integrated into a single interface. Through a dual display system combining dynamic pointers with digital readouts, the operator can instantly monitor the machine's "pulse," even within complex working environments.

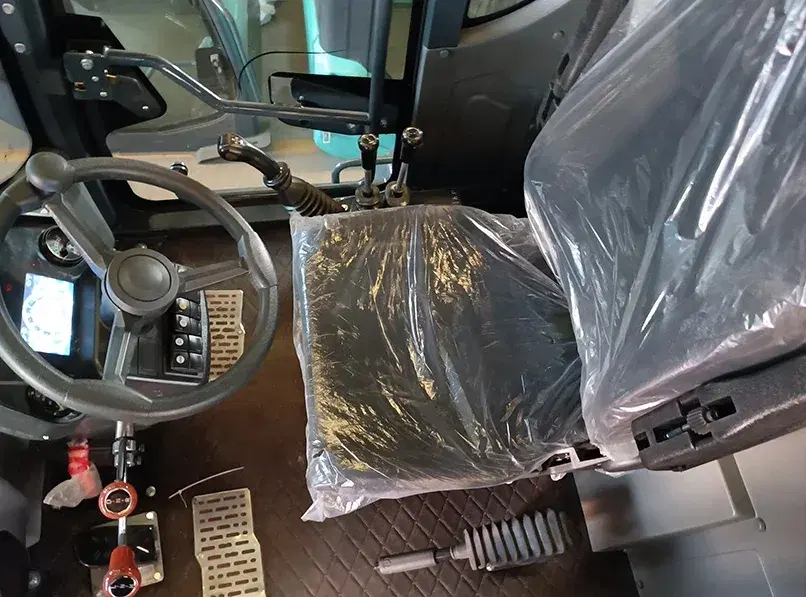

Comfortable driving experience
Provides a spacious and comfortable driving environment, equipped with heating and cooling air conditioning to ensure that the operator can stay comfortable even in harsh environments. The control panel in the cab is fully functional, easy to understand and operate, and improves operating efficiency. Equipped with an adjustable safety seat with shock absorption function to ensure comfort for long-term driving.

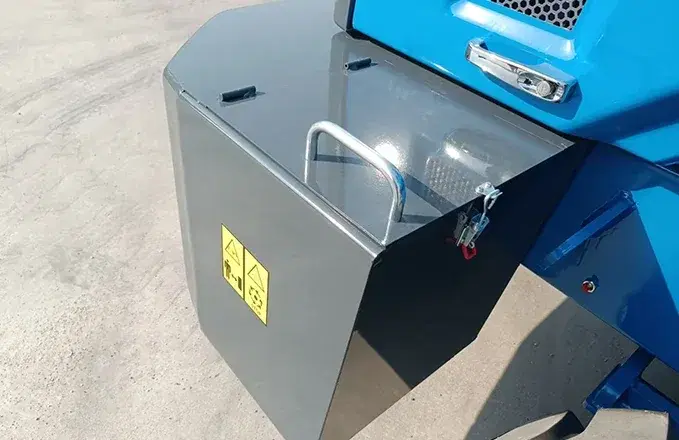

Heavy-Duty Counterweight
As the machine's central balancing element, the rear-mounted, high-strength solid counterweight effectively offsets the overturning moment generated by the front bucket when fully loaded. This design ensures that the machine remains firmly grounded—even during high-speed travel or operations on inclines—thereby significantly enhancing both operational safety and work efficiency.
Contact Us Today
Interested in the Wheel Loader RL30? Send us a message and we'll get back to you with pricing, availability and finance options.
