Rippa · Wheel loaders

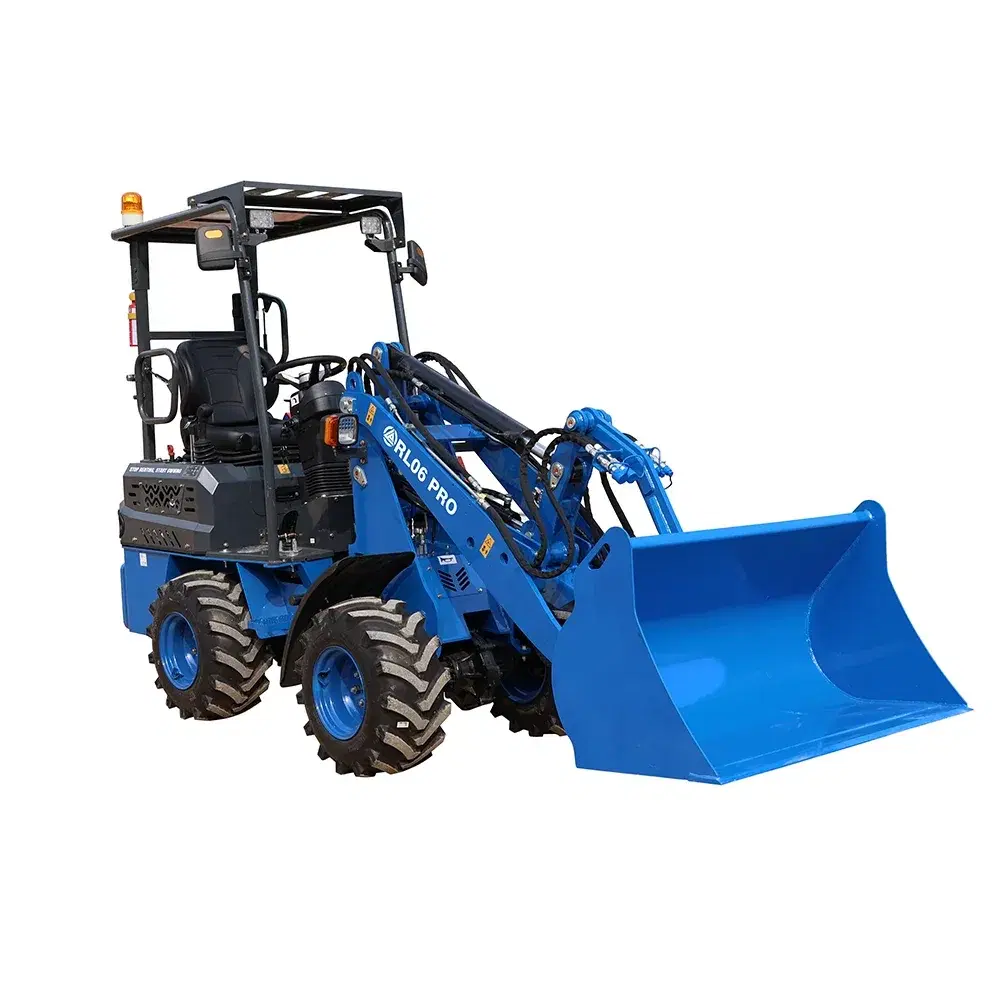

Wheel Loader RL06
The advantages of RIPPA RL06 loader in terms of efficiency, cost, versatility, ease of use, durability and environmental protection help attract potential customers in export trade.
All new units come with a Rippa 12-month parts warranty.
Specifications
Performance
- Machine working weight
- 3795(1725) / lb(kg)
- Bucket capacity
- 0.23m³ / 8.1ft³
Dimensions and capacities
- Rated load mass (kg)(safe load)
- 660 (300) / lb(kg)
- Maximum load mass
- 1320 (600) / lb(kg)
- Travel speed low/high speed
- 0-5 (0-8) / mph(km/h)
- Gradability
- 25% / (%)
- Ground pressure (k Pa)
- 1540 (73.72) / psf(kPa)
- Maximum unloading height
- 81.1 (2060) / in(mm)
- Maximum loading height
- 133.1 (3380) / in(mm)
- Maximum unloading distance
- 25.6 (650) / in(mm)
- Turning radius
- 94.5 (2400) / in(mm)
- Wheel base/wheel base
- 33/49 (840/1250) / in(mm)
- Minimum ground clearance
- 6.1 (155) / in(mm)
- Transport length-with bucket
- 143.7 (3650) / in(mm)
- Transport length-without bucket
- 122.8 (3120) / in(mm)
- Transport width
- 45.3 (1150) / in(mm)
- Transport height
- 90.6(2300) / in(mm)
- Bucket width
- 45.3 (1150) / in(mm)
- Fuel tank (L)
- 4(15) / gal(L)
- Hydraulic oil tank(L)
- 7.4 (28) / gal(L)
Engine
- Engine brand
- Kubota
- Engine model
- D1105
- Maximum horsepower
- 25 (24.7) / ps(hp)
- Maximum power
- 18.4 / kW
- Maximum speed
- 3000 / rpm
- Displacement
- 0.3 (1.123) / gal(L)
- Number of cylinders
- 3
- Cooling method
- Water-cooled
- Engine oil change amount
- 1.1 (4) / gal(L)
- Fuel form
- Diesel
- Fuel grade
- 0/-10
- Theoretical fuel consumption
- 1.3-1.5 / (L/h)
Hydraulic system
- Travel pump type/model
- Closed plunger pump V40D32E1M
- Multi-way valve
- Quadruplemulti-way valve
- Travel pump brand
- Hengli
- Rated set pressure
- 18MPa
- Travel pump maximum flow rate
- 96
- Maximum set pressure
- 20MPa
- Working pump type/model
- GearpumpPGP5114GLP
- Travel hydraulic motor type
- Deston BM5-315
- Working pump brand
- Tianjin Walking
- Travel motor brand
- Deston
- Working pump maximum flow rate
- 42
- Motor displacement
- 315
Features & Highlights

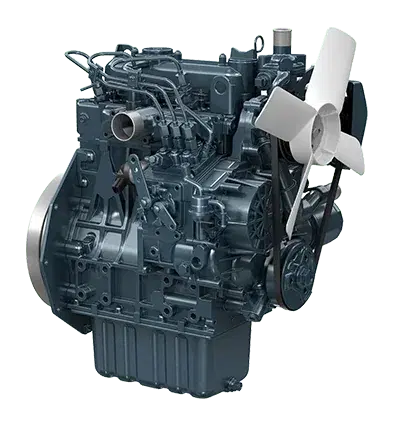

Excellent basic performance
The RL06 loader adopts a high-efficiency design. The engine is equipped with a turbocharger and complies with EuroV/EPV4 emission standards. It is both efficient and environmentally friendly, with an excellent lifting weight to power ratio and low fuel consumption, making operation more economical. The overall design focuses on energy conservation and emission reduction, helping users reduce the impact on the environment.

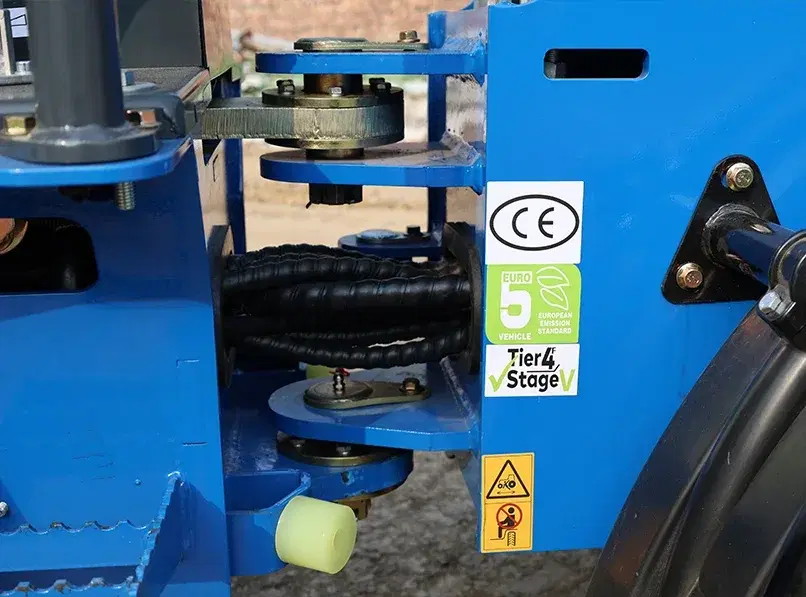

Articulated structure
The articulated frame provides better maneuverability and steering flexibility, and is particularly suitable for working in confined spaces. Secondly, the articulated structure reduces friction between the tires and the ground, extending tire life and reducing maintenance costs. Its sturdy and durable design ensures the stability of the vehicle under heavy loads and uneven terrain, and improves the durability and safety of the equipment. This structural design helps the Rippa loader perform well in a variety of working conditions and has the ability to work efficiently.

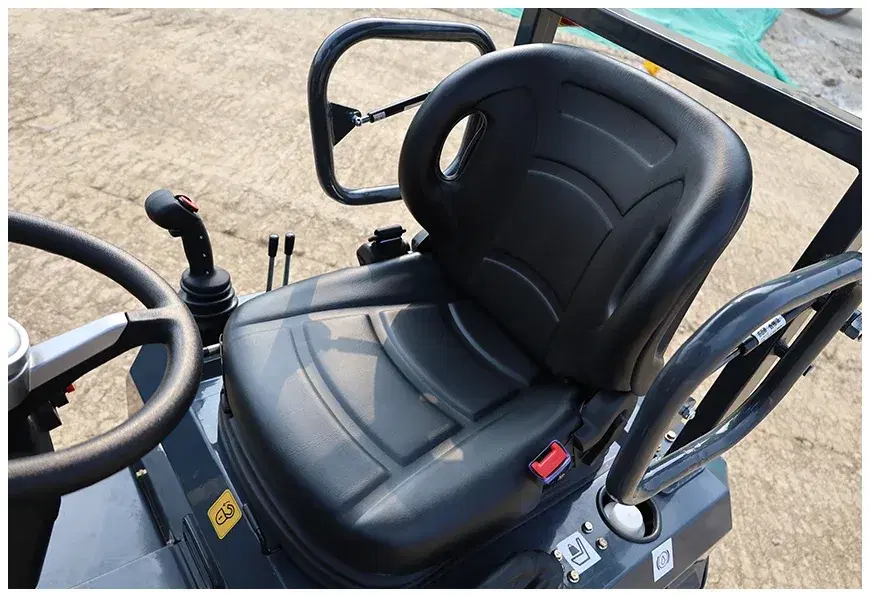

Ergonomic Seat
The backrest and seat cushion are designed to conform to the human body's curves, aiming to reduce fatigue from long hours of work. A red seatbelt buckle is clearly visible on the lower right side of the seat, ensuring the driver's basic safety.

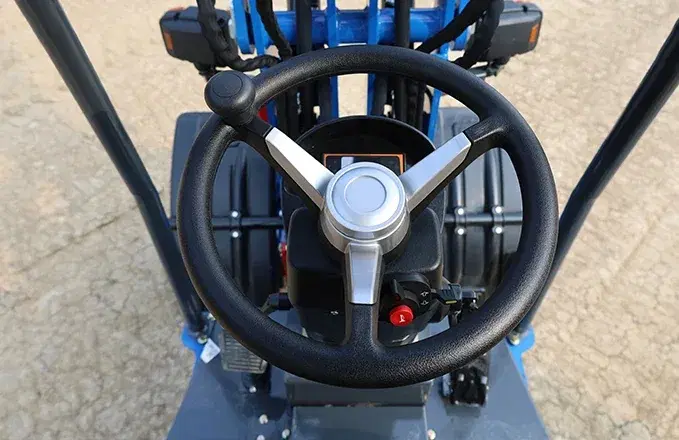

steering wheel
The steering wheel has sensitive response capabilities, ensuring precise operation in complex terrain and small spaces, improving work efficiency. It conforms to ergonomic principles and is comfortable to operate for a long time, reducing driver fatigue. Made of high-quality and durable materials, it has a good grip and can maintain reliable performance in a variety of working environments.
