Rippa · Wheel loaders

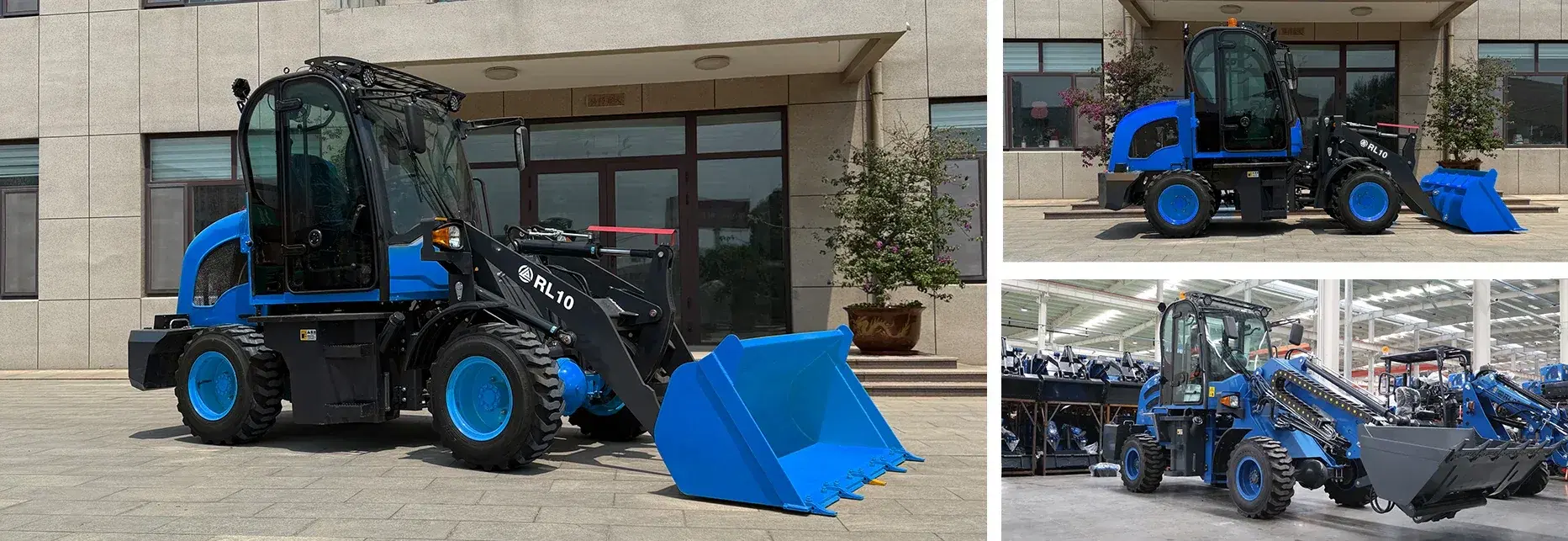

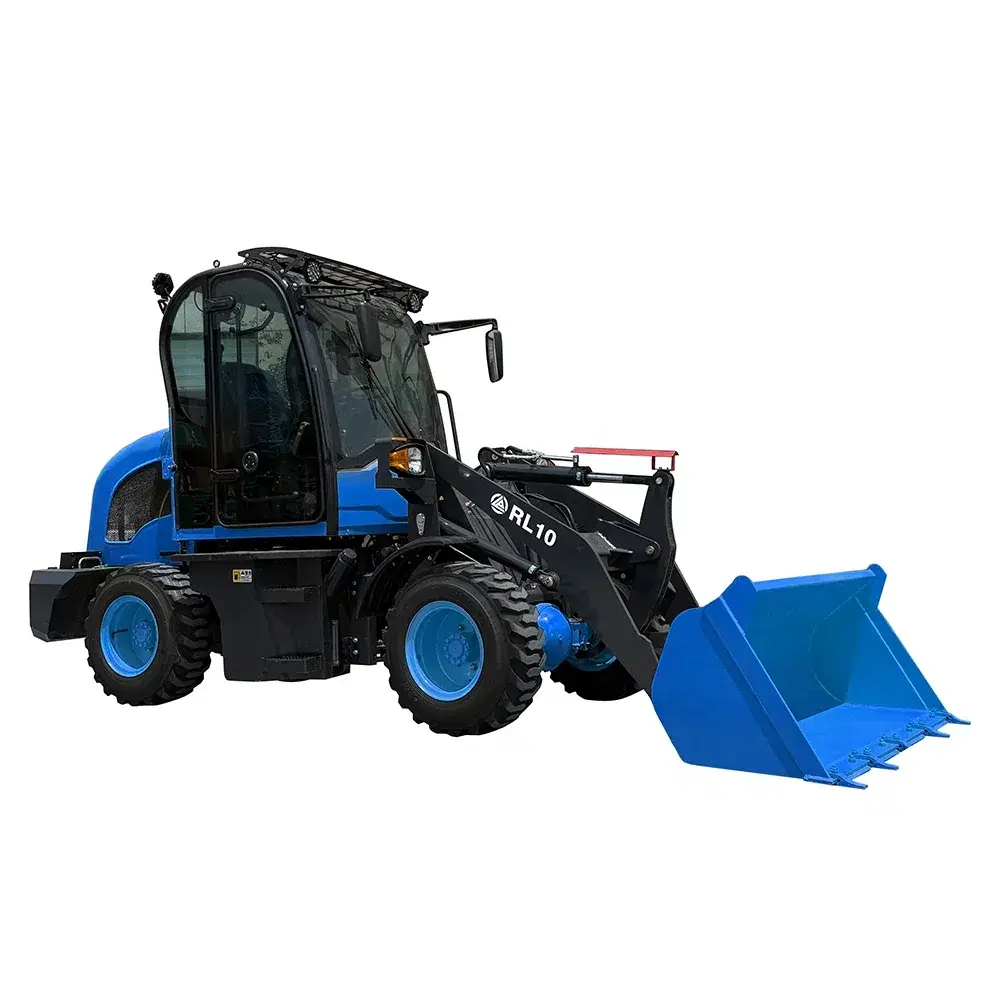

Wheel Loader RL10
The advantages of RL10 loader in performance, efficiency, design, maintenance, load capacity and attachment selection help attract the attention of potential customers in export trade.
All new units come with a Rippa 12-month parts warranty.
Specifications
Performance
- Overall weight
- 2500kg / 5500lb
- Dimensions (L × W × H)
- 4500 × 1650 × 2500mm / 102 × 65 × 98in
- Rated bucket capacity
- 0.5m³ / 17.7ft³
- Rated load
- 1000kg / 2200lb
- Lifting height
- 3500mm / 137.8in
- Maximum dump height
- 2200mm / 86.6in
- Minimum turning radius
- 2150mm / 84.6in
- Maximum turning radius
- 3850mm / 151.6in
- Maximum speed
- 20km/h / 12.4mph
- Heater
- Yes
- Reverse image
- Yes
Engine
- Engine model
- Changchai ZN390Q
- Engine type
- Vertical, in-line, water-cooled, four-stroke diesel engine
- Rated power
- 25kW / 33.5hp
- Optional engine
- Kubota V1505 (Europe 5 / EPA4)
Transmission
- Transmission type
- Torque converter + gearbox + drive shaft + drive axle
- Gear shift
- 2 gears ahead, 2 gears astern
Hydraulic system
- Working pressure
- 16MPa / 2320.6psi
- Working flow
- 32ml/r
- Walking flow
- 16ml/r
Tank capacity
- Hydraulic tank capacity
- 60L / 15.85gal
- Fuel tank capacity
- 60L
Steering system
- Steering type
- Hydraulic steering
- Steering angle
- 35°
Tyres
- Standard tyres
- 31 × 15.5-15
- Optional tyres
- 400/60-15.5
Features & Highlights

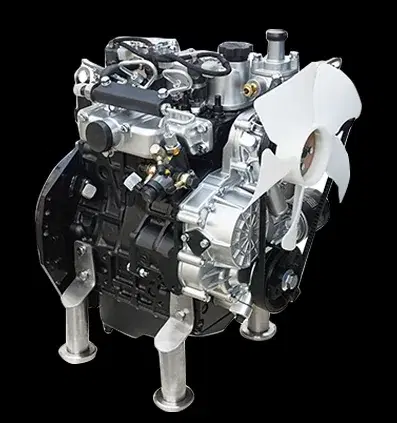

Energy-efficient engine
Equipped with a turbocharged engine that complies with Euro V standards, it is both powerful and efficient. Multi-purpose: P, S, E multi-state switches can be reasonably selected according to working conditions, suitable for a variety of tasks such as material transportation, loading, general construction and stacking.

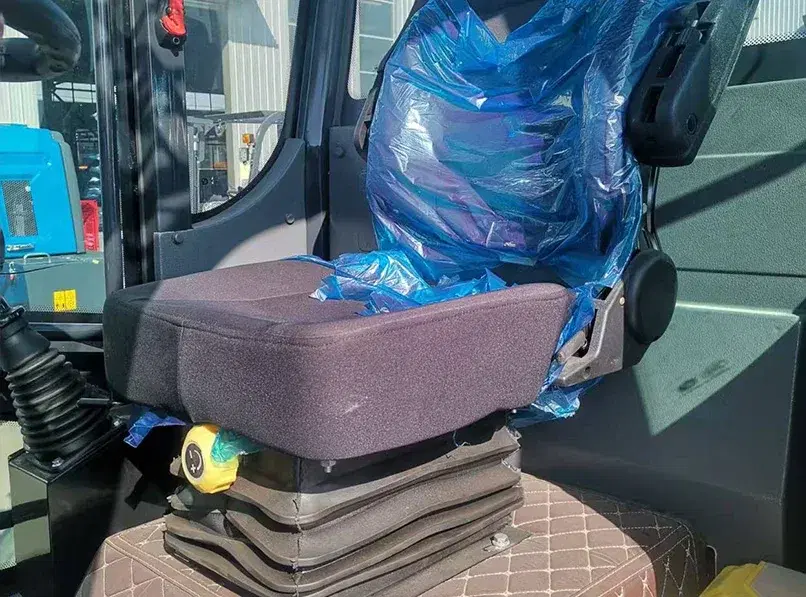

Suspension Damping Base
The seat is equipped with a mechanical or air suspension damping system with a black corrugated dust cover. This effectively absorbs and filters vibrations generated during operation in rough conditions, significantly reducing driver fatigue.

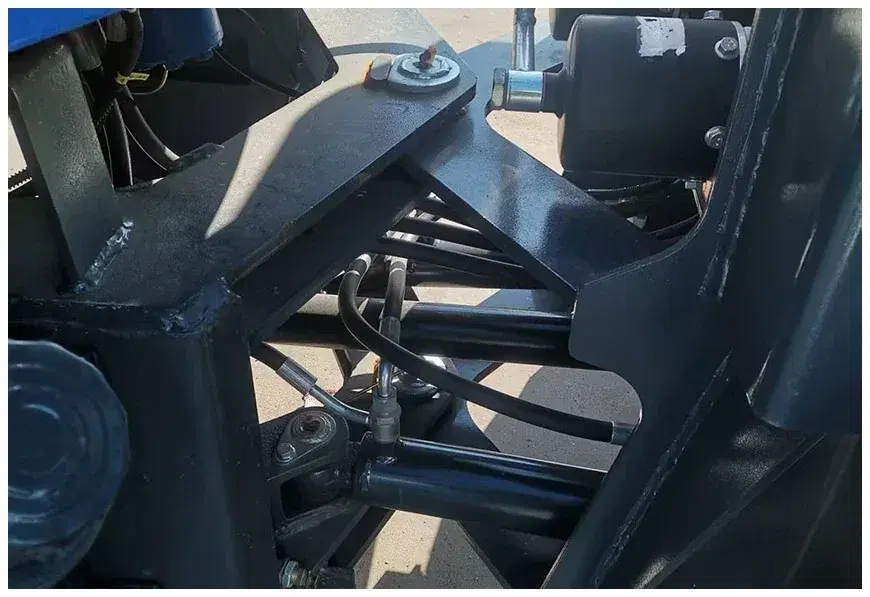

Heavy-duty articulated structure
It adopts thick, high-strength steel plates and thickened articulated pins, with uniform and solid welds, ensuring the structural strength and stability of the machine under heavy loads and torsional conditions.

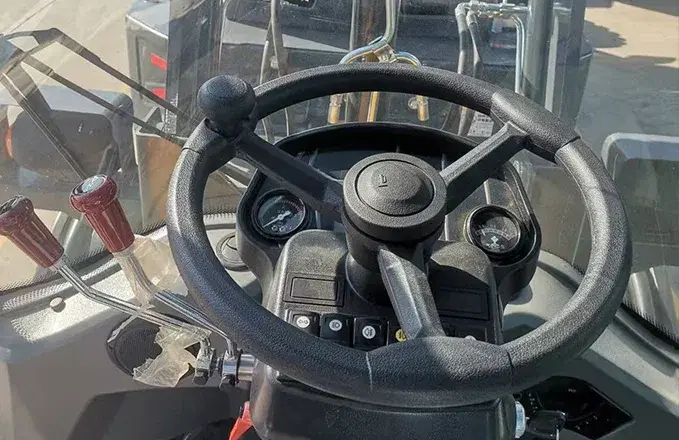

steering wheel
The steering wheel has sensitive response capabilities, ensuring precise operation in complex terrain and small spaces, improving work efficiency. It conforms to ergonomic principles and is comfortable to operate for a long time, reducing driver fatigue. Made of high-quality and durable materials, it has a good grip and can maintain reliable performance in a variety of working environments.
