Rippa · backhoe loaders

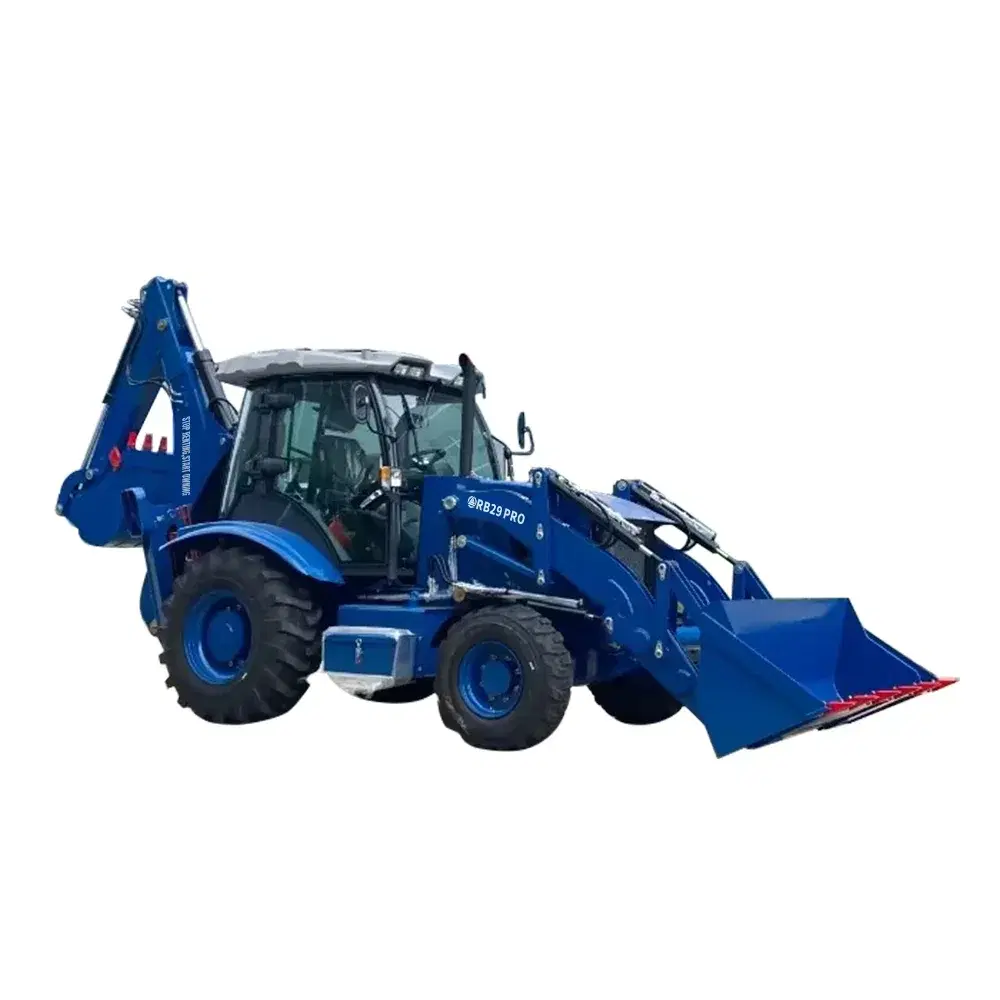

Backhoe Loader RB29
RB29 backhoe loader is an ideal choice for export trade with its powerful performance, efficient hydraulic system, high-quality hardware configuration, user-friendly design, wide applicability and reliable safety.
All new units come with a Rippa 12-month parts warranty.
Specifications
Basic performance
- Overall operating weight
- 7800kg / 17160lb
- Transport dimensions
- 7600 × 2260 × 2890mm / 299 × 89 × 114in
- Wheel base
- 2250mm / 88.6in
- Minimum ground clearance
- 300mm / 11.8in
- Bucket capacity
- 1.3m³ / 45.9ft³
- Breakout force
- 38kN / 8543lbf
- Loading lifting capacity
- 2500kg / 5500lb
- Bucket dumping height
- 2800mm / 110in
- Bucket dumping distance
- 1062mm / 41.8in
- Backhoe capacity
- 0.3m³ / 10.6ft³
- Maximum digging depth
- 4000mm / 157.5in
- Backhoe swing angle
- 190°
- Maximum pulling force
- 39kN / 8758lbf
Steering system
- Steering angle
- ±36°
- Minimum turning radius
- 6581mm / 269.7in
- System pressure
- 12MPa / 1740.5psi
Hydraulic system
- Hydraulic system pressure
- 22MPa / 3190.8psi
- Excavator grab digging power
- 46.5kN / 10454lbf
- Dipper digging power
- 31kN / 6969.1lbf
Tyres
- Tyre model
- Front 14-17.5 / rear 19.5L-24
- Front Tyre pressure
- 0.22MPa / 31.9psi
- Rear Tyre pressure
- 0.22MPa / 31.9psi
Engine
- Standard engine
- Yuchai YCD4J22T (Euro 3), 85kW / 114hp
- Optional engine 1
- Cummins F3.8 (Euro III)
- Optional engine 2
- Yuchai YCF36110-S500 (Euro V)
- Optional engine 3
- Cummins QSF3.8 (EPA4)
Axle
- Axle brand
- Feicheng Yunyu
- Main transmission type
- Double reduction
- Final reducer
- Single-stage final reducer
- Rated axle load
- 4 / 18.5t
Gearbox
- Gearbox type
- Fixed-shaft power transmission
- Gears
- 2 ahead, 2 astern
- Maximum speed
- 36km/h
Features & Highlights

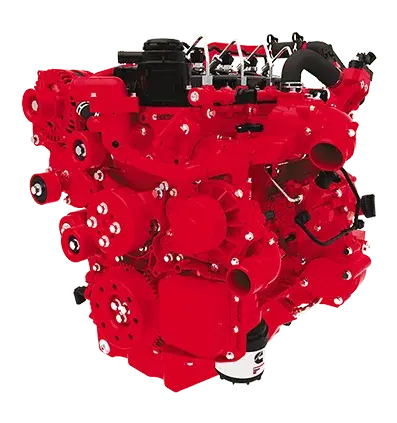

Advanced Engine
The RB29 backhoe loader is equipped with a Cummins 4BTA3.9-C125 four-cylinder turbocharged water-cooled engine with a rated power of 93KW (125HP), which provides strong power support for the equipment. Known for its high efficiency and reliability, this engine can stably output powerful power under various operating conditions, ensuring that the machine still performs well under heavy loads.

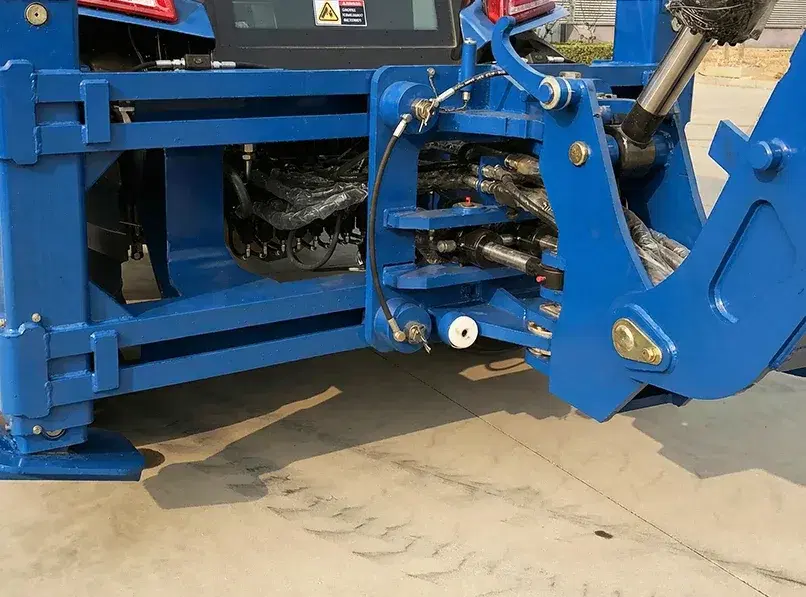

Flexible operation
The design of the RB29 backhoe loader focuses on its adaptability in various complex terrains. It has a 190° swing angle and a ±36° steering angle, making the machine more flexible in steering and maneuvering. The minimum turning radius is 6581mm, allowing the RB29 to be easily maneuverable in situations that require precise operation. This excellent maneuverability is very suitable for construction sites, city streets or any complex construction environment, and can efficiently complete various operations in a limited space. Whether it is excavating, loading or carrying, the RB29 backhoe loader demonstrates its excellent performance and adaptability, helping operators achieve efficient operations.

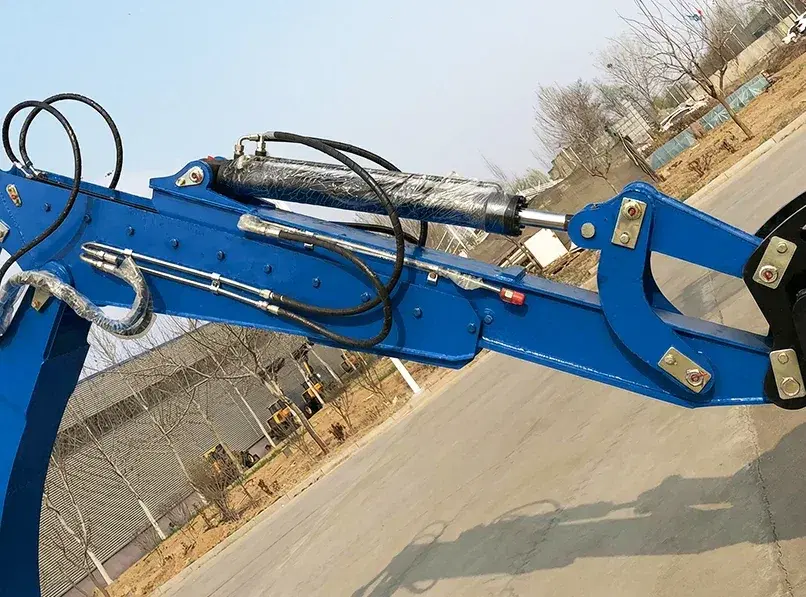

Efficient hydraulic system
The hydraulic system pressure is as high as 400Mpa, ensuring efficient and stable operation performance. Fast operation cycle: bucket lifting time is only 31 seconds, lowering time is 5.4 seconds, and unloading time is 3.1 seconds, improving operation efficiency

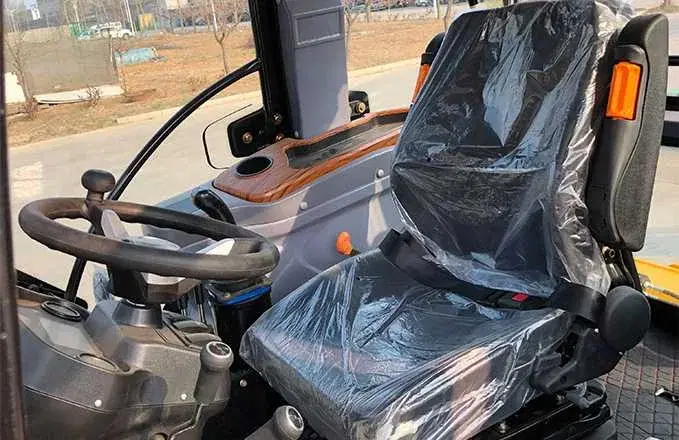

Comfortable cab
The spacious and bright cab is equipped with a comfortable and safe seat with shock absorption function, as well as air conditioning and heating to enhance the operator's working experience.
Contact Us Today
Interested in the Backhoe Loader RB29? Send us a message and we'll get back to you with pricing, availability and finance options.
