Rippa · backhoe loaders

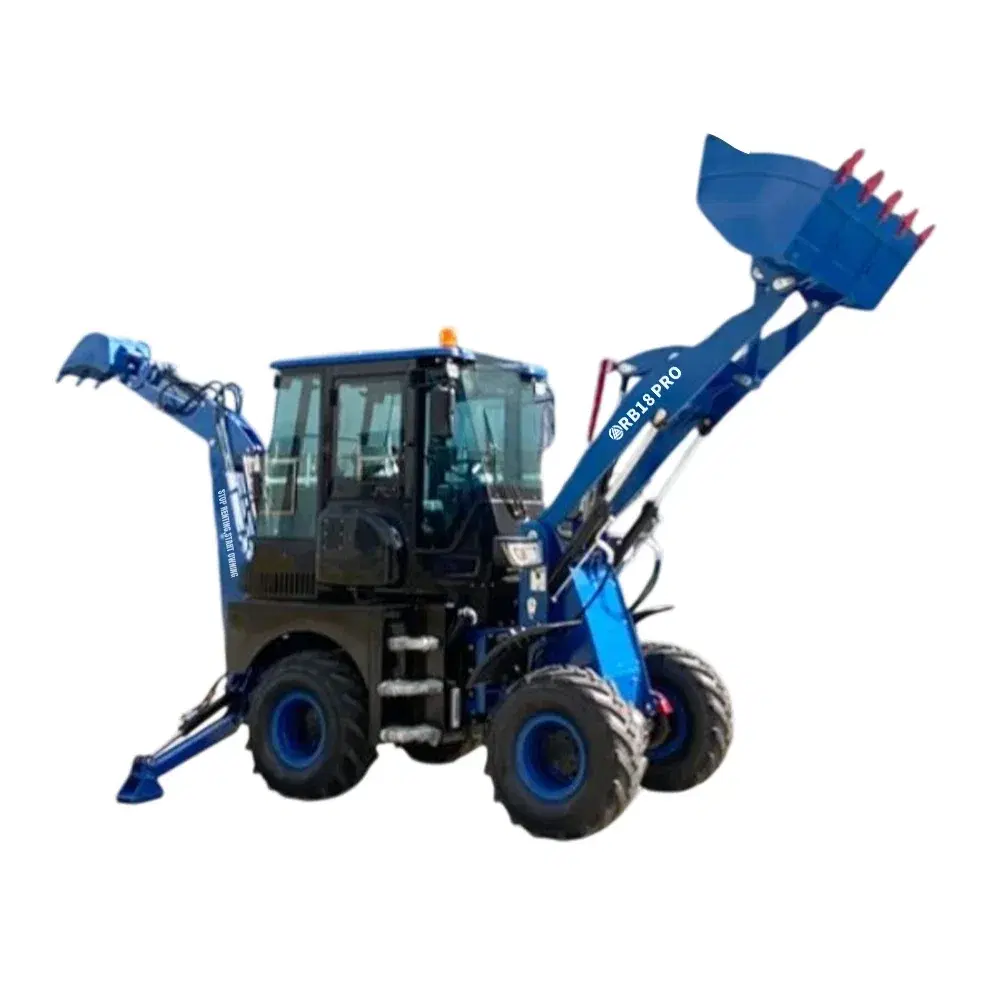

Backhoe Loader RB18
RB18 backhoe loader has strong performance, hydraulic system, high-quality and efficient hardware, humanized design, wide applicability, safety and reliability, and is an ideal choice for export trade.
All new units come with a Rippa 12-month parts warranty.
Specifications
Transport dimensions
- Overall operating weight
- 3800kg / 8378lb
- Overall length
- 6800mm / 268in
- Overall width
- 1900mm / 75in
- Overall height
- 2800mm / 110in
- Minimum ground clearance
- 300mm / 12in
- Bucket capacity
- 0.8m³ / 28.25ft³
- Loading lifting capacity
- 1800kg / 3968lb
- Bucket dumping height
- 2900mm / 114in
- Backhoe capacity (width)
- 0.18m³
- Maximum digging depth
- 2500mm / 98in
- Axle track
- 1550mm / 61in
- Wheel base
- 2000mm / 79in
Steering system
- Steering angle
- ±35°
- Minimum turning radius
- 4600mm / 181in
- System pressure
- 12MPa
Engine
- Engine model
- Yunnei YN27GB
- Engine type
- In-line, direct injection, four-stroke, water-cooled
- Rated power
- 42kW
- Optional engine
- Changchai Euro 5 / Kohler EPA4 / Cummins EPA4
Transmission system
- Torque converter model
- 265
- Torque converter cooling
- Oil-cooling pressure circulation
- Gearbox type
- Power transmission
- Gears
- 4 ahead, 4 astern
- Maximum speed
- 28km/h
- Tyre specifications
- 23.5/70-16
Brake system
- Service brake
- Air-over-oil caliper brake; external type; self-regulating; self-balancing
- Gearbox brake
- Operation power implementing brake; manual operation power terminating brake
Features & Highlights
High performance and economical
The RB18 backhoe excavator is known for its high efficiency and is suitable for a variety of construction scenarios. The low horsepower design not only meets the needs of diverse operations, but also effectively reduces ground impact, thereby significantly reducing operating costs. While maintaining excellent productivity, the RB18 backhoe excavator also has excellent fuel efficiency, helping users complete tasks more economically. The equipment not only reduces fuel consumption, but also improves overall operating efficiency, making project progress smoother.

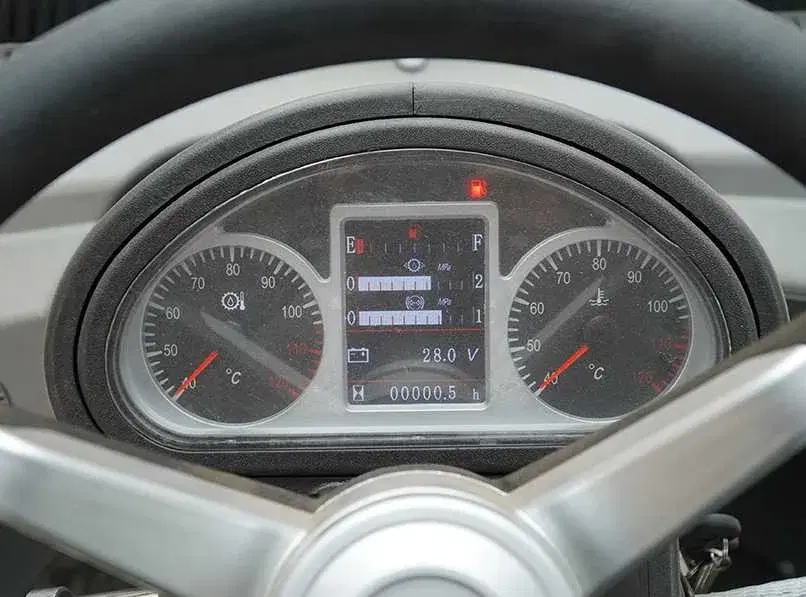

Advanced dashboard
The display can intuitively present key parameters such as fuel consumption, engine temperature, hydraulic pressure and running time, helping operators to understand the machine status in a timely manner. When an abnormality occurs, the system will issue a reminder or alarm to prevent mechanical failure, reduce downtime and maintenance costs

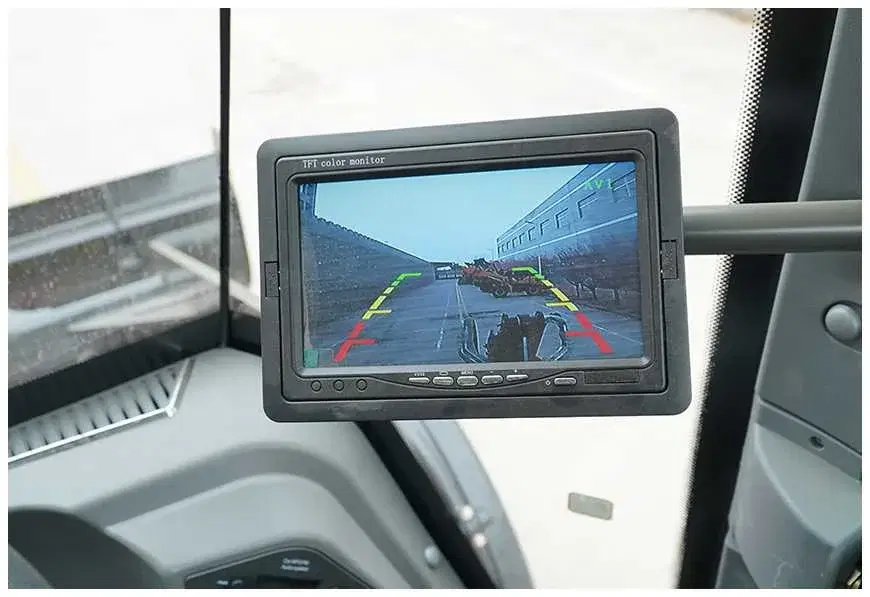

HD reversing effect
The RB18 backhoe loader operating system is designed to be intuitive and concise, which reduces the difficulty for novices to get started. Even in complex engineering sites, operators can quickly become familiar with the equipment and improve overall efficiency. The ease of use reduces the reliance on professional drivers and allows more team members to participate in the operation. Equipped with a high-definition reversing camera to improve the blind spot vision.

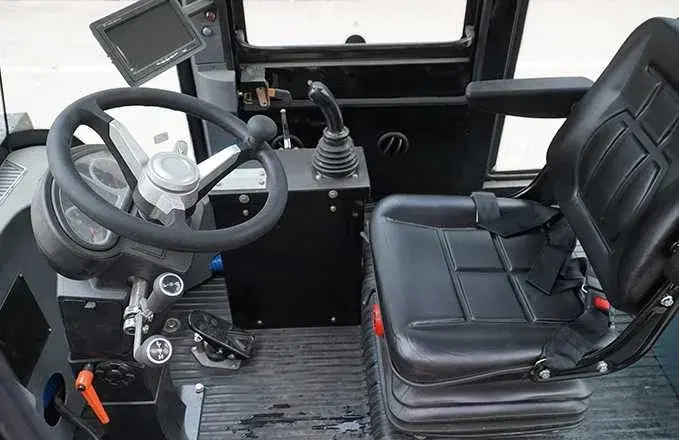

Comfortable working environment
Provides a spacious and comfortable driving environment, equipped with heating and cooling air conditioning to ensure that the operator can stay comfortable even in harsh environments. The control panel in the cab is fully functional, easy to understand and operate, and improves operating efficiency. Equipped with an adjustable safety seat with shock absorption function to ensure comfort for long-term driving.
Contact Us Today
Interested in the Backhoe Loader RB18? Send us a message and we'll get back to you with pricing, availability and finance options.
