Rippa · backhoe loaders

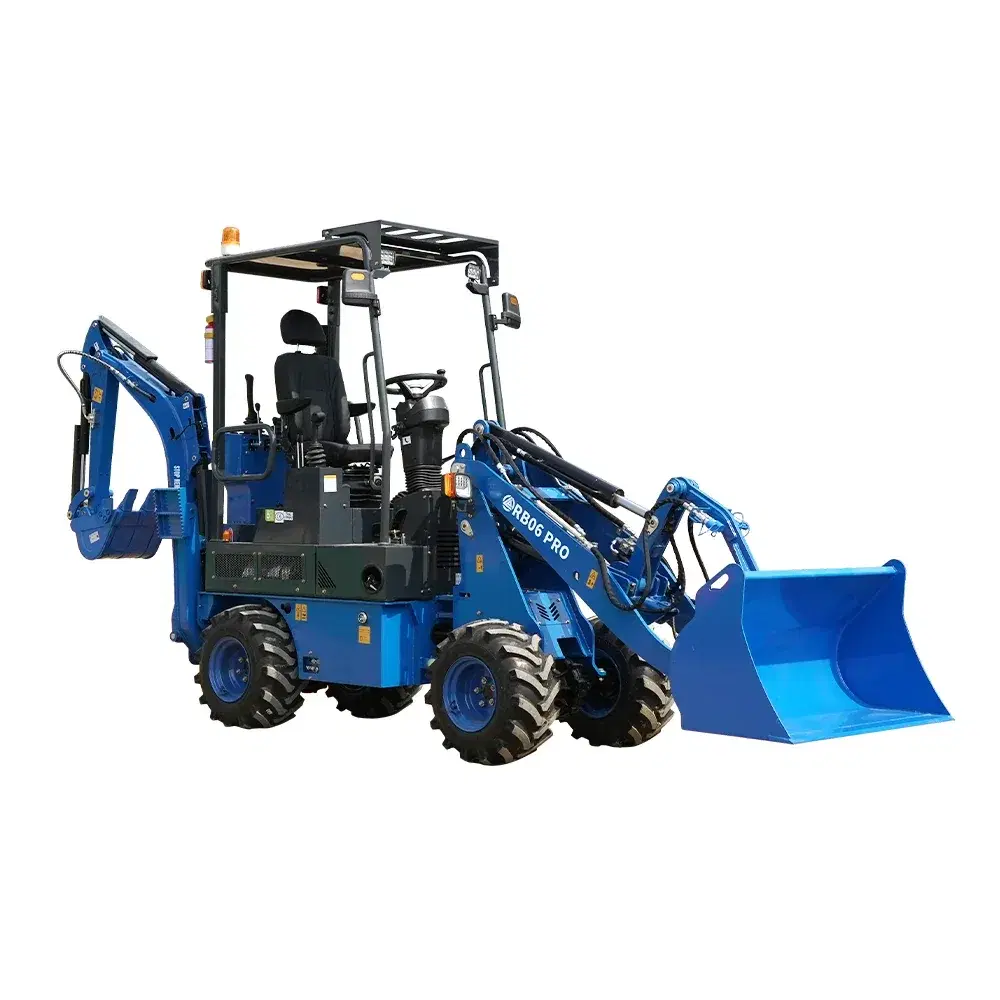

Backhoe Loader RB06
RB06 loader has high operating efficiency, strong loading capacity, wide operating range, comfortable operating experience, excellent safety performance, durability, good economy, etc. It can meet the needs of various users and is a high-quality product for export trade.
All new units come with a Rippa 12-month parts warranty.
Specifications
Body
- Rated bucket loading capacity(m³/ft³)
- 0.23/8.12
- Rated bucket excavation part(m³/ft³)
- 0.036/1.3
- Maximum charging mass(kg/lb)
- 600/1323
- Maximum dischargeheight(mm/in)
- 2060/81
- Maximum loading height(mm/in)
- 3380/133
- Maximum excavation depth(mm/in)
- 2500/98
- Maximum excavation height(mm/in)
- 3200/126
- Transport height(mm/in)
- 1150/45
- Transport width (mm/in)
- 2600/102
Hydraulic system
- Main pump model
- GearPumpPGP5114GLP
- Main pump brand
- TianjinWalking
- Rated pressure (MPa/psi)
- 18/2610.7
- Maximum driving speed (km/h / mph)
- 12/7.46
- Gradeability
- 25
- Minimum turning radius (mm/in)
- 2400/94
- Tyre specifications
- 26×12.00-12
- Hydraulic oil tank (L/ ft³)
- 28/0.99
- Fuel tank (L/ ft³)
- 18/0.64
- Cooling method
- water cooling
Basic parameters
- Overall machine mass (kg/lb)
- 2325/5134
- Overall dimensions (mm/in)
- 5180*1150*2600/203*45*102
- Bucket width (mm/in)
- 1150/45
- Wheel base (mm/in)
- 840/33
- Minimum clearance from the ground (mm/in)
- 155/6
Engine
- Engine model
- Kubota D1105
- Rated speed (r/min)
- 3000
- Rated power
- 18.4 Fuel form
Features & Highlights

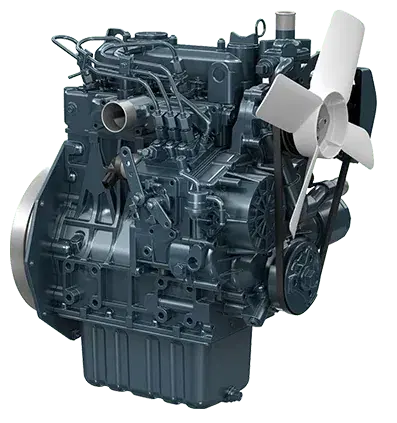

Powerful engine
Small vibration, low noise, strong power and strong environmental adaptability make RB06 capable of handling various working environments.

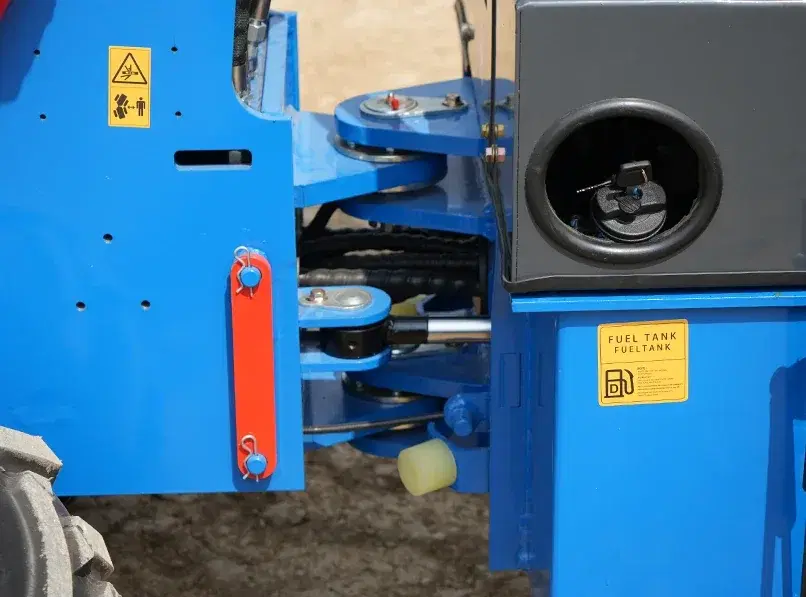

hydraulic drive system
This is the RIPPA RB06 backhoe loader, featuring a hydraulic drive system with high flexibility and multifunctionality. Its compact design makes it ideal for working in confined spaces, and it can quickly switch between various attachments such as buckets, forklift arms, and augers to meet different operational needs. With a powerful engine and high load capacity, it is widely used in construction, agriculture, and municipal maintenance.

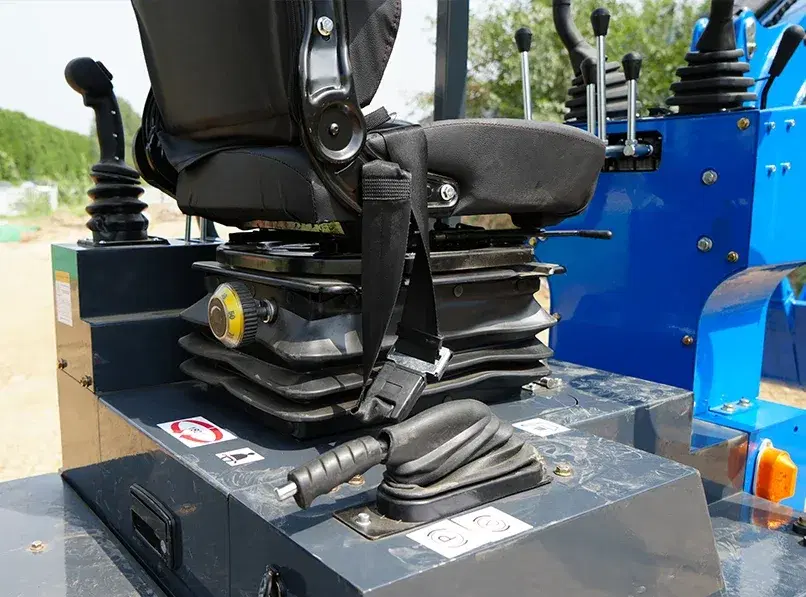

Seat Suspension System
This is a construction machinery seat equipped with an air-adjustable suspension system that effectively absorbs vibrations, enhancing driving comfort. The yellow knob allows adjustment of the suspension stiffness to accommodate different weights and driving needs, reducing operator fatigue during long hours of operation. This design is widely used in excavators, skid steer loaders, forklifts, and other machinery.
Multipurpose Tool Carrier
The RB06 backhoe loader has high efficiency, powerful digging ability, wide adaptability, comfortable operating experience, excellent safety performance, durability and economy as its core selling points. It can meet the needs of various users and is a high-quality choice in export trade.
Contact Us Today
Interested in the Backhoe Loader RB06? Send us a message and we'll get back to you with pricing, availability and finance options.
