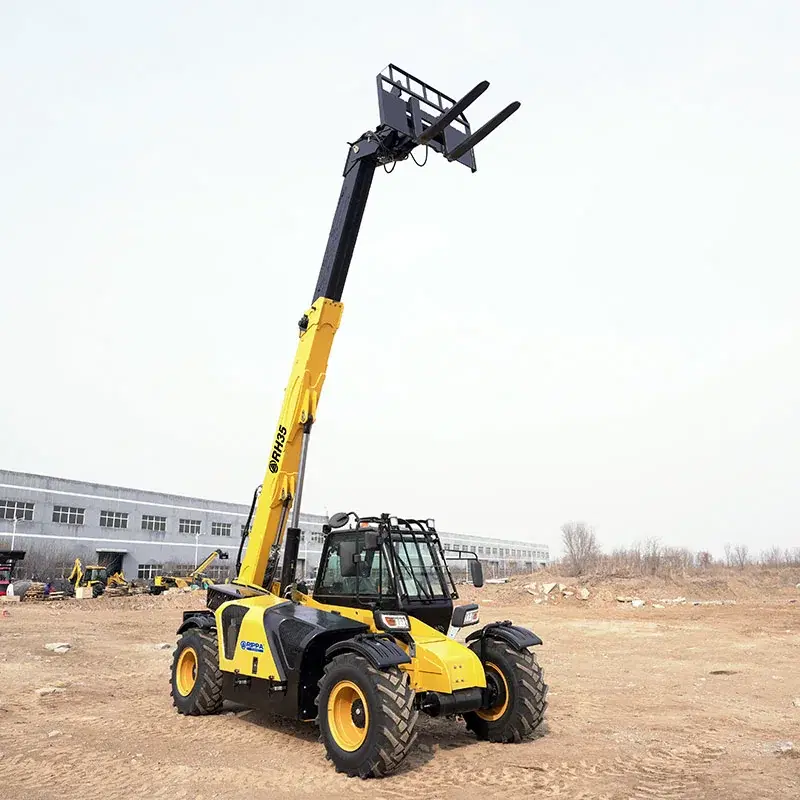

Telescopic Handler RH35
RH35 telescopic forklift has a load capacity of 7.2 tons and a lifting height of 7 meters, suitable for working in small spaces. Equipped with Euro 5 environmentally friendly engine, it is powerful, energy-saving and environmentally friendly. The comfortable cab is equipped with air conditioning and heating, which is easy to operate. It supports a variety of operating attachments and is widely used in transportation and construction. It has passed ISO9001 and CE certification, with reliable quality, strong durability, and is suitable for efficient operation.
All new units come with a Rippa 12-month parts warranty.
Specifications
- Maximum lift capacity
- 7700 (3500) / lb (kg)
- Lift height
- 275.6 (7000) / in (mm)
- Reach at maximum lift height
- 17.7 (450) / in (mm)
- Maximum forward reach
- 141.7 (3600) / in (mm)
- Weight unload
- 15840 (7200) / lb (kg)
- Tyre
- 16/70-24
- Outside turn radius(over Tyre)
- 167.3 (4250) / in (mm)
- Carriage rollback angle(degrees)
- 42.6
- Carriage dump angle(degrees)
- 37.5
- Overall height
- 90.6 (2300) / in (mm)
- Overall width(overtyres)
- 84.6 (2150) / in (mm)
- Inside width of cab
- 31.5 (800) / in (mm)
- Front track
- 68.9 (1750) / in (mm)
- Wheel base
- 112.2 (2850) / in (mm)
- Overall length to front tyres
- 165.4 (4200) / in (mm)
- Overall length to front carriage
- 183.1 (4650) / in (mm)
- Ground clearance
- 13.8 (350) / in (mm)
- Engine brand
- YuchaiYCD4J22T-115(EuroIlI)
- Engine rate power
- 113.9 (85) / hp (kW)
- Pallet fork length
- 48 (1220) / in (mm)
- Optional engine
- Yuchai YCF36110-S500 (Euro 5) / Kohler KDI2503TCR (EPA4)
Features & Highlights

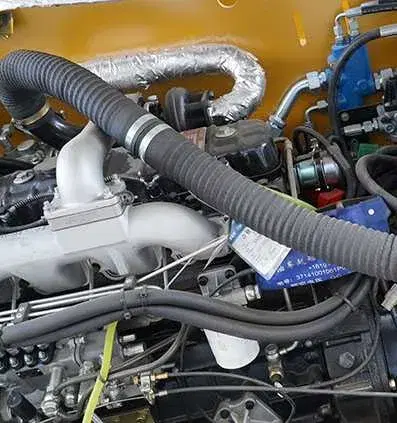

Energy-efficient engine
Yuchai engine provides RH35 with efficient power, strong torque, excellent fuel economy, compliance with international emission standards (Tier 4/Stage V), environmental protection, low noise, reliable operation and easy maintenance, perfectly adapting to various working conditions.

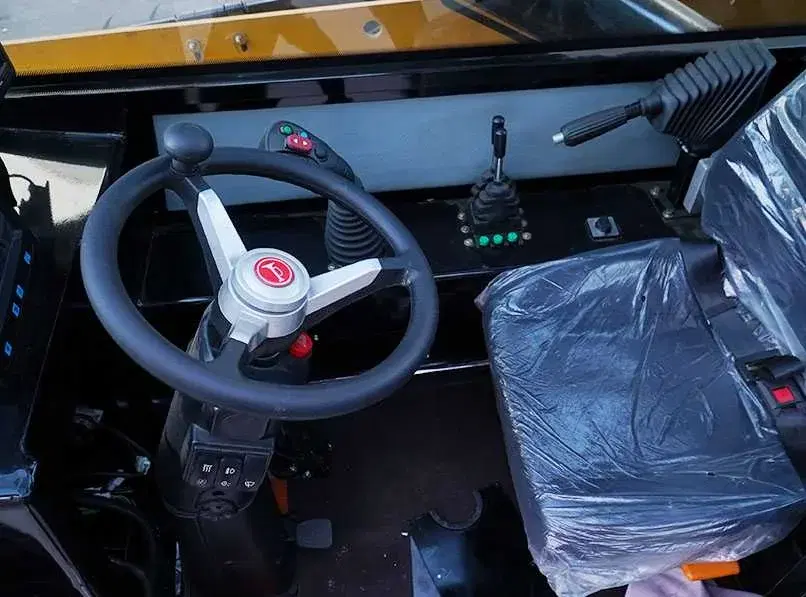

steering wheel
The steering wheel has sensitive response capabilities, ensuring precise operation in complex terrain and small spaces, improving work efficiency. It conforms to ergonomic principles and is comfortable to operate for a long time, reducing driver fatigue. Made of high-quality and durable materials, it has a good grip and can maintain reliable performance in a variety of working environments.

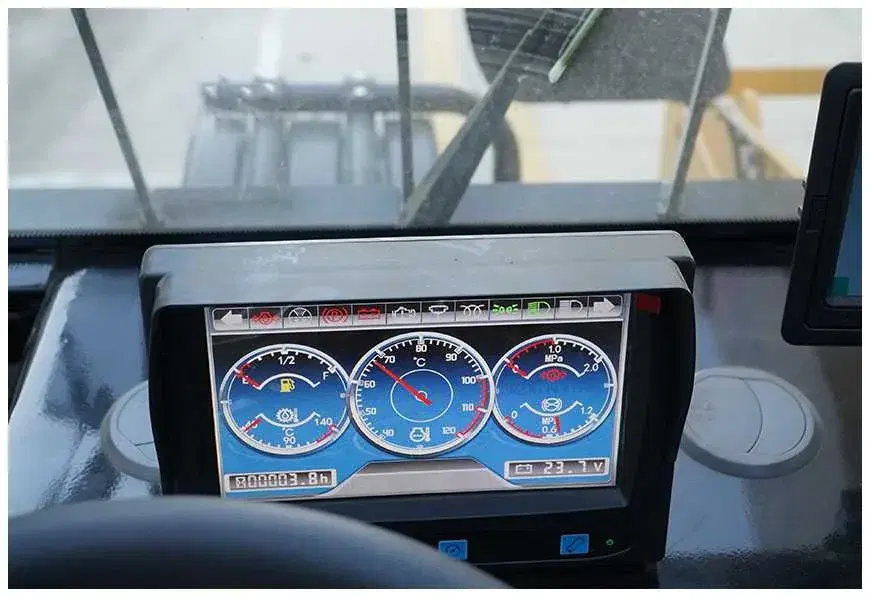

Smart screen
The smart large screen can display the various operating parameters of the excavator in real time, such as engine status, oil pressure, hydraulic system status, fuel consumption and temperature, etc., helping the operator to control the working status of the equipment at any time.

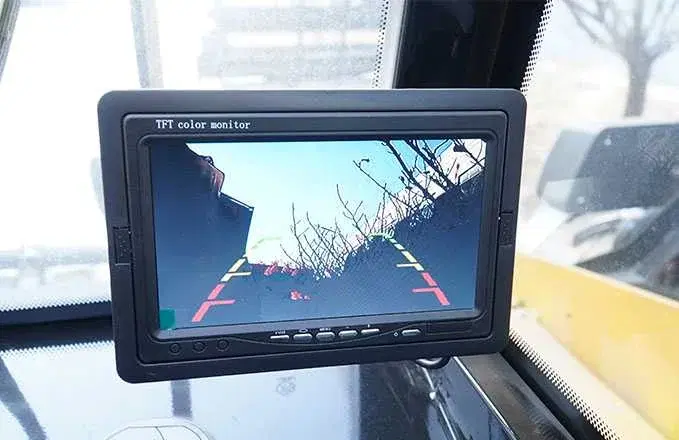

Reversing camera system
The reversing imaging system provides drivers with a safer, more efficient and more convenient driving experience with its panoramic view, high-definition image quality, real-time monitoring, convenient operation, assisted driving and stable voltage.
