Rippa · Mini Dump

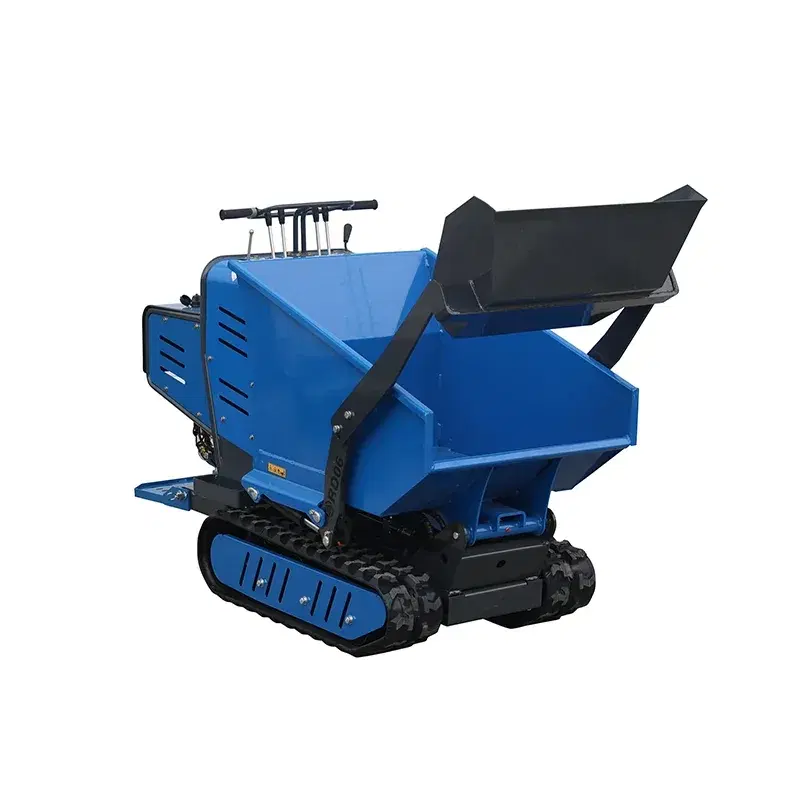

Mini Dump RD06
RD06 Dump Truck has high transportation efficiency, strong payload capacity, wide operating adaptability, comfortable driving experience, excellent safety performance, outstanding durability, and good fuel economy. It can meet the needs of various users and is a high-quality dump truck designed for export trade.
All new units come with a Rippa 12-month parts warranty.
Specifications
Performance
- Machine operating weight
- 1139.6 (518) / lb (kg)
- Bucket capacity
- 1.06 (0.03)
Dimensions and capacities
- Dump capacity
- 0.27m³ / 9.5ft³
- Rated load mass
- 770 (350) / lb (kg)
- Travel speed low/high speed
- 0-1.24/0-2.48(0-2/0-4) / mph(km/h)
- Gradability
- 30%%
- Ground pressure
- 408.4(19.55) / psf(kPa)
- Maximum unloading height
- 14(356) / in(mm)
- Maximum unloading distance
- 10.7(272) / in(mm)
- Minimum ground clearance
- 2.8(70) / in(mm)
- Transport length
- 65.7(1670) / in(mm)
- Transport width
- 30.7(780) / in(mm)
- Transport height
- 47.2(1200) / in(mm)
- Bucket width
- 27.6(700) / in(mm)
Engine
- Engine brand
- Briggs&Stratton
- Engine model
- XR2100
- Maximum horsepower
- 13.6 / (ps)
- Maximum power
- 13.4(10) / hp(kW)
- Maximum speed
- 3600 / rpm
- Displacement
- 0.11 (0.42) / gal(L)
- Number of cylinders
- 1
- Cooling method
- Air-cooled
- Engine oil change amount
- 0.32(1.2) / gal(L)
- Fuel form
- Gasoline
- Fuel grade
- 92#
- Theoretical fuel consumption
- 0.8-1.2
Hydraulic system
- Main pump type/model
- GearpumpPGP51044SLP
- Multi-way valve brand
- Tengfei
- Main pump brand
- Tianjin Walking
- Rated set pressure
- 16MPa
- Main pump maximum flow
- 14.4+14.4
- Maximum set pressure
- 18MPa
- Multi-way valve-left
- double multi-way valve
- Travel hydraulic motor type
- DestonBM5-200
- Travel motor brand
- Deston
- Multi-way valve-right
- double multi-way valve
- Motor displacement
- 200
Features & Highlights

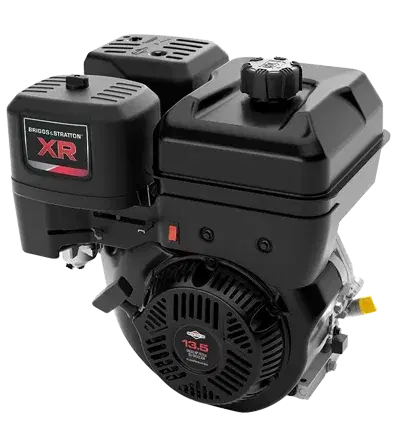

Excellent basic performance
There are various models available for selection, equipped with a Briggs & Stratton engine with a rated power of 10 kW, providing reliable power output while maintaining excellent fuel economy.

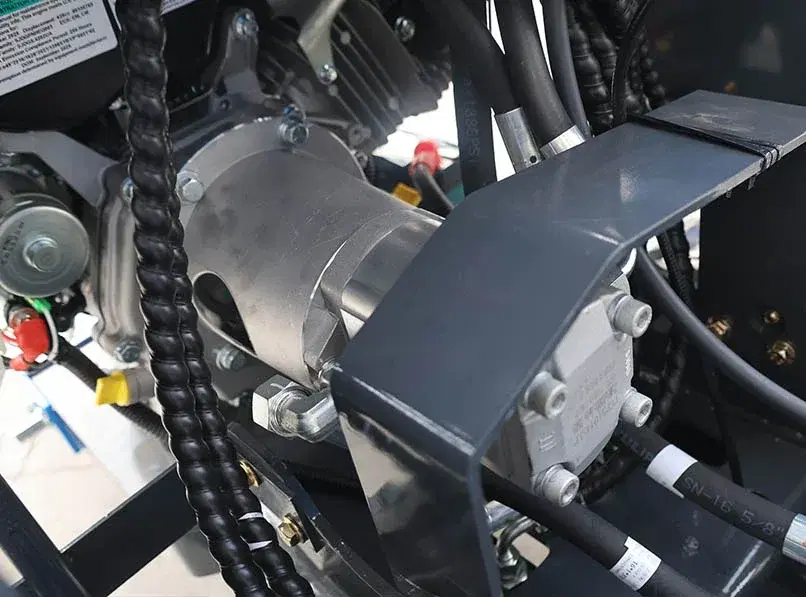

HighEfficiency Hydraulic Drive System
This hydraulic drive system features a compact structure, stable power output, and precise hydraulic control. Built with high-strength components and protected layout, it ensures smooth operation, durability, and reliable performance in demanding working conditions.

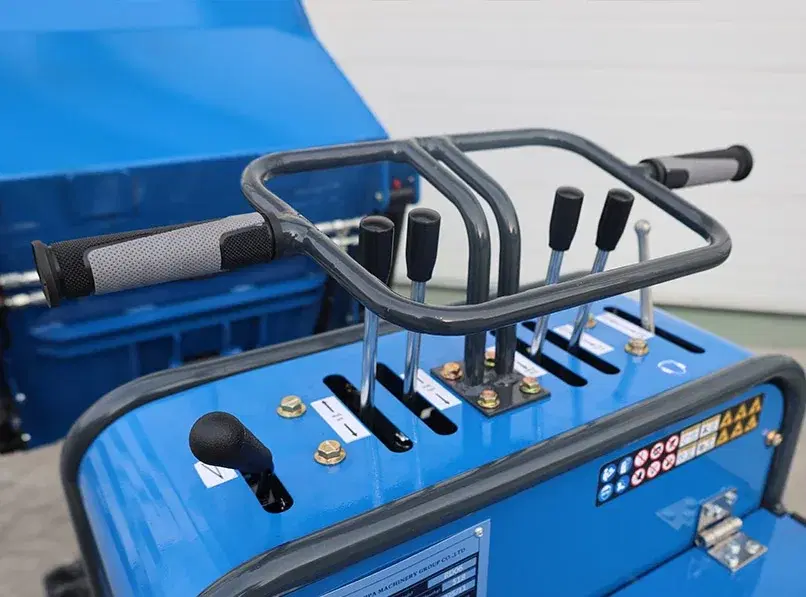

Ergonomic Multi-Lever Control Panel
The intuitive control panel features clearly arranged levers and an ergonomic handle design, enabling precise operation, easy control, and reduced operator fatigue during long working hours.
Multipurpose Tool Carrier
Rippa RD06 Dump Truck is an ideal choice for export trade with its excellent performance, efficient operation design, diverse attachment selection and strong brand strength.
